Friwo 6 W AC/DC Adapter Interchangeable 7.5V dc Output, 800 mA
- RS Stock No.:
- 117-6606
- Mfr. Part No.:
- EDV1898108RS
- Brand:
- Friwo
Bulk discount available
Subtotal (1 unit)*
£27.03
(exc. VAT)
£32.44
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 30 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £27.03 |
| 5 - 9 | £26.21 |
| 10 - 24 | £25.40 |
| 25 - 49 | £24.60 |
| 50 + | £23.78 |
*price indicative
- RS Stock No.:
- 117-6606
- Mfr. Part No.:
- EDV1898108RS
- Brand:
- Friwo
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Friwo | |
| Product Type | AC/DC Adapter | |
| Plug Type | Interchangeable | |
| Output Voltage | 7.5V dc | |
| Output Connector Type | Interchangeable | |
| Power | 6W | |
| Cable Length | 58mm | |
| Number of Outputs | 1 | |
| Minimum Operating Temperature | 0°C | |
| Input Connector Type | Universal Plug | |
| Adapter Current | 800mA | |
| Maximum Operating Temperature | 45°C | |
| Width | 41mm | |
| Depth | 41mm | |
| Length | 58mm | |
| Standards/Approvals | cULus, EN 55022, EN 55024, EN EC22, IEC 60065, IEC 60335-1, IEC 60950, PSE, SIQ, CE | |
| Efficiency | 80% | |
| Energy Efficiency Level | VI | |
| Minimum Input Voltage | 100V ac | |
| Series | FW8002 | |
| Select all | ||
|---|---|---|
Brand Friwo | ||
Product Type AC/DC Adapter | ||
Plug Type Interchangeable | ||
Output Voltage 7.5V dc | ||
Output Connector Type Interchangeable | ||
Power 6W | ||
Cable Length 58mm | ||
Number of Outputs 1 | ||
Minimum Operating Temperature 0°C | ||
Input Connector Type Universal Plug | ||
Adapter Current 800mA | ||
Maximum Operating Temperature 45°C | ||
Width 41mm | ||
Depth 41mm | ||
Length 58mm | ||
Standards/Approvals cULus, EN 55022, EN 55024, EN EC22, IEC 60065, IEC 60335-1, IEC 60950, PSE, SIQ, CE | ||
Efficiency 80% | ||
Energy Efficiency Level VI | ||
Minimum Input Voltage 100V ac | ||
Series FW8002 | ||

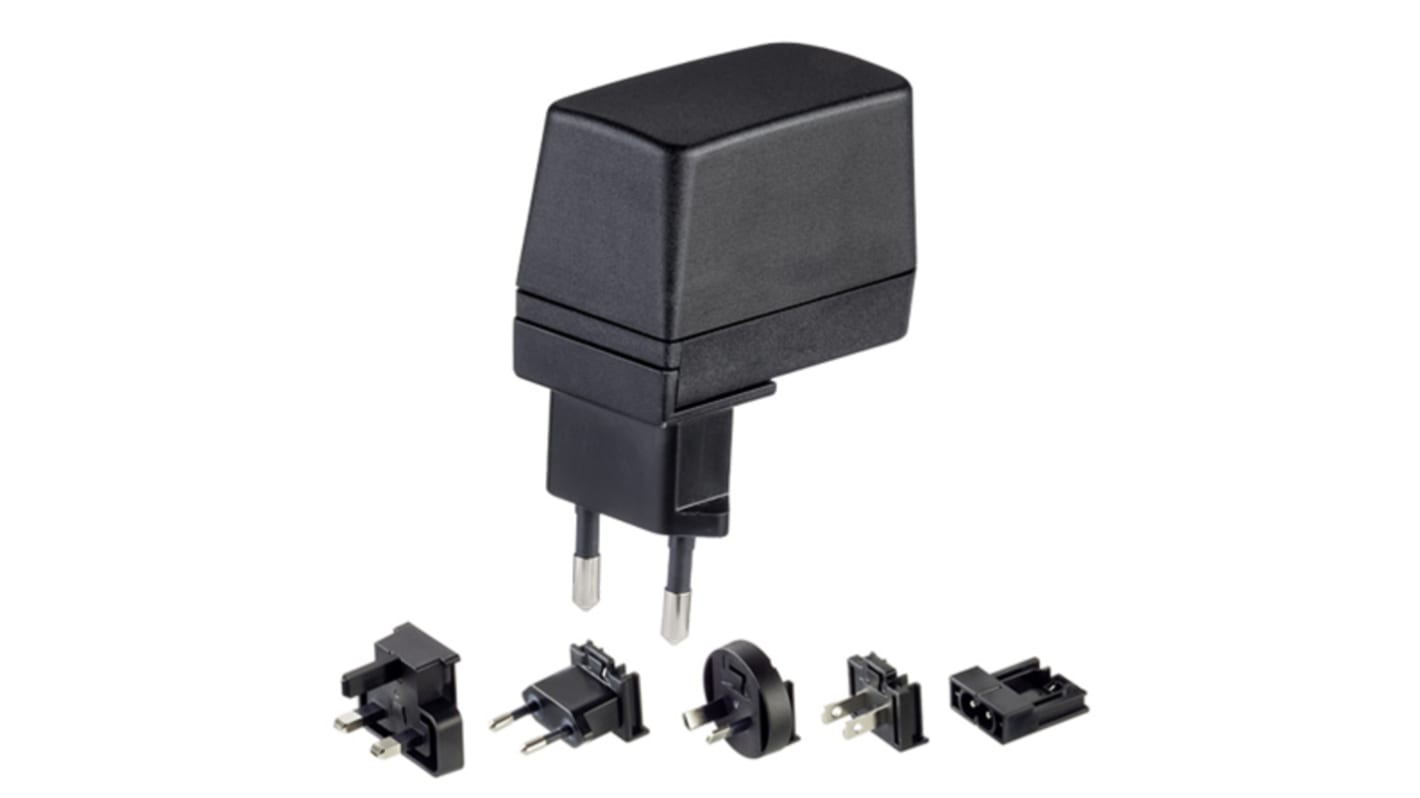

Friwo FOX Series Global Plug In Power Adapter
Friwo FOX series of power supplies are a meticulously designed range designed to meet Department of Energy level VI requirements. The Friwo FOX range offers a range of output voltages ranging from 5 to 48 V dc, and is compatible with the FOX interchangeable plug system. Power consumption while idle is low, and the running efficiency offers some of the highest in it's class.
The Friwo FOX series comes equipped with industry standard protection features, such as short circuit, overload & overvoltage.
Supplied with 4 interchangeable mains plugs for use in UK, Europe, USA, Japan and Australia.
Features and Benefits
Voltage outputs available from 5 to 48 V dc.
USB output options available.
Interchangeable plug system allows for flexibility.
Medical rated options available, to adhere to 2 x MOPP.
Meets energy efficiency standards DOE Level VI & ErP Level V.
Friwo's partial potting technology within the FOX series provides a cost-effective sealed unit.
Switch Mode - Friwo
Standards
IEC/EN/UL 60950, IEC/EN/ ANSI/AAMI ES60601
Supplied with
A set of 7 output connectors
