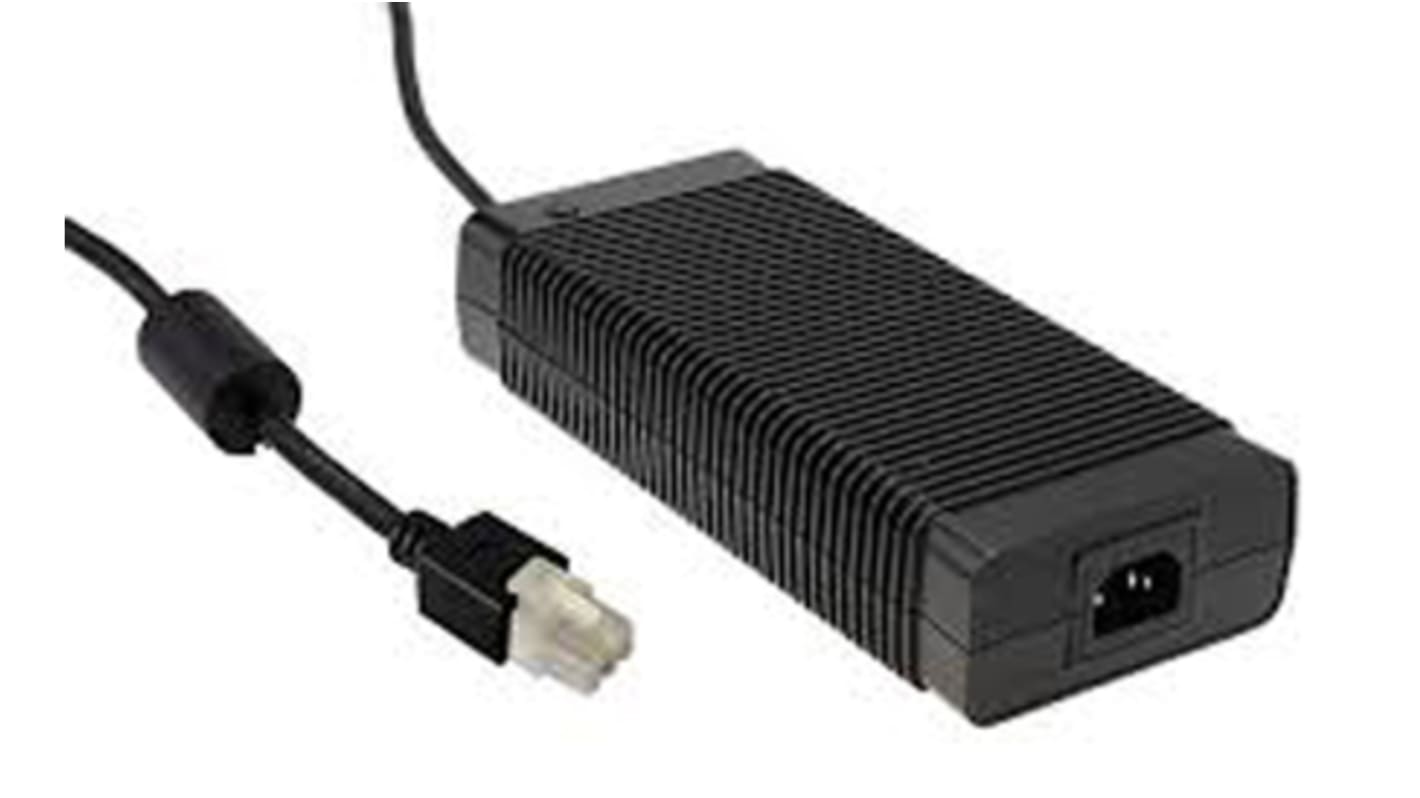

MEAN WELL 280.32W Power Brick AC/DC Adapter 48V dc Output, 0 → 5.84A Output

View all AC/DC Adapters

Subtotal (1 unit)*

£55.55

(exc. VAT)

£66.66

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 89 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£55.55

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
117-6163
Distrelec Article No.:
300-42-785
Mfr. Part No.:
GST280A48-C6P
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Adapter Type

Power Brick Adapter

Output Voltage

48V dc

Input Voltage

80 → 264V ac

Output Current

0 → 5.84A

Maximum Temperature

+70°C

Output Connector

DC Plug

Input Connector

IEC 320-C14

Number of Outputs

1

Power Rating

280.32W

Cable Length

1000mm

Better World Product

Yes

Efficiency

94%

Better World Verification

UL Energy Verified

MTBF

181.24kh

Length

220mm

Load Regulation

-2 → +2%

Series

GST280A

Energy Efficiency Level

VI

Depth

46mm

Width

95mm

Minimum Temperature

-30°C

Line Regulation Range

-1 → +1%

Mean Well Desktop Power Supply


The Mean well GST280A series desktop power supply is the latest invention with a high-quality adapter and a voltage rating of 48VDC. It provides 280.32W of continuous output power in a high-quality, compact enclosure suitable for many general power applications. It has an input frequency range from 47Hz to 63Hz. While the input voltage rating ranging from 85VAC to 264VAC/120VDC to 370VDC, its maximum leakage input current is 1.5A. This product is equipped with a 3-pin standard IEC320-C14 power plug. This power supply boasts an efficiency rating of up to 94.5%, coupled with an extremely low no-load consumption rating of below 0.15W.

Features and Benefits


Output current is 5.84A
Level VI energy efficiency rating
Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards
Equipped with industry standard protection, such as short-circuit, overload, over voltage and over temperature
LED indication of power status
Working temperature ranges between -30°C and 70°C

Applications


Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipment

Certifications


EISA 2007 / DoE
NRCan
AU/NZ MEPS
EU ErP
CoC V.5EN55022 class B
EN55022 class B
EN61000-3-2,3
FCC PART 15 / CISPR22 class B
CNS13438 class B
GB9254
GB17625.1
EN61000-4-2,3,4,5,6,8,11
Light industry level, criteria A
