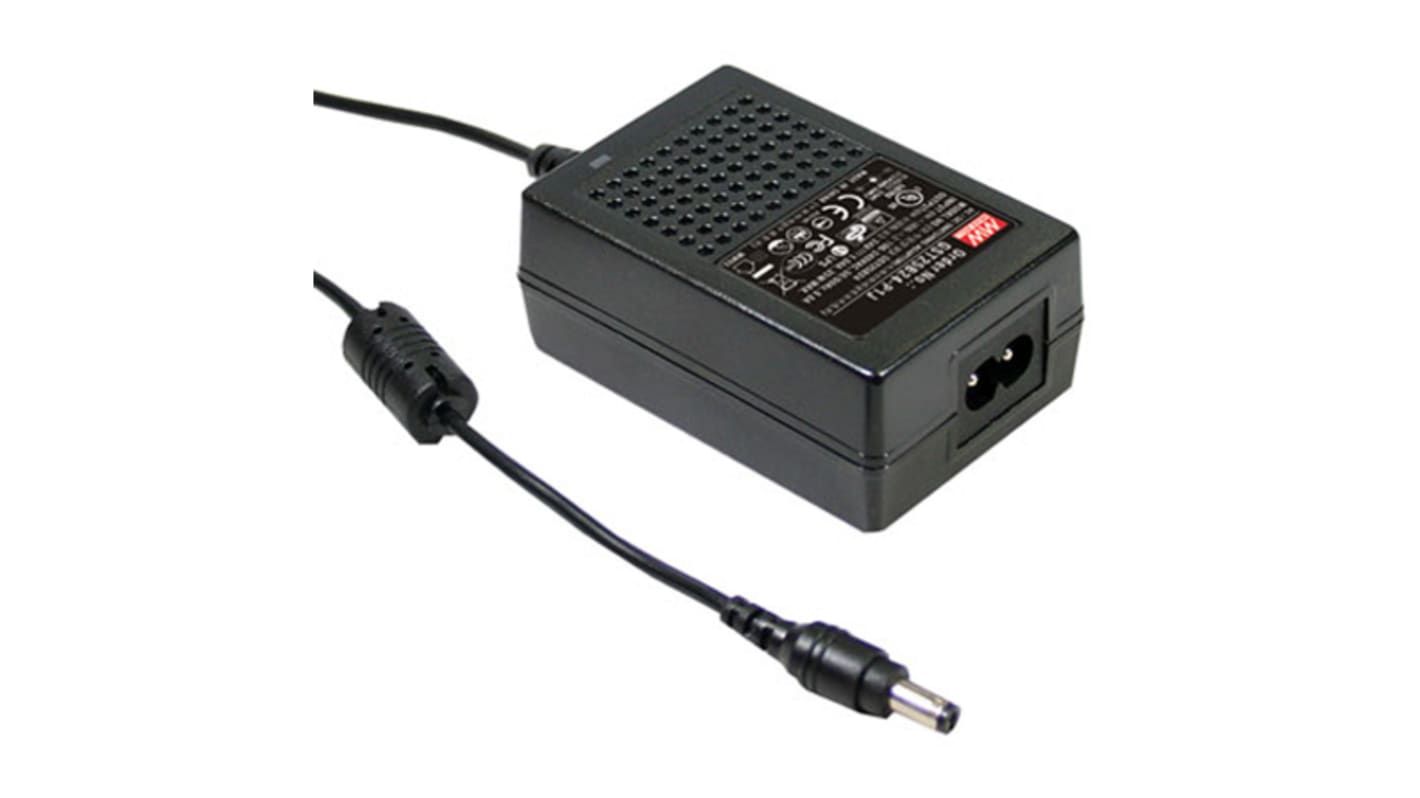

MEAN WELL 25W Power Brick AC/DC Adapter 28V dc Output, 0 → 0.89A Output
- RS Stock No.:
- 117-6142
- Mfr. Part No.:
- GST25B28-P1J
- Brand:
- MEAN WELL
4 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£17.34
(exc. VAT)
£20.81
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £17.34 |
| 5 - 9 | £16.49 |
| 10 - 24 | £15.59 |
| 25 - 49 | £14.74 |
| 50 + | £14.26 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 117-6142
- Mfr. Part No.:
- GST25B28-P1J
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details
Mean Well GST25B Series Desktop Power Supply
Mean Well GST25B series of industrial 25 W power supplies offer a highly reliable desktop styled solution to a wide variety of power management solutions. The GST25B series comes equipped with a 2 pole IEC320-C8 AC inlet, allowing for an input range of 85 V ac to 264 V ac. This series of power supplies boast an efficiency rating of up to 89%, coupled with an extremely low no-load consumption rating of below 0.075 W.
The Mean Well GST25B series is a series of power supplies well suited for both consumer & industrial power solutions.
The Mean Well GST25B series is a series of power supplies well suited for both consumer & industrial power solutions.
Features and Benefits
•Level VI energy efficiency rating.
•2 pole AC inlet IEC320-C8.
•Class 2 power without earth pin.
•Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards.
•Equipped with industry standard protection, such as short circuit, overload & over voltage.
•LED indication of power status.
Typical Applications
•Industrial equipment.
•Telecoms devices.
•Office facilities.
•Consumer electronic devices.
•Level VI energy efficiency rating.
•2 pole AC inlet IEC320-C8.
•Class 2 power without earth pin.
•Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards.
•Equipped with industry standard protection, such as short circuit, overload & over voltage.
•LED indication of power status.
Typical Applications
•Industrial equipment.
•Telecoms devices.
•Office facilities.
•Consumer electronic devices.
Standards
EISA 2007 / DoE, NRCan, AU/NZ MEPS, EU ErP & CoC V.5.
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Power Brick Adapter |
| Output Voltage | 28V dc |
| Input Voltage | 80 → 264V ac |
| Output Current | 0 → 0.89A |
| Maximum Temperature | +70°C |
| Output Connector | DC Plug |
| Input Connector | IEC 320-C8 |
| Number of Outputs | 1 |
| Power Rating | 25W |
| Cable Length | 1800mm |
| Standards Met | AS/NZS 60950.1, AU/NZ MEPS, BSMI CNS14336, CAN ICES-3(B)/NMB-3(B), CB, CCC, CCC GB4943, CE, CNS13438 class B, CoC Version 5, CSA C22.2, cUL Listed, cULus Listed, EISA 20007/DoE, EN 55022 class B EN 61000-3-2,3, EN 61000-4-2,3,4,5,6,8,11, EU ErP, FC, FCC Part 15/CISPR22 class B, GB17625.1, GB9254, GS, IEC 320-C8, MIL-HDBK-217F, NRCan, PSE, TUV EN 60950-1, TUV Rheinland Certified, UL 60950-1, VI |
| Better World Verification | UL Energy Verified |
| Better World Product | Yes |
| Efficiency | 88% |
| MTBF | 500kh |
| Length | 79mm |
| Series | GST25B |
| Energy Efficiency Level | VI |
| Line Regulation Range | -1 → +1% |
| Load Regulation | -2 → +2% |
| Minimum Temperature | -30°C |
| Width | 54mm |
| Depth | 33mm |
