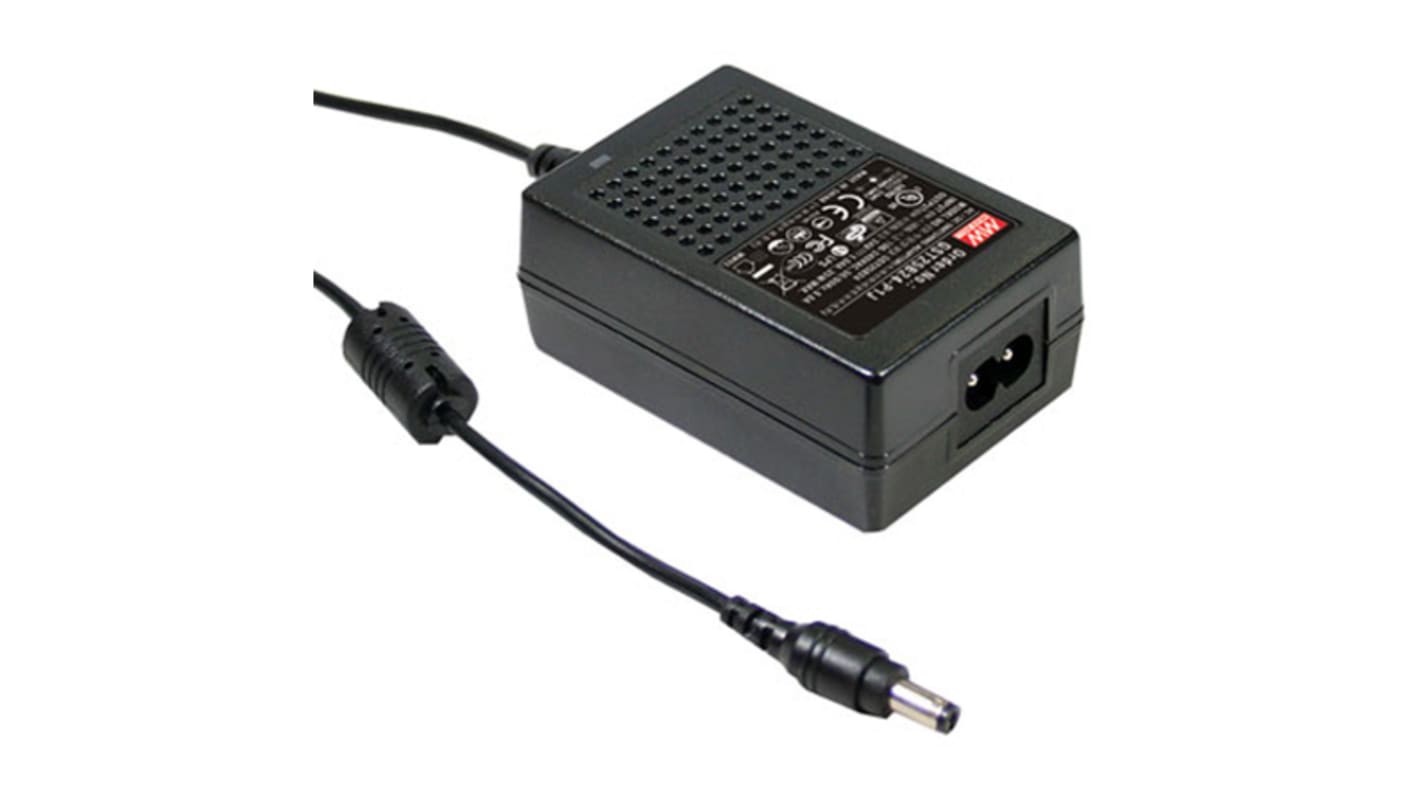

MEAN WELL 25W Power Brick AC/DC Adapter 24V dc Output, 0 → 1.04A Output
- RS Stock No.:
- 117-6141
- Distrelec Article No.:
- 300-42-769
- Mfr. Part No.:
- GST25B24-P1J
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£21.24
(exc. VAT)
£25.49
(inc. VAT)
FREE delivery for orders over £50.00
- 65 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
- Plus 12 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 4 | £21.24 |
| 5 - 9 | £20.18 |
| 10 - 24 | £19.10 |
| 25 - 49 | £18.06 |
| 50 + | £17.46 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 117-6141
- Distrelec Article No.:
- 300-42-769
- Mfr. Part No.:
- GST25B24-P1J
- Brand:
- MEAN WELL
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Adapter Type | Power Brick Adapter | |
| Output Voltage | 24V dc | |
| Input Voltage | 80 → 264V ac | |
| Output Current | 0 → 1.04A | |
| Maximum Temperature | +70°C | |
| Output Connector | DC Plug | |
| Input Connector | IEC 320-C8 | |
| Number of Outputs | 1 | |
| Power Rating | 25W | |
| Cable Length | 1800mm | |
| MTBF | 500kh | |
| Standards Met | AS/NZS 60950.1, AU/NZ MEPS, BSMI CNS14336, CAN ICES-3(B)/NMB-3(B), CB, CCC, CCC GB4943, CE, CNS13438 class B, CoC Version 5, CSA C22.2, cUL Listed, cULus Listed, EISA 20007/DoE, EN 55022 class B EN 61000-3-2,3, EN 61000-4-2,3,4,5,6,8,11, EU ErP, FC, FCC Part 15/CISPR22 class B, GB17625.1, GB9254, GS, IEC 320-C8, MIL-HDBK-217F, NRCan, PSE, TUV EN 60950-1, TUV Rheinland Certified, UL 60950-1, VI | |
| Better World Verification | UL Energy Verified | |
| Better World Product | Yes | |
| Efficiency | 88% | |
| Energy Efficiency Level | VI | |
| Width | 54mm | |
| Minimum Temperature | -30°C | |
| Load Regulation | -2 → +2% | |
| Series | GST25B | |
| Length | 79mm | |
| Line Regulation Range | -1 → +1% | |
| Depth | 33mm | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Adapter Type Power Brick Adapter | ||
Output Voltage 24V dc | ||
Input Voltage 80 → 264V ac | ||
Output Current 0 → 1.04A | ||
Maximum Temperature +70°C | ||
Output Connector DC Plug | ||
Input Connector IEC 320-C8 | ||
Number of Outputs 1 | ||
Power Rating 25W | ||
Cable Length 1800mm | ||
MTBF 500kh | ||
Standards Met AS/NZS 60950.1, AU/NZ MEPS, BSMI CNS14336, CAN ICES-3(B)/NMB-3(B), CB, CCC, CCC GB4943, CE, CNS13438 class B, CoC Version 5, CSA C22.2, cUL Listed, cULus Listed, EISA 20007/DoE, EN 55022 class B EN 61000-3-2,3, EN 61000-4-2,3,4,5,6,8,11, EU ErP, FC, FCC Part 15/CISPR22 class B, GB17625.1, GB9254, GS, IEC 320-C8, MIL-HDBK-217F, NRCan, PSE, TUV EN 60950-1, TUV Rheinland Certified, UL 60950-1, VI | ||
Better World Verification UL Energy Verified | ||
Better World Product Yes | ||
Efficiency 88% | ||
Energy Efficiency Level VI | ||
Width 54mm | ||
Minimum Temperature -30°C | ||
Load Regulation -2 → +2% | ||
Series GST25B | ||
Length 79mm | ||
Line Regulation Range -1 → +1% | ||
Depth 33mm | ||
