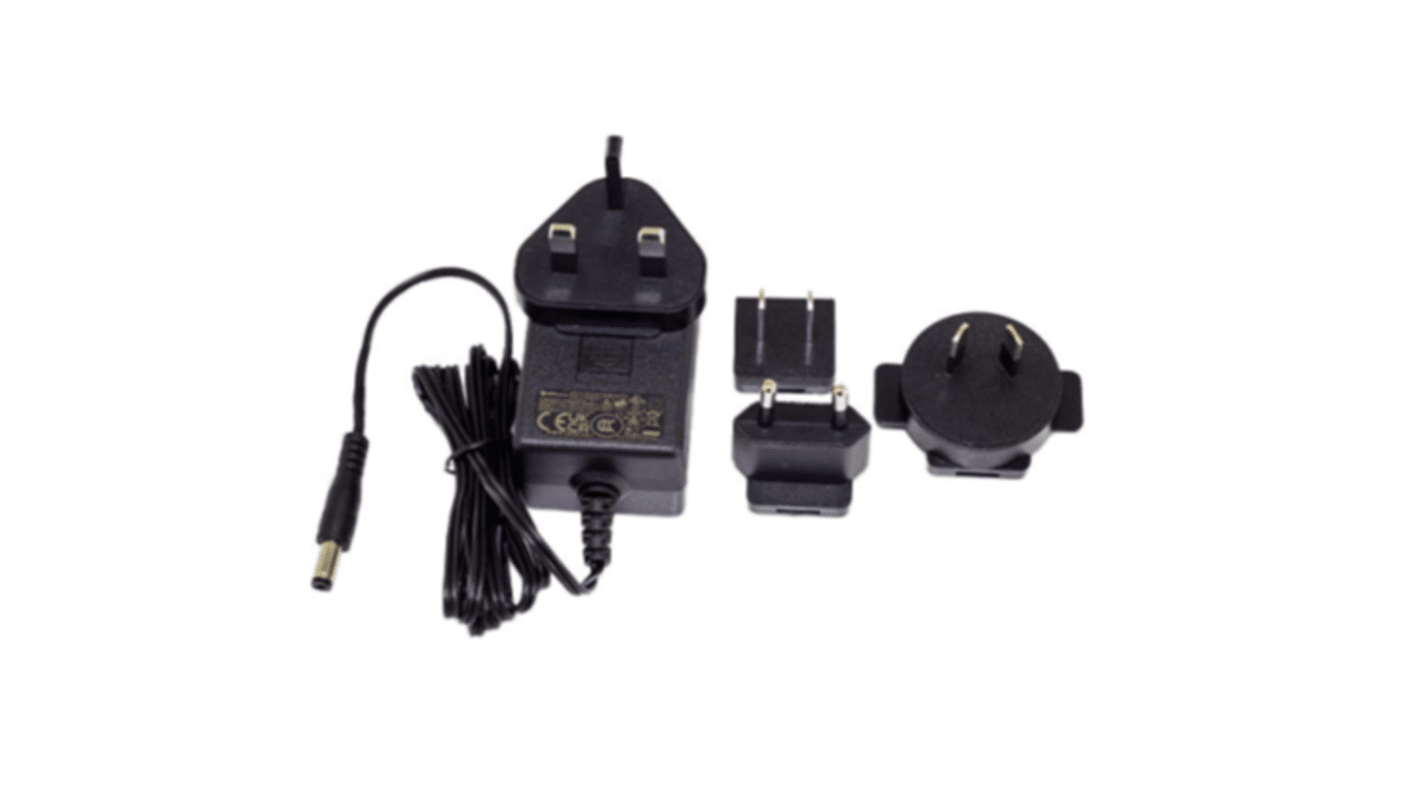

RS PRO 18 W Plug Adapter Interchangeable 24V dc, 5 V dc Output, 0.5 A

View all AC/DC Adapters

Subtotal (1 unit)*

£26.81

(exc. VAT)

£32.17

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 29 unit(s) ready to ship
  • Plus 20 unit(s) shipping from 11 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£26.81

*price indicative

RS Stock No.:
625-746
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Plug Adapter

Plug Type

Interchangeable

Output Voltage

24, 5V dc

Power

18W

Output Connector Type

2.1 x 5.5 x 11 mm DC Plug

Cable Length

1.5m

Number of Outputs

1

Adapter Current

0.5A

Minimum Operating Temperature

0°C

Input Connector Type

Interchangeable

Regulated/Unregulated

Regulated

Maximum Operating Temperature

40°C

Depth

36.2mm

Length

65.5mm

Standards/Approvals

ANSI-ESD S20.20:2021, CCC, CE, cULus, EN 55032, FCC, IEC-EN-UL 62368-1, RCM (C-Tick), RoHS, TUV-GS, UKCA

Efficiency

85%

Maximum Input Voltage

264V ac

Energy Efficiency Level

VI

Load Regulation

±5 %

Minimum Input Voltage

90V ac

COO (Country of Origin):
CN

Interchngbl Plugtop 100-240VAC 18VDC 1A


The RS Pro Interchangeable Plugtop Power Supply are primarily used in ITE, Audio and Video Industries. It is certified to UKCA, CE, TUV-GS, cULus, RCM, CCC, FCC, RoHS and EN 62368-1/IEC 62368-1/UL 62368-1 Standards and comply with (EU) 2019/1782, Level VI Efficiency Regulations. It offers over voltage protection, over current protection, over temperature protection and short circuit protection.

Input Voltage 90 to 264V AC

Meets Efficiency Level VI

Single Output 5 to 24V
