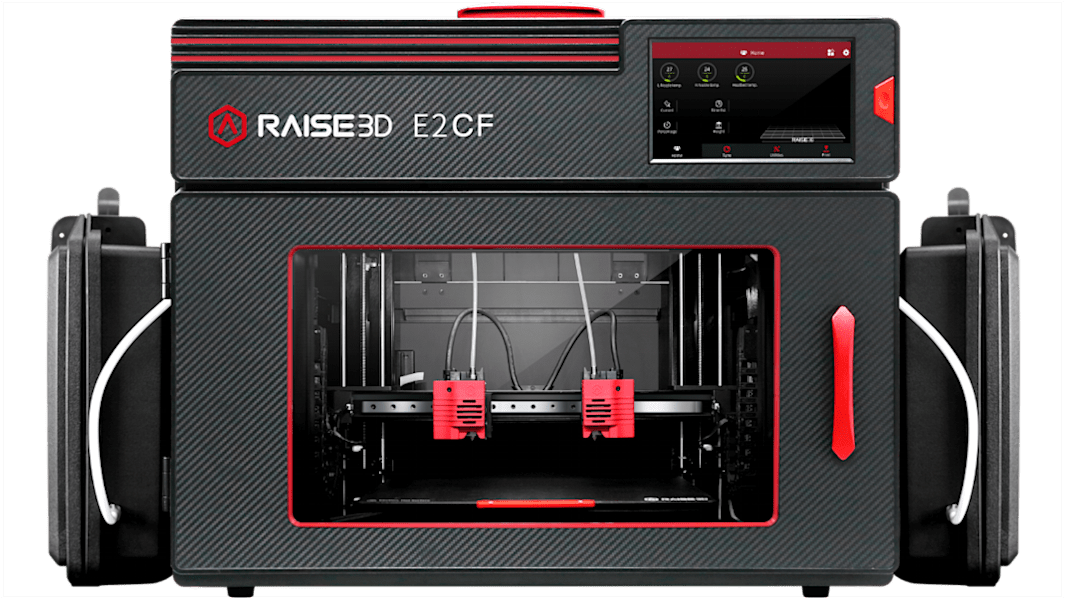

Raise3D E2CF 3D Printer Fused Filament Fabrication (FFF)
- RS Stock No.:
- 246-5662
- Mfr. Part No.:
- 1101000011
- Brand:
- Raise3D
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 246-5662
- Mfr. Part No.:
- 1101000011
- Brand:
- Raise3D
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Raise3D | |
| Compatible Materials | Polyamide Carbon Fibre, Polyphthalamide Support (Polyethylene Terephthalate Carbon Fibre/Polyphenylene Sulphide Carbon Fibre), Polyamide 12 Carbon Fibre, Polyphthalamide Fibreglass, Polyphthalamide Carbon Fibre | |
| Product Type | 3D Printer | |
| Architecture | Independent Dual EXtruder (IDEX) | |
| Build Volume | 330 x 240 x 240 mm | |
| Printing Technology | Fused Filament Fabrication (FFF) | |
| Number of Heads | 2 | |
| Model Number | E2CF | |
| Power Rating | 100kW | |
| Multi Material Printing | No | |
| Width | 596 mm | |
| Length | 607mm | |
| Filament Diameter | 1.75mm | |
| Wireless Connectivity | WiFi, Ethernet | |
| Connectivity | LAN, WiFi, USB Port | |
| Air Filtering | Yes | |
| Minimum Layer Height | 0.1mm | |
| Build Plate Material | Yes | |
| Height | 465mm | |
| Standards/Approvals | No | |
| Weight | 45.4kg | |
| Select all | ||
|---|---|---|
Brand Raise3D | ||
Compatible Materials Polyamide Carbon Fibre, Polyphthalamide Support (Polyethylene Terephthalate Carbon Fibre/Polyphenylene Sulphide Carbon Fibre), Polyamide 12 Carbon Fibre, Polyphthalamide Fibreglass, Polyphthalamide Carbon Fibre | ||
Product Type 3D Printer | ||
Architecture Independent Dual EXtruder (IDEX) | ||
Build Volume 330 x 240 x 240 mm | ||
Printing Technology Fused Filament Fabrication (FFF) | ||
Number of Heads 2 | ||
Model Number E2CF | ||
Power Rating 100kW | ||
Multi Material Printing No | ||
Width 596 mm | ||
Length 607mm | ||
Filament Diameter 1.75mm | ||
Wireless Connectivity WiFi, Ethernet | ||
Connectivity LAN, WiFi, USB Port | ||
Air Filtering Yes | ||
Minimum Layer Height 0.1mm | ||
Build Plate Material Yes | ||
Height 465mm | ||
Standards/Approvals No | ||
Weight 45.4kg | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Raise3D E2CF is an IDEX 3D printer optimized for 3D printing carbon fiber reinforced filaments. This desktop 3D printer is excellent for manufacturing, prototyping, and more.
Nozzles with high durability
Dual direct drive extrusion system
Sealed dry box
Idea maker slicing profiles
