Ultimaker S5 3D Printer

  • RS Stock No. 174-6243
  • Mfr. Part No. 202256
  • Brand Ultimaker
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): NL
Product Details

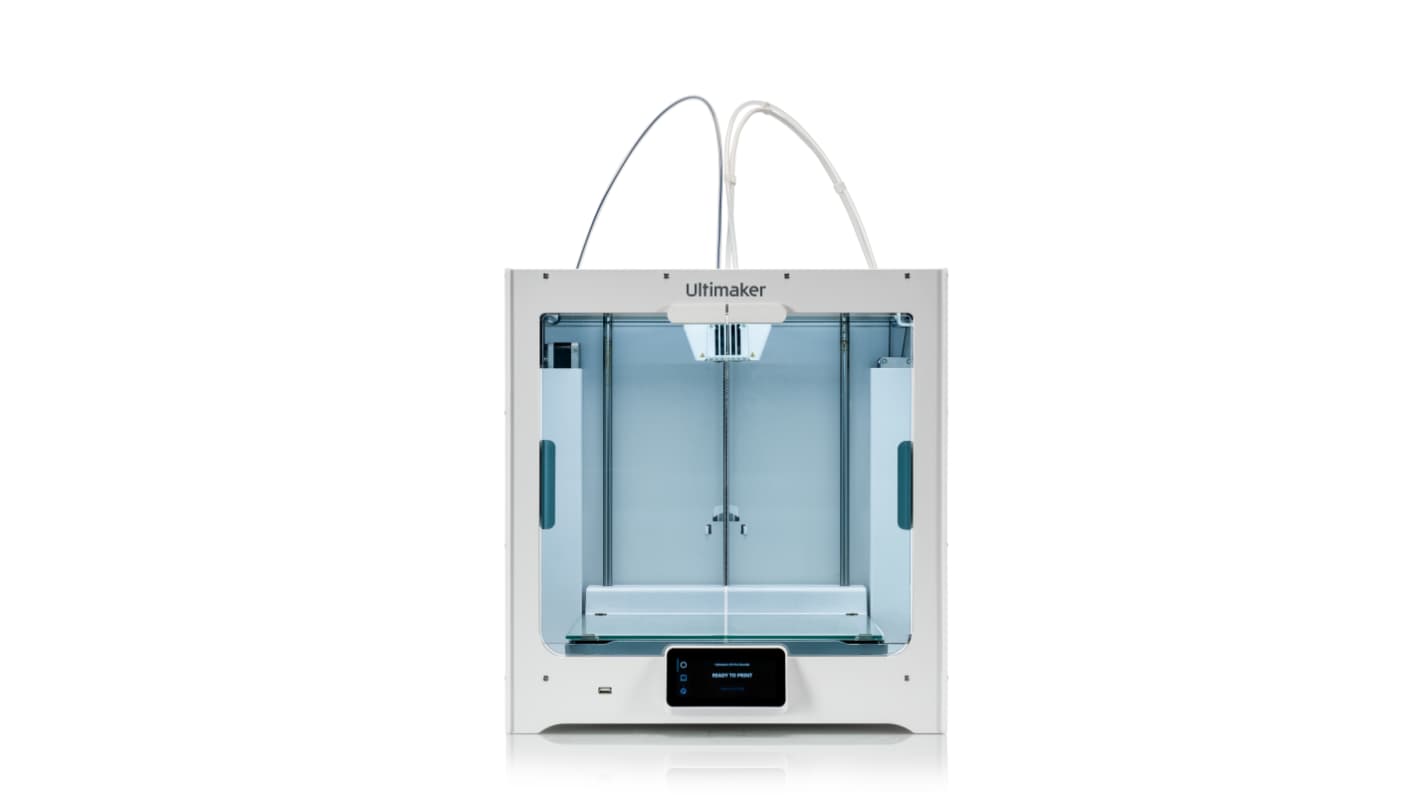

Ultimaker S5 - Powerful, reliable, versatile 3D printing

Discover the easy-to-use desktop 3D technology printer with a large build volume that delivers accurate, industrial-grade parts, time and again. All build in a high-end, and the latest design, portable printer from Ultimaker. With simple setup, high uptime, and reliable dual extrusion, Ultimaker S5 is the complete professional 3D printing solution.

With this 3D printer, you can meet a wide range of application and print everything from quick prototypes to complex, technical parts with a wide range of filaments and build support materials. And with an open filament system, you can also choose a custom material solution. 3D printing has never been so easy.

Features & Benefits:

• Active bed levelling ensures a perfect first layer, a closed front controls airflow, and a filament flow sensor will pause your print and notify you if you run out of material. You can trust in this printer and make sure that all printed products meet the highest industry standards.
• A build volume of 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches), combined with high-end, reliable dual extrusion and water-soluble support, gives even more freedom to realize your designs or print multiple parts in one go so you can meet demand with maximum efficiency, while fitting comfortably on your desk.
• With a unique print core design, swap nozzles in seconds to switch between build and support materials, or choose from 0.8, 0.4, or 0.25 mm print cores for fast or detailed prints. It's a perfect all-around desktop printer for a wide range of applications.
• A 4.7-inch (11.9 cm) touch display makes operating the 3D printer effortless, displaying visual guides to explain configuration changes and maintenance, plus a visual preview of your print.
• The Ultimaker S5 auto-detects material and print core configuration, while over-the-air firmware upgrades make adding the latest features simple. Print over Wi-Fi, Ethernet, or from a USB stick, and monitor progress via the built-in camera.
• Ultimaker materials are extensively tested to give the best results on the Ultimaker S5.
• Ultimaker Cura software comes with preconfigured rofiles, so you don’t need to spend time on complex slicing settings.

Approvals & Certification:

• CE

Supplied with:

• 750 g spool of Ultimaker Tough PLA
• 750 g spool of Ultimaker PVA
• Two swappable 0.4 AA print cores
• A swappable 0.4 BB print core
• Glass build plate
• Ethernet cable
• USB stick, glue stick, hex screwdriver, oil, and grease
• A calibration card and XY calibration sheets

The Ultimaker App (available for iOS and Android smartphones and tablets)

The Ultimaker app has been designed to monitor and control Ultimaker 3D printers from a mobile devices. It a smart addition to Ultimaker system allowing for easy integration with your printer.

The app lets you:
• Connect to and control printers on your Wi-Fi network
• Manage the print queue as you do in Cura Connect
• Leave the printer to do its job – check in on your print with the app
• Live notifications on print progress, even outside your local network

The Ultimaker Cura software (available for Windows, Linux and Mac OS platforms)

Ultimaker Cura prepares your model for 3D printing. Optimized, expert-tested profiles for 3D printers and materials mean you can start printing reliably in no time. And with industry-standard software integration, you can streamline your workflow for maximum efficiency.
Ultimaker Cura creates a seamless integration between your 3D printer, software and materials to achieve perfect prints every time.
• Cross-platform, open source software, available completely free of charge
• Print right away using recommended mode, or use custom mode to configure over 300 settings, for maximum control
• Expert-configured and road-tested profiles make hardware and material configuration simple and fast, and achieves reliable, professional results
• Out-of-the-box support for STL, OBJ, X3D, and 3MF file formats
• Add even more functionality with plugins for CAD software and optimized profiles for third-party materials
• Combine with Cura Connect to manage one or more network-enabled Ultimaker printers from a single interface

Attribute Value
Technology Fused Filament Fabrication (FFF)
Build Volume 330 x 240 x 300mm
Multi Material Printing Yes
Minimum Layer Height 0.02mm
Number of Heads 2
Dimensions L x W x H 495 x 585 x 780mm
Filament Diameter 2.85mm
Connectivity LAN, USB, Wi-Fi
Model Ultimaker S5
Weight 20.6kg
Wireless Yes
10 In stock for FREE next working day delivery
Price Each
£ 5,385.00
(exc. VAT)
£ 6,462.00
(inc. VAT)
Per unit
1 +
