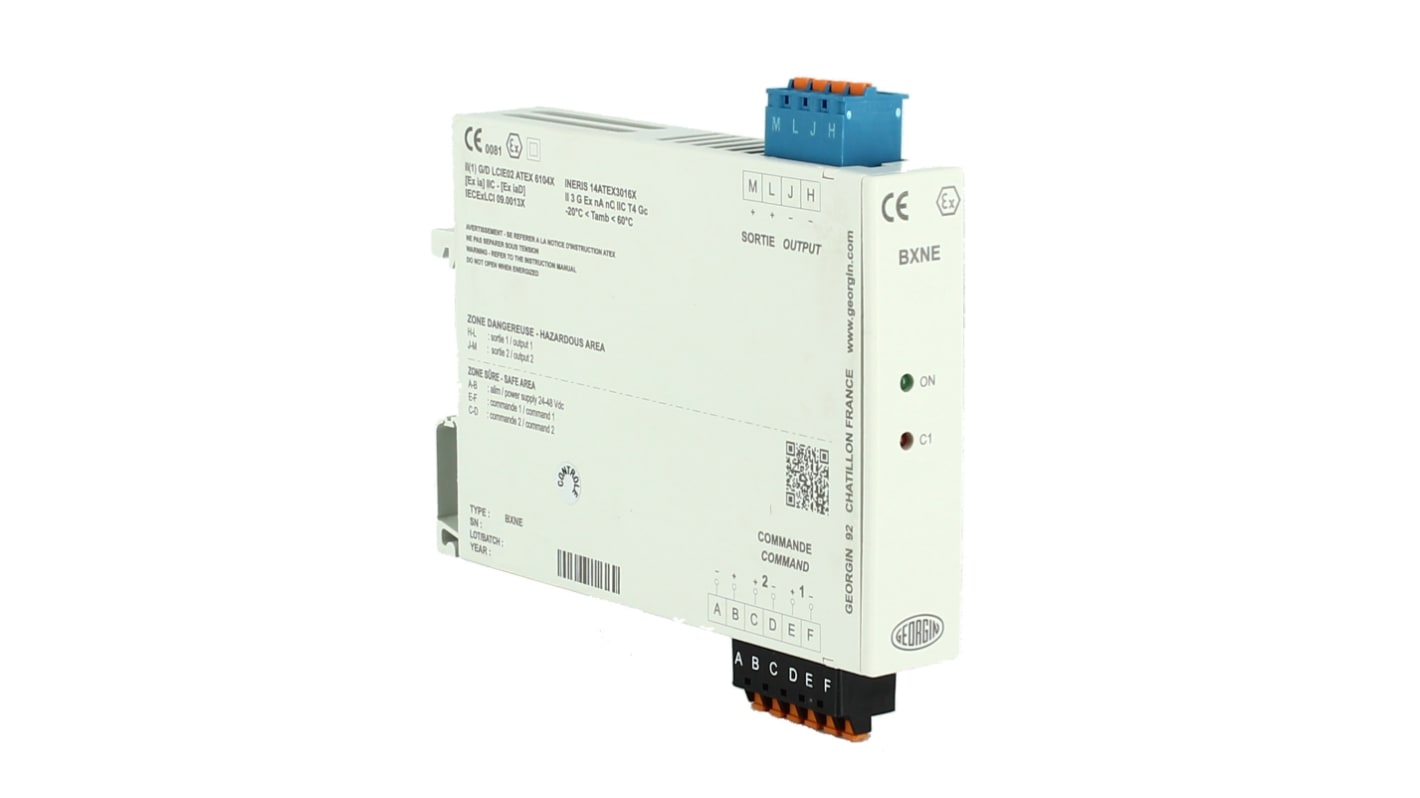

GEORGIN 2 Channel Intrinsic Security Power Supply, ATEX
- RS Stock No.:
- 229-9239
- Mfr. Part No.:
- BXNE411002
- Brand:
- GEORGIN
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 229-9239
- Mfr. Part No.:
- BXNE411002
- Brand:
- GEORGIN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | GEORGIN | |
| Product Type | Intrinsic Security Power Supply | |
| Number of Channels | 2 | |
| Barrier Type | Galvanic Barrier | |
| Mount Type | DIN Rail | |
| Hazardous Area Certification | ATEX | |
| Terminal Type | Plug-In Cage Clamp | |
| IP Rating | IP54 | |
| Maximum Safety Current | 170mA | |
| Maximum Safety Voltage | 2500V ac | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | EN/CEI 60079-0, EN 60079-15, EN/CEI 60079-11, EN 60079-0 | |
| Series | BXNE 4*-5*-6*-7* | |
| Select all | ||
|---|---|---|
Brand GEORGIN | ||
Product Type Intrinsic Security Power Supply | ||
Number of Channels 2 | ||
Barrier Type Galvanic Barrier | ||
Mount Type DIN Rail | ||
Hazardous Area Certification ATEX | ||
Terminal Type Plug-In Cage Clamp | ||
IP Rating IP54 | ||
Maximum Safety Current 170mA | ||
Maximum Safety Voltage 2500V ac | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals EN/CEI 60079-0, EN 60079-15, EN/CEI 60079-11, EN 60079-0 | ||
Series BXNE 4*-5*-6*-7* | ||
- COO (Country of Origin):
- FR
The GEORGIN galvanically insulated interface is an associated intrinsic safety item of equipment that is installed in a safe zone or in zone 2 in an IP 54 housing, thanks to the Ex nA protection mode. Its mission is to limit the level of energy that may appear in an electric circuit routed through a potentially explosive area, whatever the connection established upstream. In addition to its energy-limiting function, its facilitates the use of signals in safe areas (e.g., relays), converts signals (e.g., 4/20 mA to 0-10V) or duplicates signals. Other functions are also available, such as the threshold relay or powering intrinsic safety.
Intrinsic safe power supply
IS output: linear
LH/ U0=19.5V / I0=170mA / P0=1640mW
1 remote, control by 24V, 1 output
Option: without, clamp terminals
Power supply: 24/48 Vdc
DIN rail mounting housing
---------- ATEX / IECEx informations ----------
EC type examination certificate LCIE 02 ATEX 6104X
IECEx LCI 09.0013X certificate
[Ex ia] IIC (-20 °C < Ta < 60 °C)
Group II (surface) - category (1) G/D
Installation in safe zone
Barrier for equipment installed in zone 0,1,2 et 20,21,22
See leaflet for a safe use
