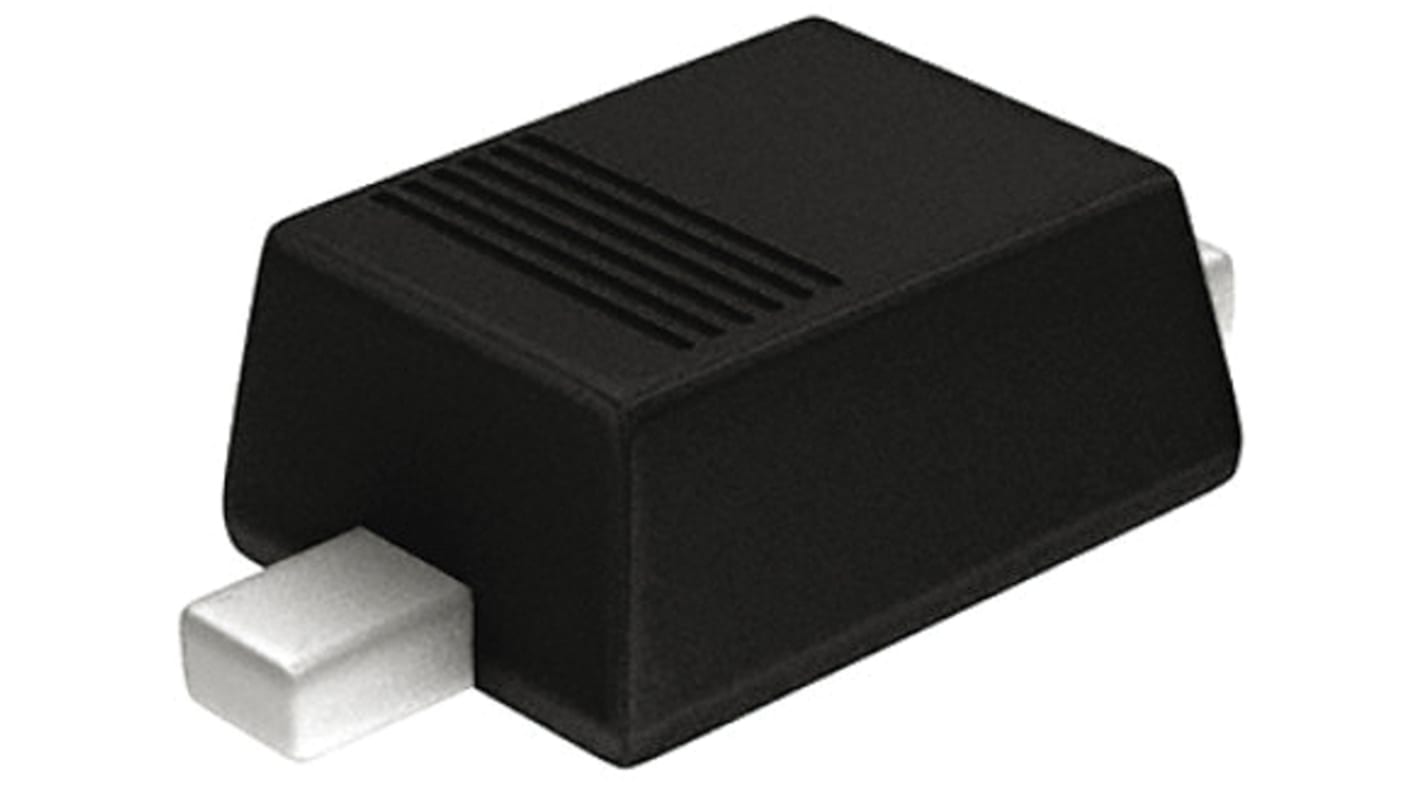

Vishay, 17.9V Zener Diode 500 mW SMT 2-Pin DO-219AC
- RS Stock No.:
- 894-9287P
- Mfr. Part No.:
- PLZ18C-G3/H
- Brand:
- Vishay
Bulk discount available
Subtotal 1000 units (supplied on a reel)*
£28.00
(exc. VAT)
£34.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,600 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1000 - 2400 | £0.028 |
| 2500 - 4900 | £0.028 |
| 5000 - 9900 | £0.027 |
| 10000 + | £0.026 |
*price indicative
- RS Stock No.:
- 894-9287P
- Mfr. Part No.:
- PLZ18C-G3/H
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Diode Configuration | Single | |
| Nominal Zener Voltage | 17.9V | |
| Number of Elements per Chip | 1 | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 500 mW | |
| Package Type | DO-219AC | |
| Zener Type | General Purpose | |
| Pin Count | 2 | |
| Test Current | 10mA | |
| Maximum Reverse Leakage Current | 200nA | |
| Dimensions | 1.9 x 1.3 x 0.6mm | |
| Maximum Operating Temperature | +150 °C | |
| Forward Voltage | 0.8V | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Diode Configuration Single | ||
Nominal Zener Voltage 17.9V | ||
Number of Elements per Chip 1 | ||
Mounting Type Surface Mount | ||
Maximum Power Dissipation 500 mW | ||
Package Type DO-219AC | ||
Zener Type General Purpose | ||
Pin Count 2 | ||
Test Current 10mA | ||
Maximum Reverse Leakage Current 200nA | ||
Dimensions 1.9 x 1.3 x 0.6mm | ||
Maximum Operating Temperature +150 °C | ||
Forward Voltage 0.8V | ||
- COO (Country of Origin):
- CN
Zener Diodes 500mW, PLZ Series, Vishay Semiconductor
The Vishay Semiconductor PLZ series of Zener Diodes features a maximum power dissipation of 500mW in a tiny MicroSMF (SOD-323FL) SMT package. These planar silicon zener diodes exhibit excellent stability with well-defined reverse breakdown characteristics and low leakage currents. They are able to withstand HBM 1500R/100pF ±8kV ESD pulses.
