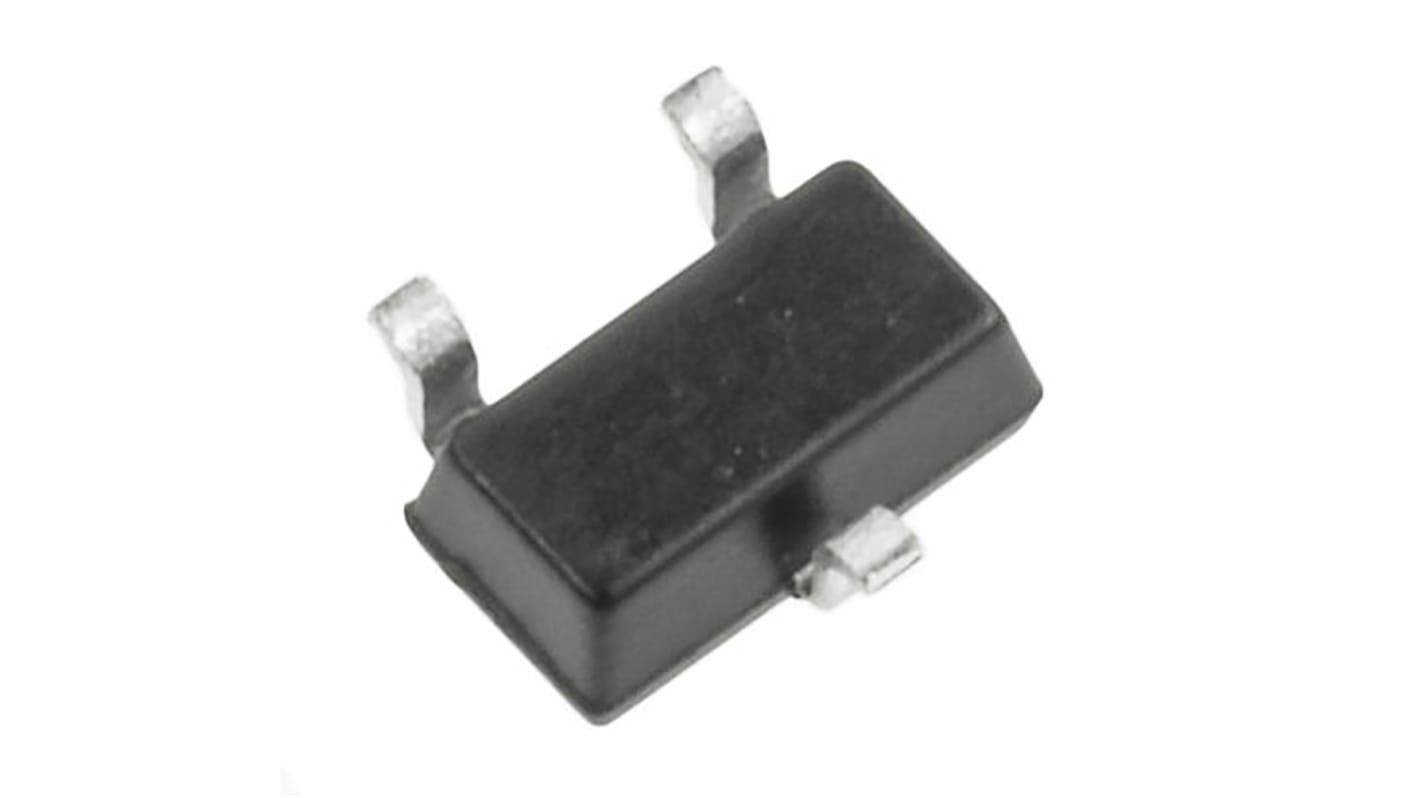

Diodes Inc, 3V Zener Diode 7% 200 mW SMT 3-Pin SOT-323
- RS Stock No.:
- 822-9038P
- Mfr. Part No.:
- BZX84C3V0W-7-F
- Brand:
- DiodesZetex
Bulk discount available
Subtotal 500 units (supplied on a reel)*
£22.50
(exc. VAT)
£27.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 500 unit(s) shipping from 06 October 2025
- Plus 999,999,400 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 500 - 900 | £0.045 |
| 1000 - 1400 | £0.041 |
| 1500 - 2900 | £0.039 |
| 3000 + | £0.027 |
*price indicative
- RS Stock No.:
- 822-9038P
- Mfr. Part No.:
- BZX84C3V0W-7-F
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Diode Configuration | Single | |
| Nominal Zener Voltage | 3V | |
| Mounting Type | Surface Mount | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation | 200 mW | |
| Package Type | SOT-323 (SC-70) | |
| Zener Type | General Purpose | |
| Zener Voltage Tolerance | 7% | |
| Pin Count | 3 | |
| Test Current | 5mA | |
| Maximum Zener Impedance | 95Ω | |
| Maximum Reverse Leakage Current | 20µA | |
| Dimensions | 2.2 x 1.35 x 1mm | |
| Maximum Operating Temperature | +125 °C | |
| Typical Voltage Temperature Coefficient | -3.5 → 0mV/°C | |
| Minimum Operating Temperature | -65 °C | |
Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Diode Configuration Single | ||
Nominal Zener Voltage 3V | ||
Mounting Type Surface Mount | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation 200 mW | ||
Package Type SOT-323 (SC-70) | ||
Zener Type General Purpose | ||
Zener Voltage Tolerance 7% | ||
Pin Count 3 | ||
Test Current 5mA | ||
Maximum Zener Impedance 95Ω | ||
Maximum Reverse Leakage Current 20µA | ||
Dimensions 2.2 x 1.35 x 1mm | ||
Maximum Operating Temperature +125 °C | ||
Typical Voltage Temperature Coefficient -3.5 → 0mV/°C | ||
Minimum Operating Temperature -65 °C | ||
Zener Diodes 200mW, BZX84C Series, Diodes Inc
Surface Mount case: SOT-363
Zener Diodes, Diodes Inc
