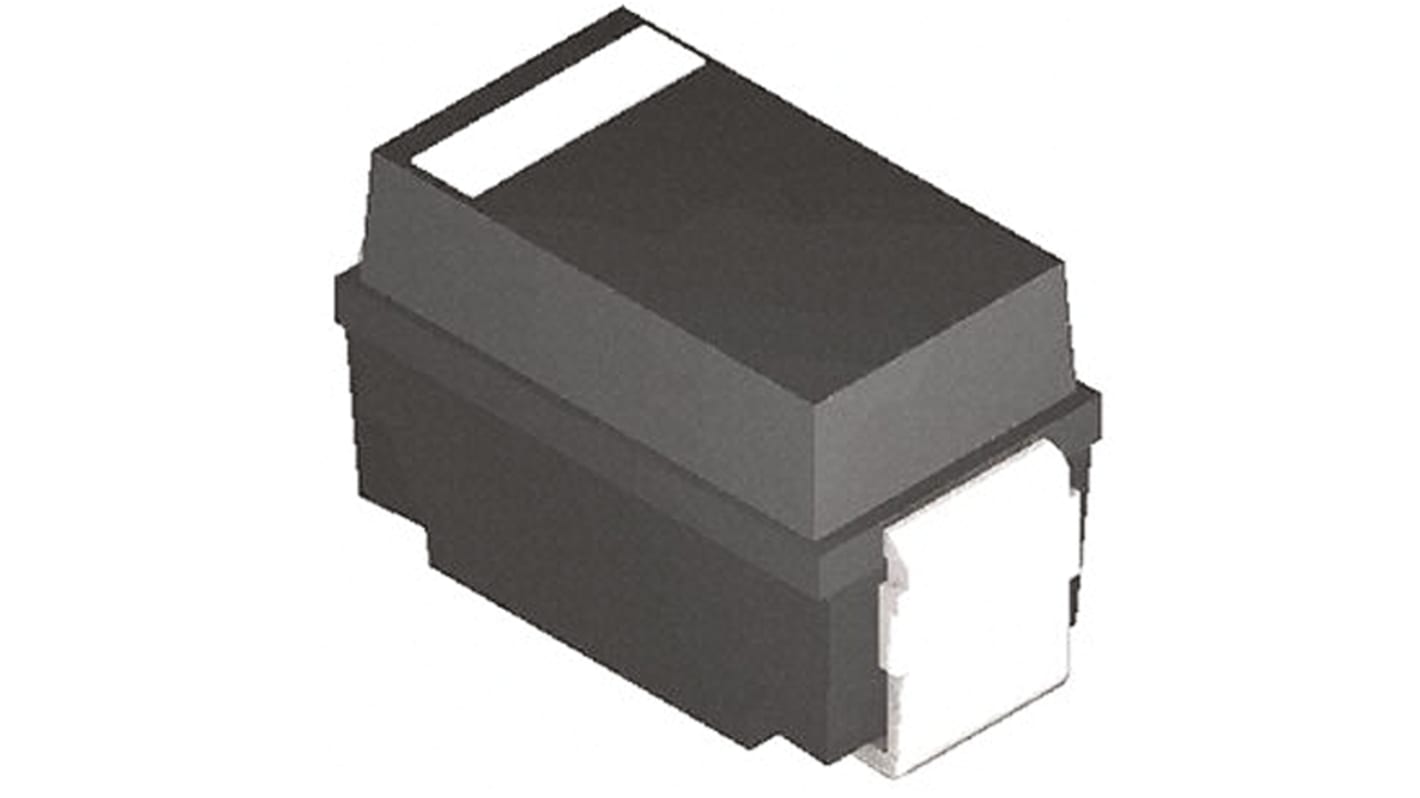

Vishay, 12V Zener Diode 5% 1 W SMT 2-Pin DO-214AC
- RS Stock No.:
- 819-3844
- Mfr. Part No.:
- SML4742A-E3/61
- Brand:
- Vishay
Available to back order for despatch 09/01/2025
Price Each (In a Pack of 20)
£0.085
(exc. VAT)
£0.102
(inc. VAT)
| Units | Per unit | Per Pack* |
| 20 + | £0.085 | £1.70 |
| *price indicative | ||
- RS Stock No.:
- 819-3844
- Mfr. Part No.:
- SML4742A-E3/61
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Zener Diodes 1W, SML47xxA Series, Vishay Semiconductor
Surface Mount Zener Diodes
Plastic package has underwriters laboratory (UL) flammability classification 94 V-0
For surface mounted applications
Low Zener impedance
Low regulation factor
AEC-Q101 qualified
Plastic package has underwriters laboratory (UL) flammability classification 94 V-0
For surface mounted applications
Low Zener impedance
Low regulation factor
AEC-Q101 qualified
Zener Diodes, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 12V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1 W |
| Package Type | DO-214AC (SMA) |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | 5% |
| Pin Count | 2 |
| Test Current | 21mA |
| Maximum Zener Impedance | 9Ω |
| Maximum Reverse Leakage Current | 5µA |
| Dimensions | 4.5 x 2.79 x 2.087mm |
| Maximum Operating Temperature | +150 °C |
