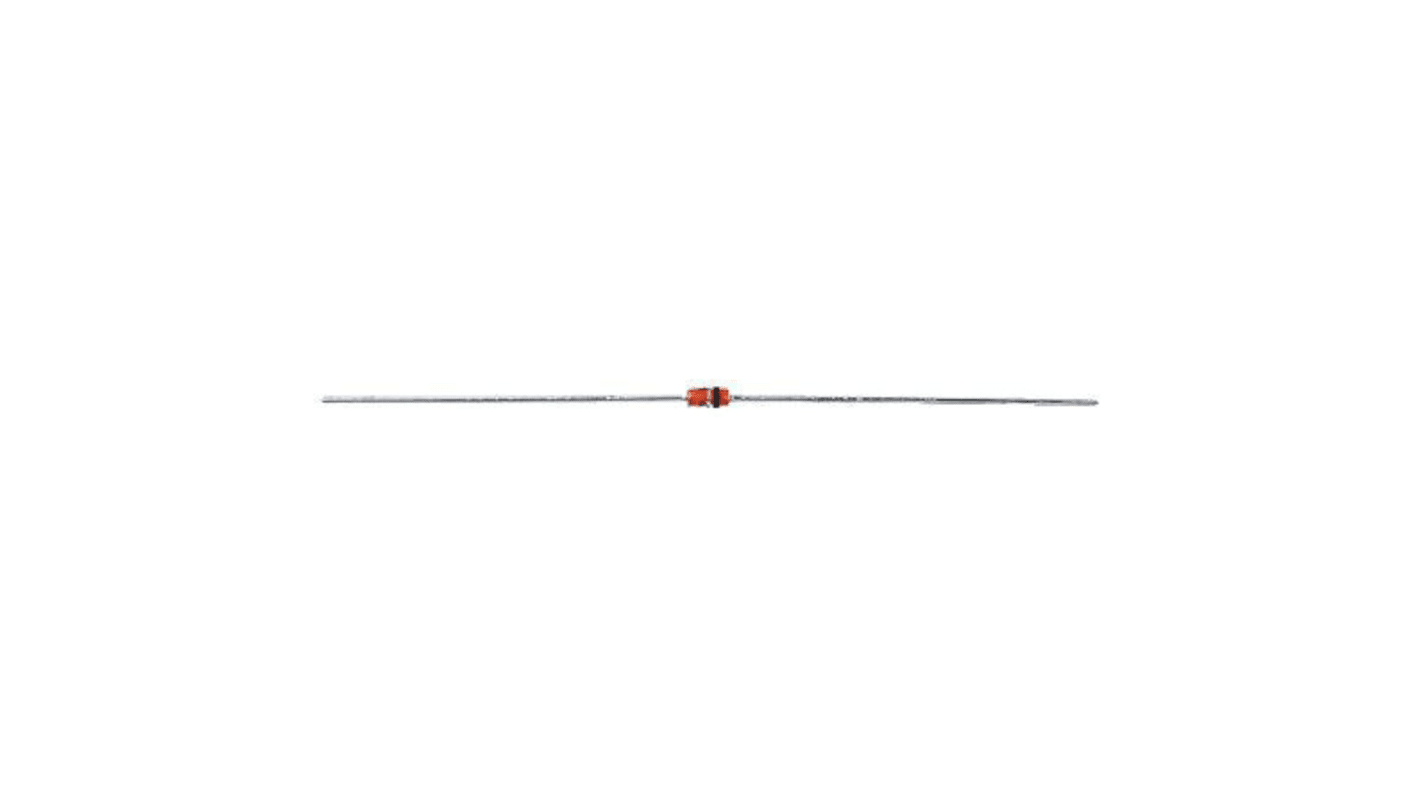

Vishay, 12V Zener Diode 2% 500 mW Through Hole 2-Pin DO-35
- RS Stock No.:
- 818-5584
- Mfr. Part No.:
- TZX12B-TR
- Brand:
- Vishay
800 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 200)
£0.084
(exc. VAT)
£0.101
(inc. VAT)
| Units | Per unit | Per Pack* |
| 200 - 800 | £0.084 | £16.80 |
| 1000 - 1800 | £0.083 | £16.60 |
| 2000 - 4800 | £0.038 | £7.60 |
| 5000 - 9800 | £0.034 | £6.80 |
| 10000 + | £0.03 | £6.00 |
| *price indicative | ||
- RS Stock No.:
- 818-5584
- Mfr. Part No.:
- TZX12B-TR
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Zener Diodes 500mW, TZX Series, Vishay Semiconductor
Small Signal Zener Diodes
Very sharp reverse characteristic
Low reverse current level
Very high stability
Low noise
AEC-Q101 qualified
Very sharp reverse characteristic
Low reverse current level
Very high stability
Low noise
AEC-Q101 qualified
Zener Diodes, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 12V |
| Diode Configuration | Single |
| Mounting Type | Through Hole |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 500 mW |
| Package Type | DO-35 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 2% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 35Ω |
| Maximum Reverse Leakage Current | 1µA |
| Dimensions | 1.7 (Dia.) x 3.9mm |
| Maximum Operating Temperature | +175 °C |
