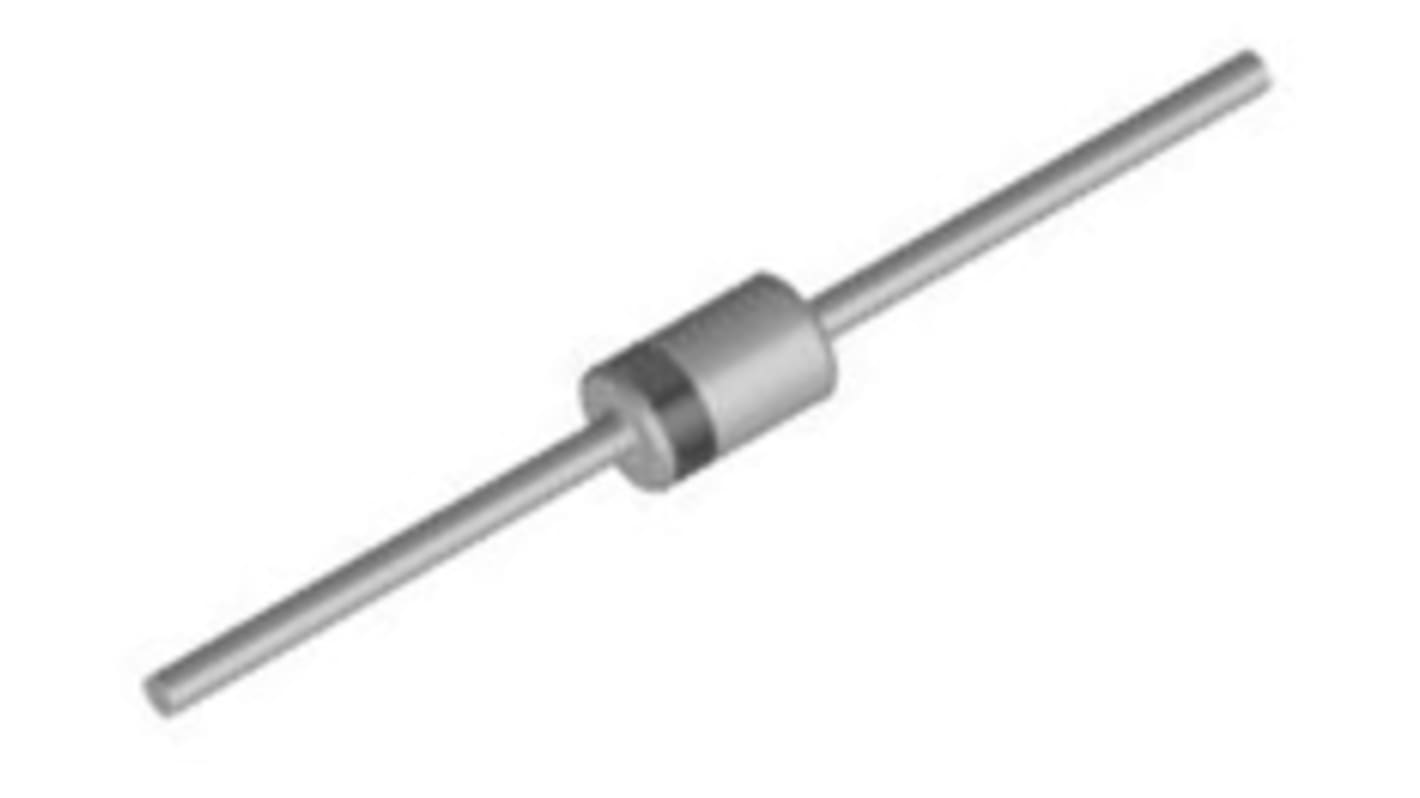

Vishay, 91V Zener Diode 6% 1.3 W Through Hole 2-Pin DO-41
RS Stock No.:
814-8759
Mfr. Part No.:
BZX85C91-TR
Brand:
Vishay
View all Zener Diodes
Discontinued product
RS Stock No.:
814-8759
Mfr. Part No.:
BZX85C91-TR
Brand:
Vishay
Technical Reference
Legislation and Compliance
Product Details
Specifications
BZX85-Series, Zener Diodes
RoHS Certificate of Compliance
Statement of conformity
COO (Country of Origin):
CN
Zener Diodes 1.3W, BZX85 Series, Vishay Semiconductor
Silicon planar power Zener diodes
Applications in stabilising and clipping circuits with high power rating
Zener Diodes, Vishay Semiconductor
Attribute
Value
Nominal Zener Voltage
91V
Diode Configuration
Single
Mounting Type
Through Hole
Number of Elements per Chip
1
Maximum Power Dissipation
1.3 W
Package Type
DO-41
Zener Type
General Purpose
Zener Voltage Tolerance
6%
Pin Count
2
Test Current
2.7mA
Maximum Zener Impedance
<250Ω
Maximum Reverse Leakage Current
<500nA
Dimensions
2.6 (Dia.) x 4.1mm
Typical Voltage Temperature Coefficient
0.095%/°C
Maximum Operating Temperature
+175 °C
