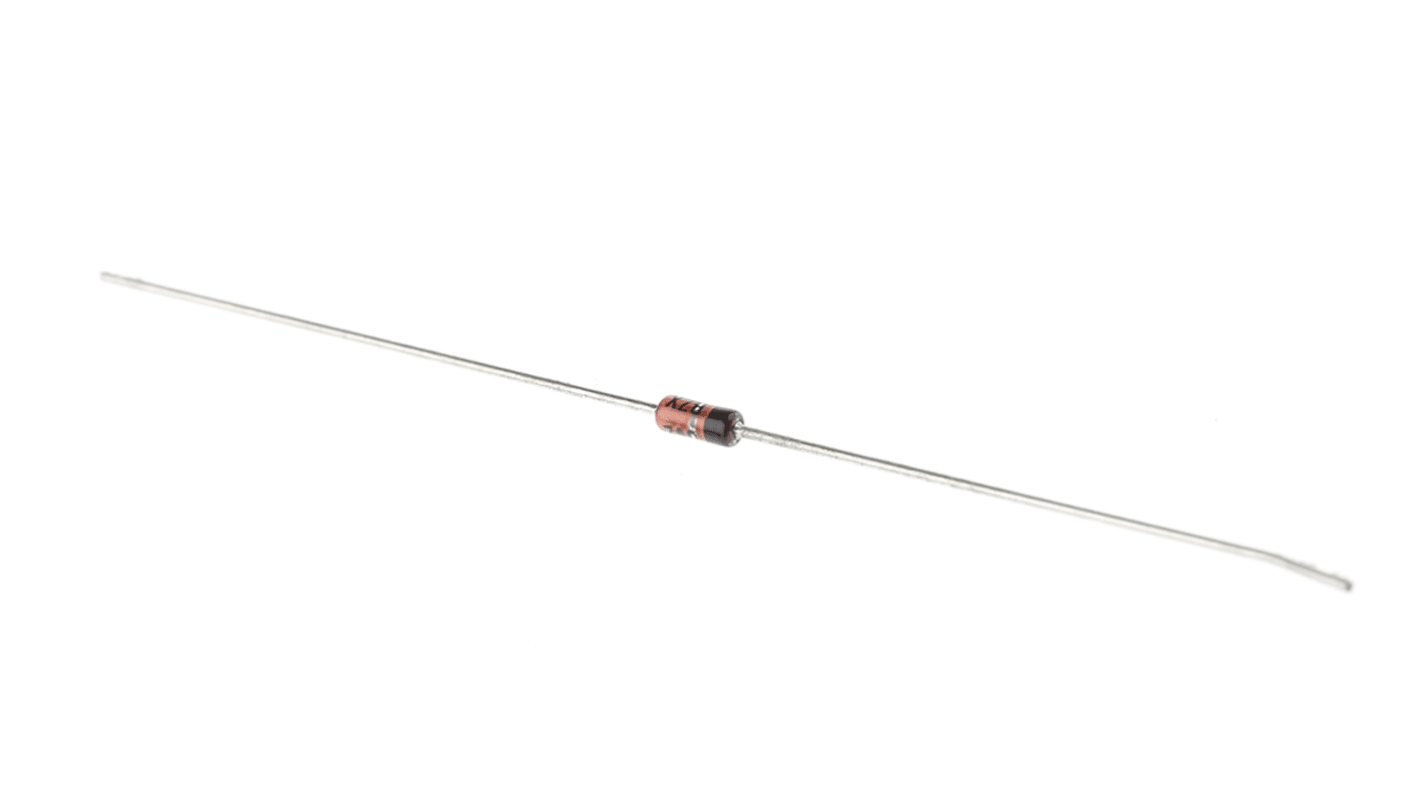

Vishay, 8.2V Zener Diode 6% 500 mW Through Hole 2-Pin DO-35
- RS Stock No.:
- 708-7899P
- Mfr. Part No.:
- BZX55C8V2-TAP
- Brand:
- Vishay
Bulk discount available
Subtotal 1250 units (supplied as a tape)*
£22.50
(exc. VAT)
£27.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 30,000 unit(s) shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1250 - 2250 | £0.018 |
| 2500 - 6000 | £0.018 |
| 6250 - 12250 | £0.017 |
| 12500 + | £0.017 |
*price indicative
- RS Stock No.:
- 708-7899P
- Mfr. Part No.:
- BZX55C8V2-TAP
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Nominal Zener Voltage | 8.2V | |
| Diode Configuration | Single | |
| Number of Elements per Chip | 1 | |
| Mounting Type | Through Hole | |
| Maximum Power Dissipation | 500 mW | |
| Package Type | DO-35 | |
| Zener Type | Voltage Regulator | |
| Zener Voltage Tolerance | 6% | |
| Pin Count | 2 | |
| Test Current | 5mA | |
| Maximum Zener Impedance | 7Ω | |
| Maximum Reverse Leakage Current | 100nA | |
| Dimensions | 3.9 x 1.7 x 1.7mm | |
| Typical Voltage Temperature Coefficient | 0.055%/°C | |
| Minimum Operating Temperature | -65 °C | |
| Maximum Operating Temperature | +175 °C | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Nominal Zener Voltage 8.2V | ||
Diode Configuration Single | ||
Number of Elements per Chip 1 | ||
Mounting Type Through Hole | ||
Maximum Power Dissipation 500 mW | ||
Package Type DO-35 | ||
Zener Type Voltage Regulator | ||
Zener Voltage Tolerance 6% | ||
Pin Count 2 | ||
Test Current 5mA | ||
Maximum Zener Impedance 7Ω | ||
Maximum Reverse Leakage Current 100nA | ||
Dimensions 3.9 x 1.7 x 1.7mm | ||
Typical Voltage Temperature Coefficient 0.055%/°C | ||
Minimum Operating Temperature -65 °C | ||
Maximum Operating Temperature +175 °C | ||
Zener Diodes 500mW, BZX55C Series, Vishay Semiconductor
Small Signal Zener Diodes
Very sharp reverse characteristic
Low reverse current level
Very high stability
Low noise
AEC-Q101 qualified
Very sharp reverse characteristic
Low reverse current level
Very high stability
Low noise
AEC-Q101 qualified
Zener Diodes, Vishay Semiconductor
