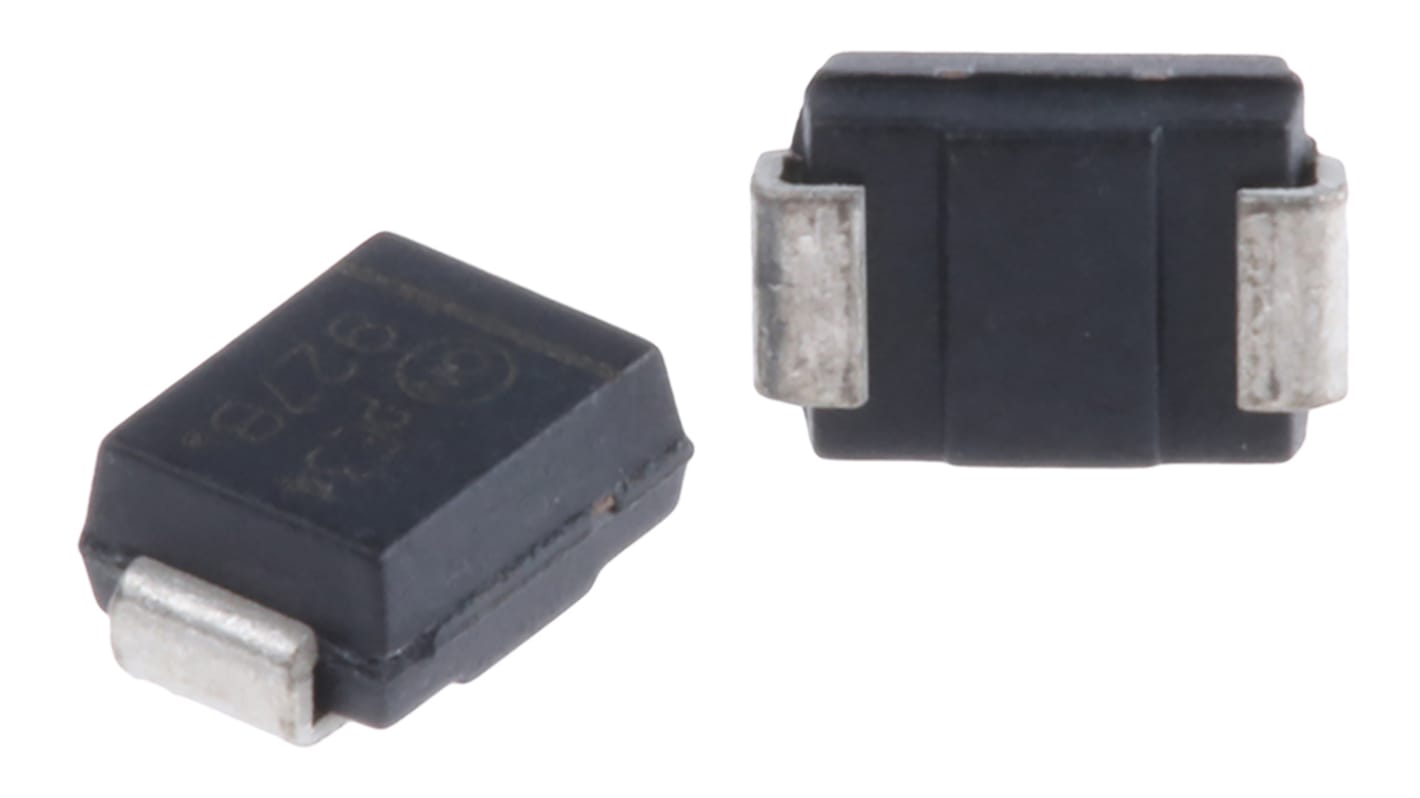

onsemi, 12V Zener Diode 5% 550 mW SMT 2-Pin SMB
- RS Stock No.:
- 545-3336P
- Mfr. Part No.:
- 1SMB5927BT3G
- Brand:
- onsemi
Bulk discount available
Subtotal 100 units (supplied on a reel)*. Quantities below 150 on continuous strip
£12.40
(exc. VAT)
£14.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,925 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 225 | £0.124 |
| 250 - 475 | £0.107 |
| 500 - 975 | £0.094 |
| 1000 + | £0.086 |
*price indicative
- RS Stock No.:
- 545-3336P
- Mfr. Part No.:
- 1SMB5927BT3G
- Brand:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Diode Configuration | Single | |
| Nominal Zener Voltage | 12V | |
| Mounting Type | Surface Mount | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation | 550 mW | |
| Package Type | SMB | |
| Zener Type | Voltage Regulator | |
| Zener Voltage Tolerance | 5% | |
| Pin Count | 2 | |
| Test Current | 31.2mA | |
| Maximum Zener Impedance | 6.5Ω | |
| Maximum Reverse Leakage Current | 1µA | |
| Dimensions | 4.32 x 3.56 x 2.13mm | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -65 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Diode Configuration Single | ||
Nominal Zener Voltage 12V | ||
Mounting Type Surface Mount | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation 550 mW | ||
Package Type SMB | ||
Zener Type Voltage Regulator | ||
Zener Voltage Tolerance 5% | ||
Pin Count 2 | ||
Test Current 31.2mA | ||
Maximum Zener Impedance 6.5Ω | ||
Maximum Reverse Leakage Current 1µA | ||
Dimensions 4.32 x 3.56 x 2.13mm | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -65 °C | ||
