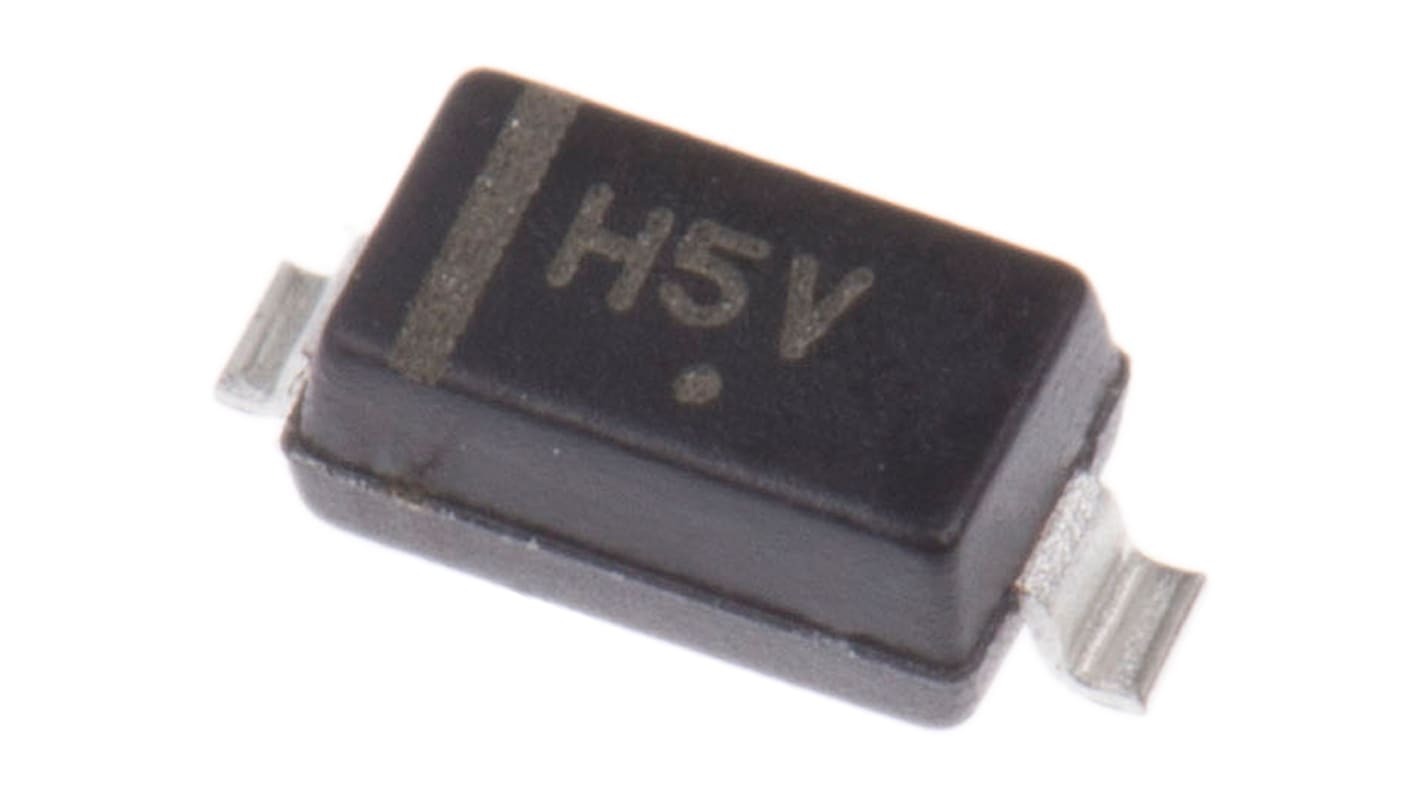

ON Semiconductor, 15V Zener Diode 5% 500 mW SMT 2-Pin SOD-123

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Zener Diodes 500mW, MMSZ52xxxT1G / SZMMSZ52xxxT1G Series, ON Semiconductor

Surface Mount case: SOD-123

ON Semiconductor zenor voltage regulator. These diodes provide an alternative to the leadless 34 package style. suitable for high-density applications.500 mW on FR-4 or FR-5 board, ESD rating of class 3

Applications

Industrial

Zener Diodes, ON Semiconductor

Specifications
Attribute Value
Nominal Zener Voltage 15V
Diode Configuration Single
Number of Elements per Chip 1
Mounting Type Surface Mount
Maximum Power Dissipation 500 mW
Package Type SOD-123
Zener Type Voltage Regulator
Zener Voltage Tolerance 5%
Pin Count 2
Test Current 8.5mA
Maximum Zener Impedance 16Ω
Maximum Reverse Leakage Current 100nA
Length 2.69mm
Width 1.6mm
Dimensions 2.69 x 1.6 x 1.12mm
Maximum Operating Temperature +150 °C
Height 1.12mm
Minimum Operating Temperature -55 °C
