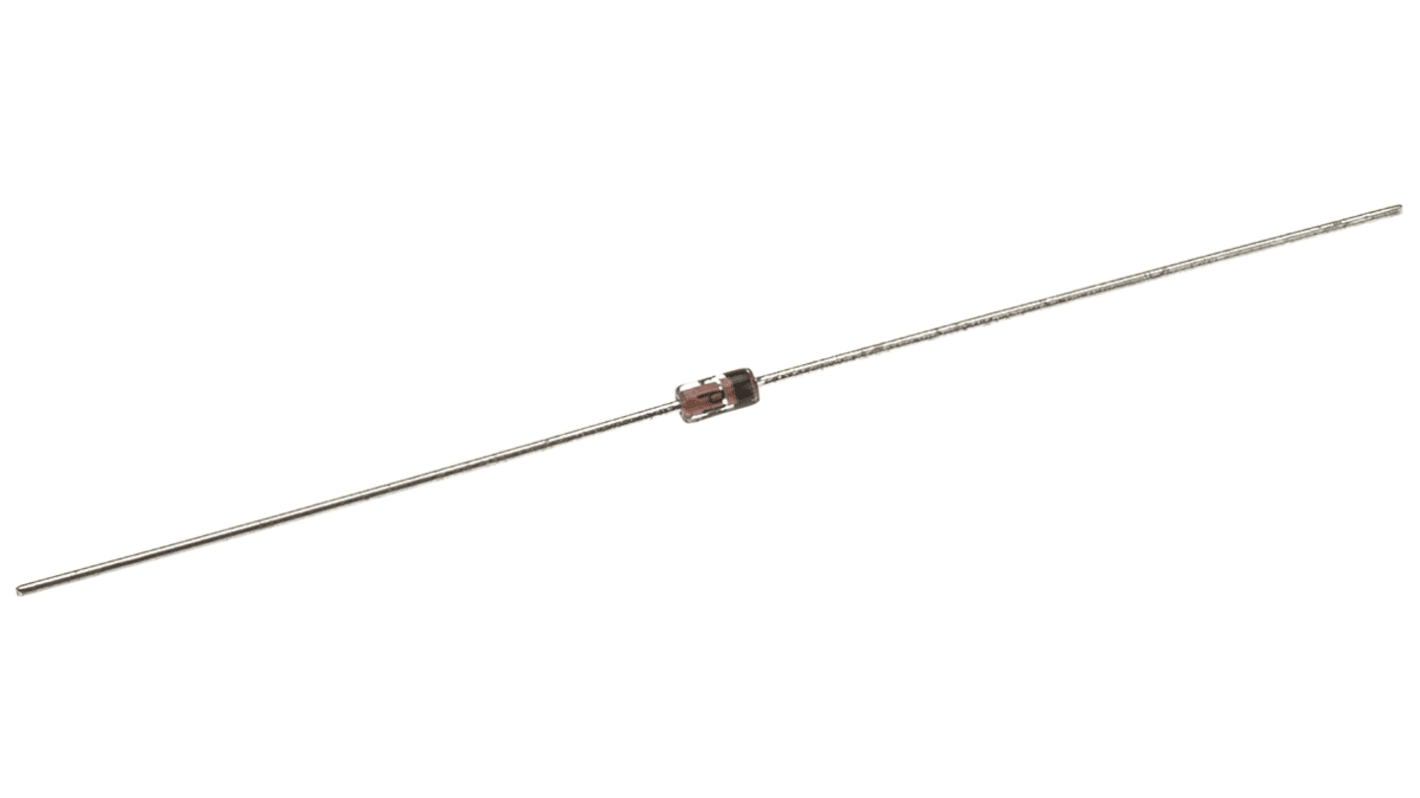

Nexperia, 4.7V Zener Diode 5% 500 mW Through Hole 2-Pin DO-35
- RS Stock No.:
- 544-3575
- Mfr. Part No.:
- BZX79-C4V7,113
- Brand:
- Nexperia
Subtotal (1 pack of 20 units)*
£2.66
(exc. VAT)
£3.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,420 unit(s) ready to ship
- Plus 560 unit(s) ready to ship from another location
- Plus 5,900 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 + | £0.133 | £2.66 |
*price indicative
- RS Stock No.:
- 544-3575
- Mfr. Part No.:
- BZX79-C4V7,113
- Brand:
- Nexperia
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Diode Configuration | Single | |
| Nominal Zener Voltage | 4.7V | |
| Number of Elements per Chip | 1 | |
| Mounting Type | Through Hole | |
| Maximum Power Dissipation | 500 mW | |
| Package Type | DO-35 | |
| Zener Type | Voltage Regulator | |
| Zener Voltage Tolerance | 5% | |
| Pin Count | 2 | |
| Test Current | 5mA | |
| Maximum Zener Impedance | 80Ω | |
| Maximum Reverse Leakage Current | 3µA | |
| Dimensions | 4.25 x 1.85 x 1.85mm | |
| Minimum Operating Temperature | -65 °C | |
| Typical Voltage Temperature Coefficient | -1.4mV/°C | |
| Maximum Operating Temperature | +200 °C | |
Select all | ||
|---|---|---|
Brand Nexperia | ||
Diode Configuration Single | ||
Nominal Zener Voltage 4.7V | ||
Number of Elements per Chip 1 | ||
Mounting Type Through Hole | ||
Maximum Power Dissipation 500 mW | ||
Package Type DO-35 | ||
Zener Type Voltage Regulator | ||
Zener Voltage Tolerance 5% | ||
Pin Count 2 | ||
Test Current 5mA | ||
Maximum Zener Impedance 80Ω | ||
Maximum Reverse Leakage Current 3µA | ||
Dimensions 4.25 x 1.85 x 1.85mm | ||
Minimum Operating Temperature -65 °C | ||
Typical Voltage Temperature Coefficient -1.4mV/°C | ||
Maximum Operating Temperature +200 °C | ||
