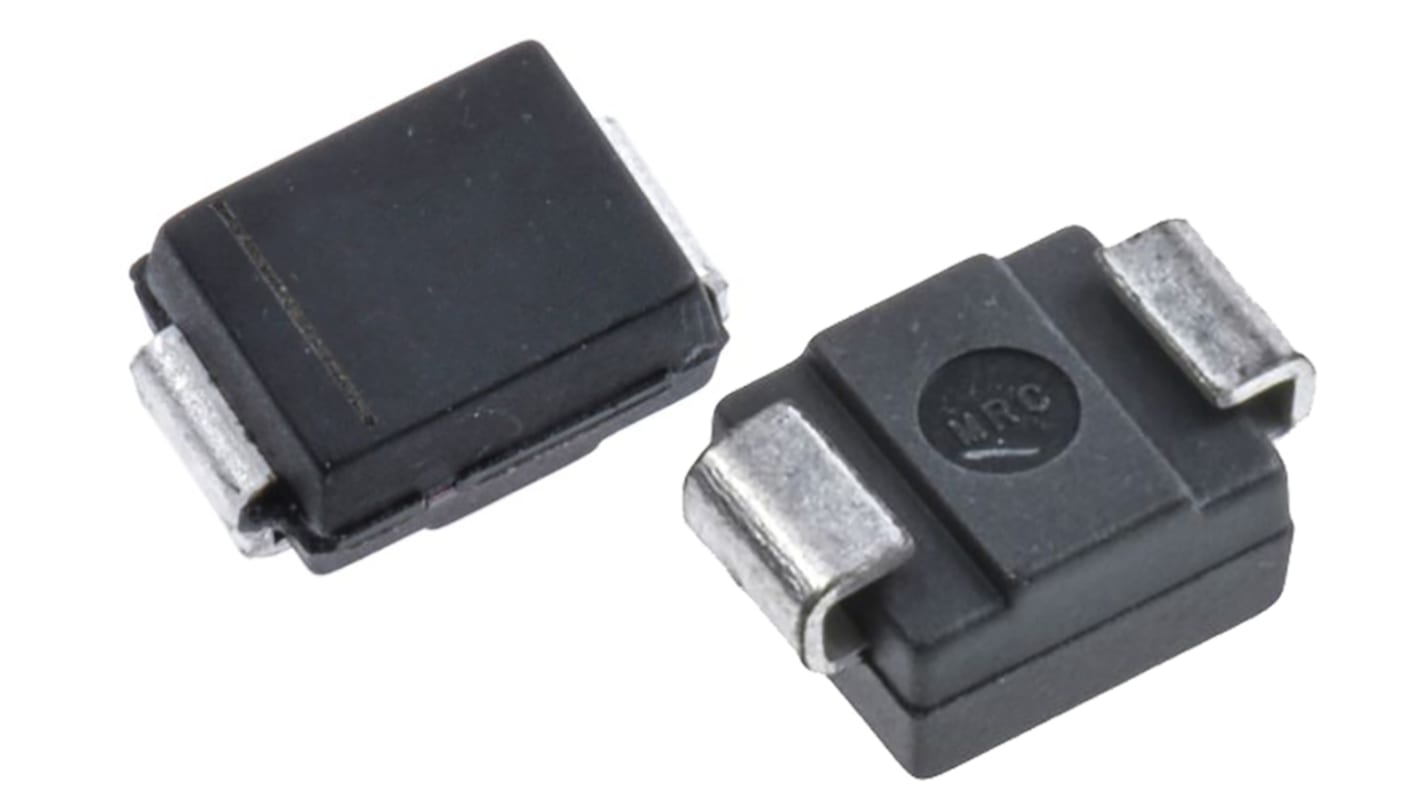

STMicroelectronics, 47.6V Zener Diode 600 W SMT 2-Pin DO-214AA
- RS Stock No.:
- 190-7681
- Mfr. Part No.:
- SM6T56CA
- Brand:
- STMicroelectronics
Subtotal (1 pack of 25 units)*
£6.40
(exc. VAT)
£7.675
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12,100 unit(s) ready to ship
- Plus 999,987,875 unit(s) shipping from 22 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
25 + | £0.256 | £6.40 |
*price indicative
- RS Stock No.:
- 190-7681
- Mfr. Part No.:
- SM6T56CA
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Nominal Zener Voltage | 47.6V | |
Diode Configuration | Single | |
Number of Elements per Chip | 1 | |
Mounting Type | Surface Mount | |
Maximum Power Dissipation | 600 W | |
Package Type | DO-214AA (SMB) | |
Zener Type | Bi-Directional | |
Pin Count | 2 | |
Maximum Reverse Leakage Current | 200nA | |
Dimensions | 3.95 x 2.25 x 4.6mm | |
Minimum Operating Temperature | -55 °C | |
Maximum Operating Temperature | +150 °C | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Nominal Zener Voltage 47.6V | ||
Diode Configuration Single | ||
Number of Elements per Chip 1 | ||
Mounting Type Surface Mount | ||
Maximum Power Dissipation 600 W | ||
Package Type DO-214AA (SMB) | ||
Zener Type Bi-Directional | ||
Pin Count 2 | ||
Maximum Reverse Leakage Current 200nA | ||
Dimensions 3.95 x 2.25 x 4.6mm | ||
Minimum Operating Temperature -55 °C | ||
Maximum Operating Temperature +150 °C | ||
The SM6T Transil series are designed to protect sensitive equipment against electrostatic discharges and electrical overstress. These devices are more generally used against surges below 600 W (10/1000 μs). The Planar technology makes it suitable for high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.SM6T are packaged in SMB.
Peak pulse power:
600 W (10/1000 μs)
4 kW (8/20 μs)
Stand-off voltage range: from 6.8 V to 220 V
Unidirectional and bidirectional types
Low leakage current:
0.2 μA at 25 °C
1 μA at 85 °C
Operating Tj max: 150 °C
High power capability at Tj max.:
515 W (10/1000 μs)
600 W (10/1000 μs)
4 kW (8/20 μs)
Stand-off voltage range: from 6.8 V to 220 V
Unidirectional and bidirectional types
Low leakage current:
0.2 μA at 25 °C
1 μA at 85 °C
Operating Tj max: 150 °C
High power capability at Tj max.:
515 W (10/1000 μs)
