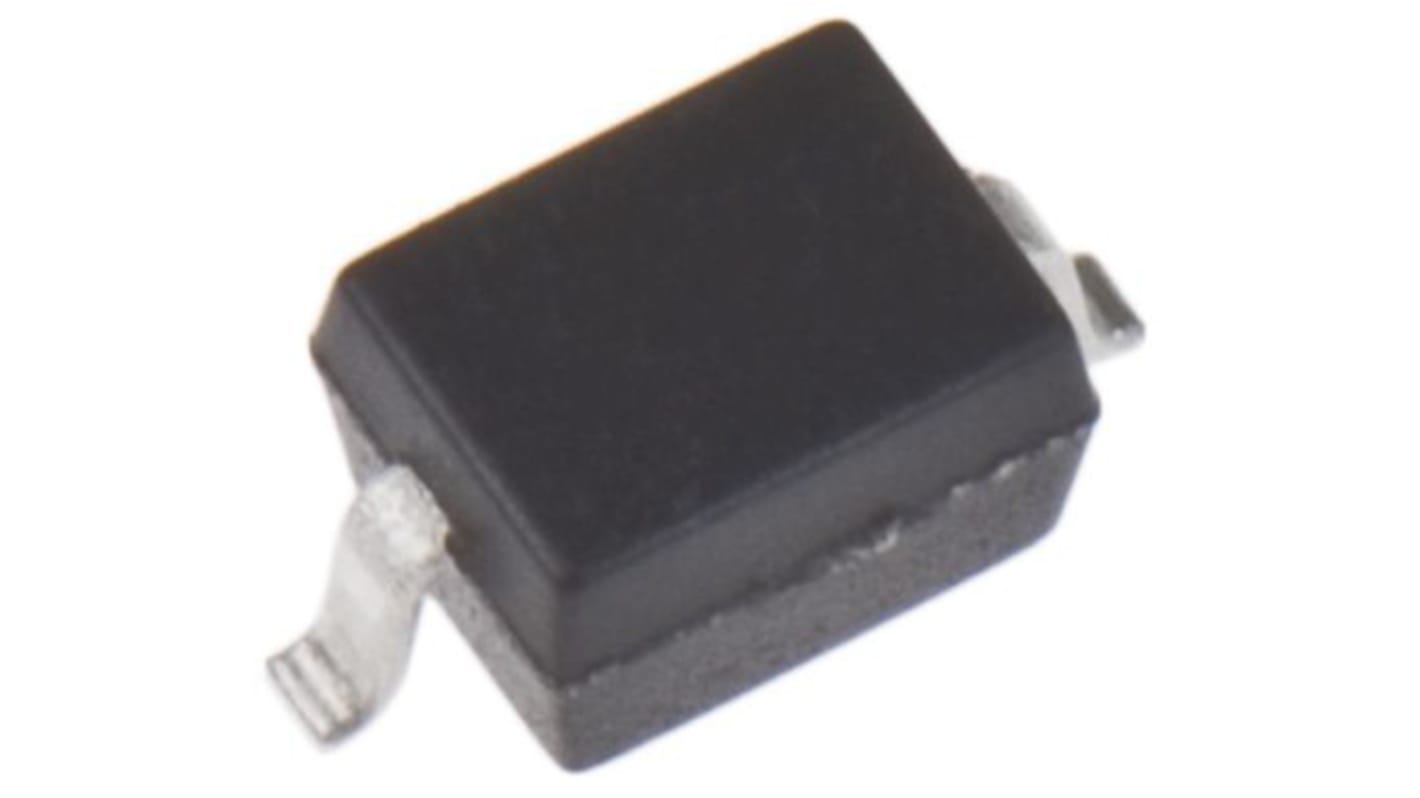

onsemi, 3.11V Zener Diode ±2% 300 mW SMT 2-Pin SOD-323
- RS Stock No.:
- 184-1293
- Mfr. Part No.:
- MM3Z3V0ST1G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 250 units)*
£4.50
(exc. VAT)
£5.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 13,250 unit(s) shipping from 06 October 2025
- Plus 999,986,500 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 250 - 750 | £0.018 | £4.50 |
| 1000 + | £0.016 | £4.00 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Reel of 3000)
£0.013
(exc. VAT)
£0.016
(inc. VAT)
- RS Stock No.:
- 184-1293
- Mfr. Part No.:
- MM3Z3V0ST1G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Nominal Zener Voltage | 3.11V | |
| Diode Configuration | Single | |
| Number of Elements per Chip | 1 | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 300 mW | |
| Package Type | SOD-323 | |
| Zener Type | Voltage Regulator | |
| Zener Voltage Tolerance | ±2% | |
| Pin Count | 2 | |
| Test Current | 5mA | |
| Maximum Zener Impedance | 100 Ω @ 5 mA, 1000 Ω @ 0.5 mA | |
| Maximum Reverse Leakage Current | 10µA | |
| Dimensions | 1.8 x 1.35 x 1mm | |
| Maximum Operating Temperature | +150 °C | |
| Forward Current | 10mA | |
| Forward Voltage | 0.9V | |
| Minimum Operating Temperature | -65 °C | |
| Automotive Standard | AEC-Q101 | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Nominal Zener Voltage 3.11V | ||
Diode Configuration Single | ||
Number of Elements per Chip 1 | ||
Mounting Type Surface Mount | ||
Maximum Power Dissipation 300 mW | ||
Package Type SOD-323 | ||
Zener Type Voltage Regulator | ||
Zener Voltage Tolerance ±2% | ||
Pin Count 2 | ||
Test Current 5mA | ||
Maximum Zener Impedance 100 Ω @ 5 mA, 1000 Ω @ 0.5 mA | ||
Maximum Reverse Leakage Current 10µA | ||
Dimensions 1.8 x 1.35 x 1mm | ||
Maximum Operating Temperature +150 °C | ||
Forward Current 10mA | ||
Forward Voltage 0.9V | ||
Minimum Operating Temperature -65 °C | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
This Zener Diode Voltage Regulator is packaged in a SOD323 surface mount package, which has a power dissipation of 300 milliwatts. It is designed to provide voltage regulation protection and is especially attractive in situations where space is at a premium. It is well suited for applications such as cellular phones, hand held portables and high density PC boards
Standard Zener Breakdown Voltage Range - 2.4 V to 75 V
Steady State Power Rating of 200 mW
Mechanical Characteristics:
Tight Tolerance
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 Seconds
Applications
Tight tolerance Zener voltage regulation
Steady State Power Rating of 200 mW
Mechanical Characteristics:
Tight Tolerance
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 Seconds
Applications
Tight tolerance Zener voltage regulation
