MPN

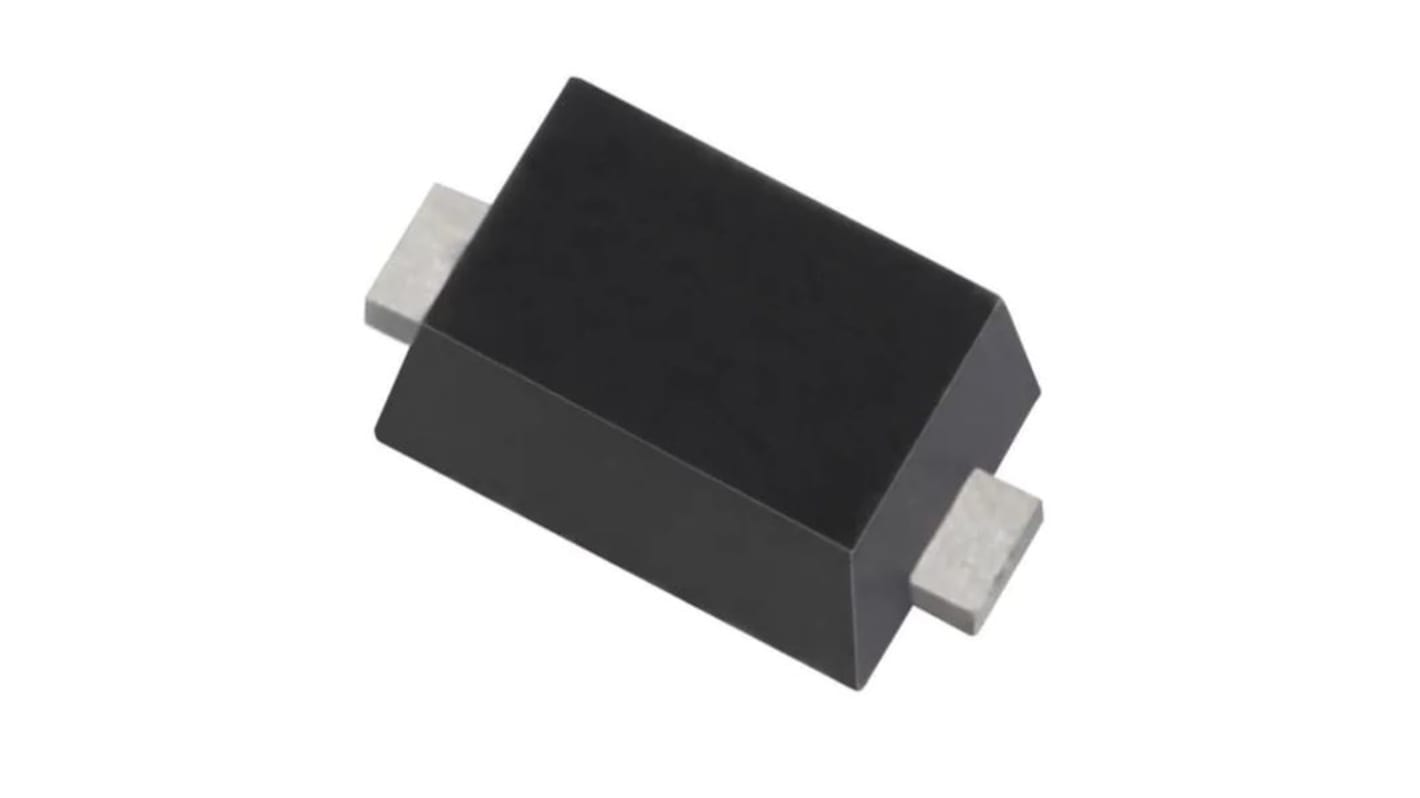

Diodes Inc, 5.6V Zener Diode ±5% 200mW SMT 2-Pin SOD-923

Subtotal (1 pack of 100 units)*

£4.30

(exc. VAT)

£5.20

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
100 +	£0.043	£4.30

*price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Nominal Zener Voltage	5.6V
	Mounting Type	Surface Mount
	Number of Elements per Chip	1
	Maximum Power Dissipation	200mW
	Package Type	SOD-923
	Zener Type	Ultra Small
	Zener Voltage Tolerance	±5%
	Pin Count	2
	Test Current	5mA
	Maximum Zener Impedance	200Ω
	Maximum Reverse Leakage Current	1µA
	Dimensions	0.8 x 0.6 x 0.37mm
	Forward Voltage	0.9V
	Forward Current	10mA
	Maximum Operating Temperature	+150 °C
	Minimum Operating Temperature	-65 °C
	Typical Voltage Temperature Coefficient	2.5mV/°C

	Select all
	Brand DiodesZetex
	Nominal Zener Voltage 5.6V
	Mounting Type Surface Mount
	Number of Elements per Chip 1
	Maximum Power Dissipation 200mW
	Package Type SOD-923
	Zener Type Ultra Small
	Zener Voltage Tolerance ±5%
	Pin Count 2
	Test Current 5mA
	Maximum Zener Impedance 200Ω
	Maximum Reverse Leakage Current 1µA
	Dimensions 0.8 x 0.6 x 0.37mm
	Forward Voltage 0.9V
	Forward Current 10mA
	Maximum Operating Temperature +150 °C
	Minimum Operating Temperature -65 °C
	Typical Voltage Temperature Coefficient 2.5mV/°C
