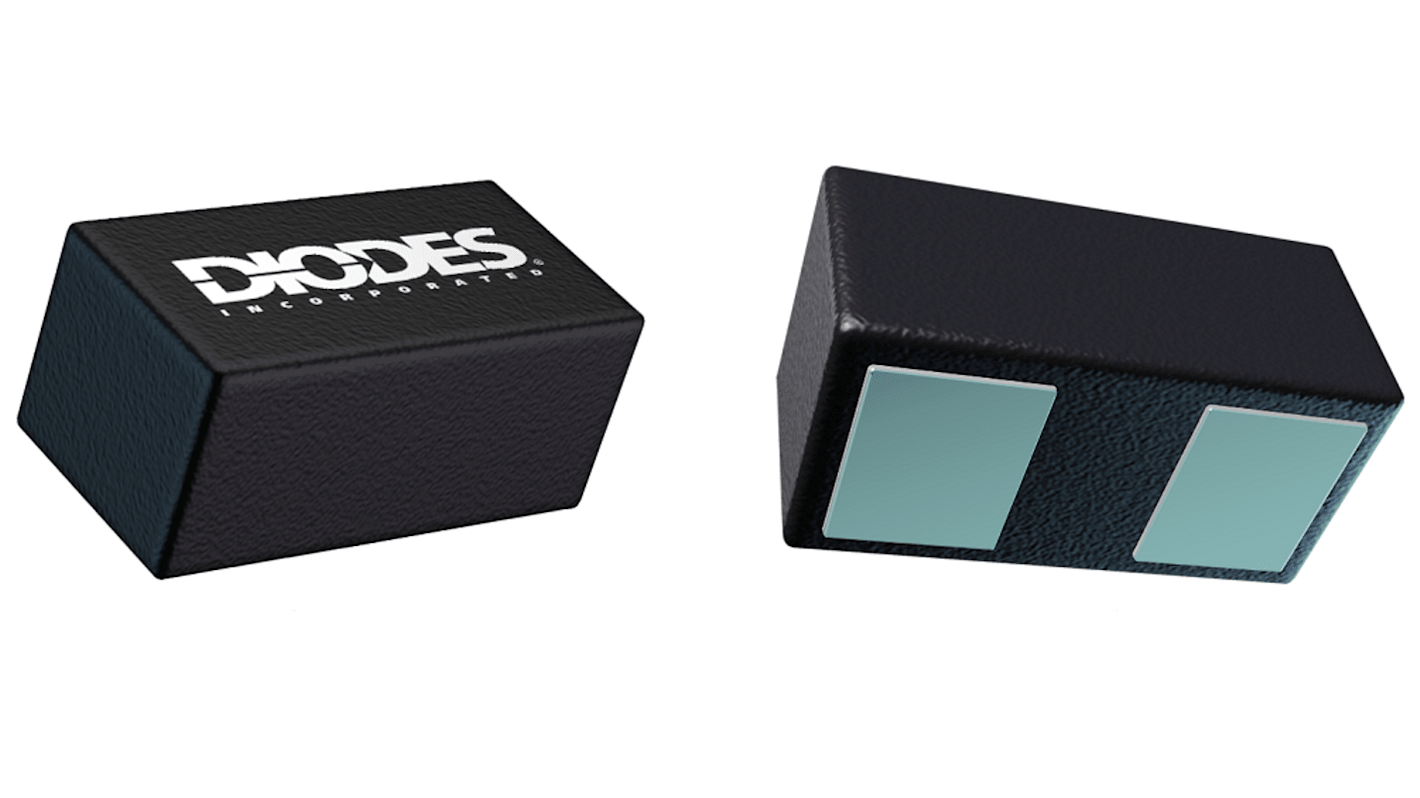

Diodes Inc, 16V Zener Diode ±5% 250mW SMT 2-Pin X3-DFN0603

View all Zener Diodes
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
182-6980
Mfr. Part No.:
GDZ16LP3-7
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Nominal Zener Voltage

16V

Number of Elements per Chip

1

Mounting Type

Surface Mount

Maximum Power Dissipation

250mW

Package Type

X3-DFN0603

Zener Type

Ultra Small

Zener Voltage Tolerance

±5%

Pin Count

2

Test Current

5mA

Maximum Reverse Leakage Current

100nA

Dimensions

0.62 x 0.32 x 0.28mm

Minimum Operating Temperature

-55 °C

Automotive Standard

AEC-Q101

Maximum Operating Temperature

+150 °C

COO (Country of Origin):
CN
Diodes Incorporated offers Tight Tolerance Zener Diodes. An ion-implanted epitaxial wafer process allows tolerances as tight as ±2.0% in voltages ranging from 2.4V to 47V.

Provision of reference voltages for stabilized power supplies
Generation of stabilized supply rails at lower voltage levels from a higher voltage
Protection of circuits from over-voltage especially electrostatic discharge (ESD)
A simple voltage regulator or voltage shifter with small application area and component count
Ultra-Small Leadless Surface Mount Package
Ultra-Low Profile Package
Application
Voltage Regulation
