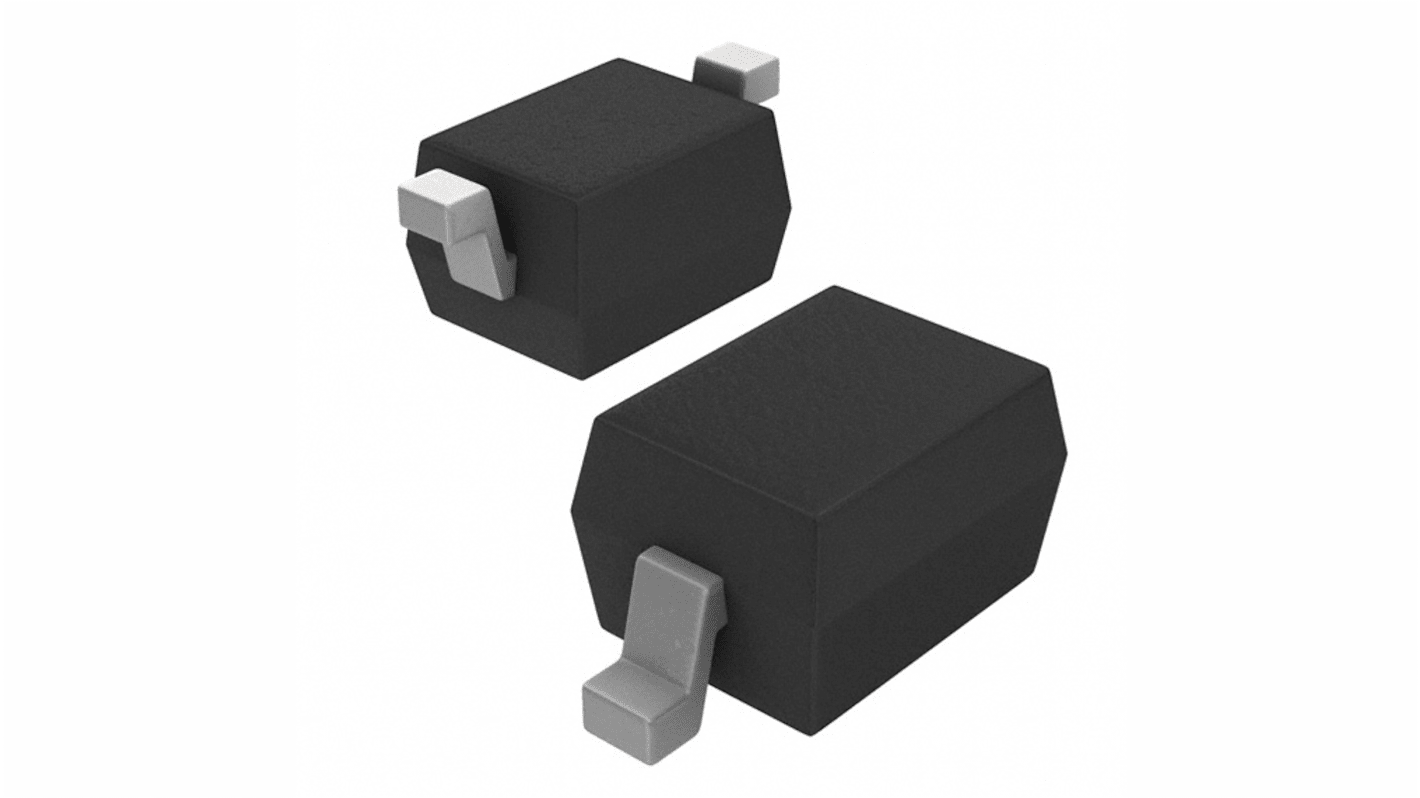

Vishay, 2.2V Zener Diode 0.2 W SMT 3-Pin SOD-323

View all Zener Diodes
Bulk discount available

Subtotal 1000 units (supplied on a reel)*

£42.00

(exc. VAT)

£50.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1000 - 2400£0.042
2500 - 4900£0.039
5000 - 9900£0.031
10000 +£0.023

*price indicative

Packaging Options:
RS Stock No.:
180-8742P
Mfr. Part No.:
GDZ2V0B-G3-08
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Nominal Zener Voltage

2.2V

Diode Configuration

Single

Mounting Type

Surface Mount

Maximum Power Dissipation

0.2 W

Package Type

SOD-323

Zener Type

Small Signal

Pin Count

3

COO (Country of Origin):
CN

Vishay Zener Diode


The Vishay SOD-323 small-signal Zener diode has a voltage rating of 2VDC and power rating of 200mW at 2% voltage tolerance. The Zener current of the diode is 120μA and reverse current rating is 120μA.

Features and Benefits


• Compact surface mount device
• ESD capability according to AEC-Q101: human body model > 8kV and machine model > 800V
• Halogen free
• Ideal for automated mounting
• Lead (Pb) free component
• Low Zener impedance and low leakage current
• Operating junction temperature ranges between -55°C and 150°C
• Popular in Asian designs
• Silicon planar Zener diode

Applications


• Voltage regulators
• Voltage stabilization

Certifications


• AEC-Q101 qualified
• e3
• Green (5-2008)
• J-STD-020
• UL94 listed
