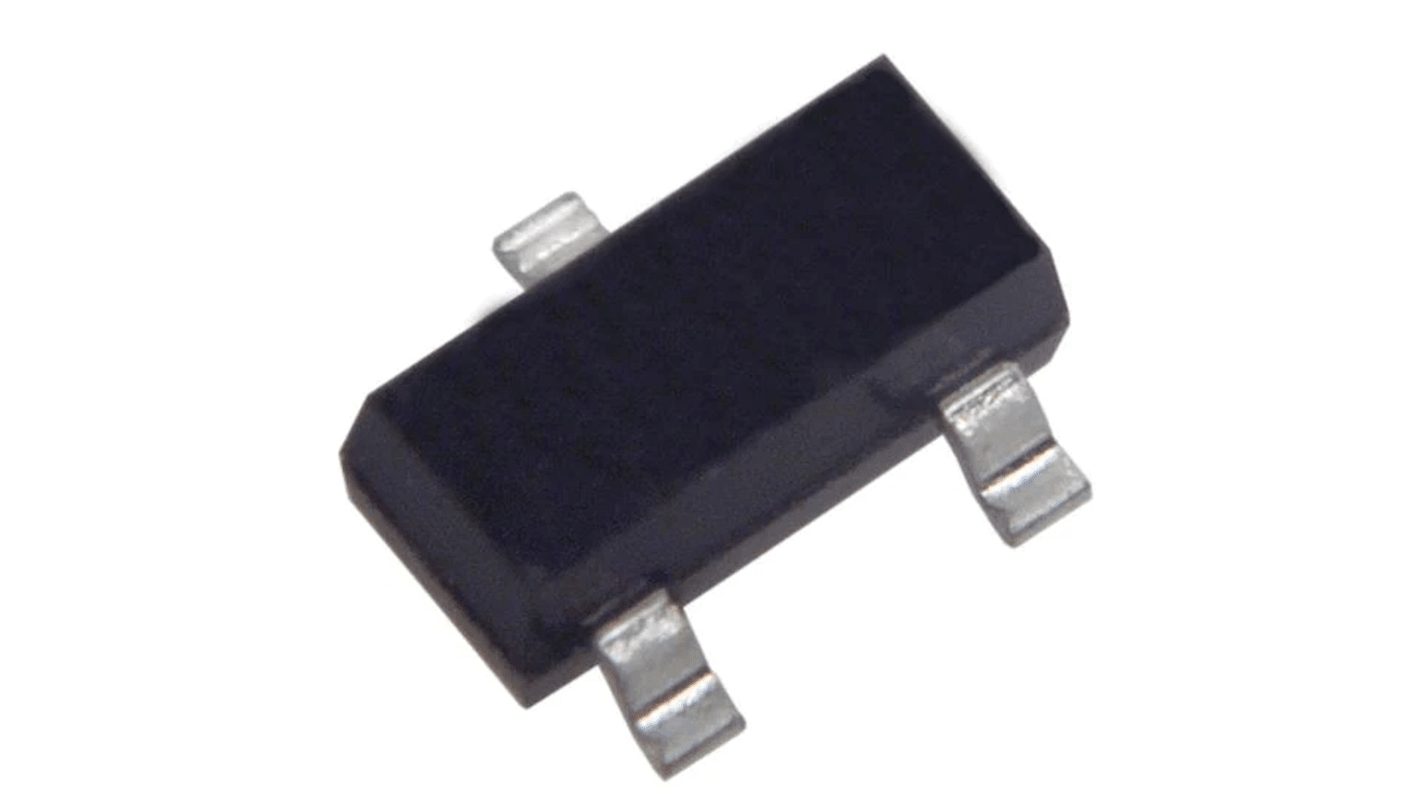

Vishay, 16V Zener Diode ± 2% 0.42 W SMT 3-Pin SOT-23

View all Zener Diodes
Unavailable
RS will no longer stock this product.
RS Stock No.:
180-8241
Mfr. Part No.:
BZX84C16-HE3-08
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Diode Configuration

Single

Nominal Zener Voltage

16V

Mounting Type

Surface Mount

Maximum Power Dissipation

0.42 W

Package Type

SOT-23

Zener Type

Small Signal

Zener Voltage Tolerance

± 2%

Pin Count

3

COO (Country of Origin):
CN

Vishay Zener Diode


The Vishay SOD-23 small signal Zener diode has a voltage rating of 16VDC and power rating of 300mW at 5% voltage tolerance. The Zener current rating of the diode is 0.05μA and reverse current rating is 0.05μA.

Features and Benefits


• ESD capability according to AEC-Q101: human body model > 8kV and machine model > 800V
• Lead (Pb) free component
• Operating junction temperature ranges between -55°C and 150°C
• Replace C with B for ±2% tolerance
• Silicon planar Zener diode
• The Zener voltages are graded according to the international standard

Applications


• Voltage regulators
• Voltage stabilization

Certifications


• AEC-Q101 qualified
• Automotive Grade
• E24
• e3
• J-STD-020
• UL94 listed
