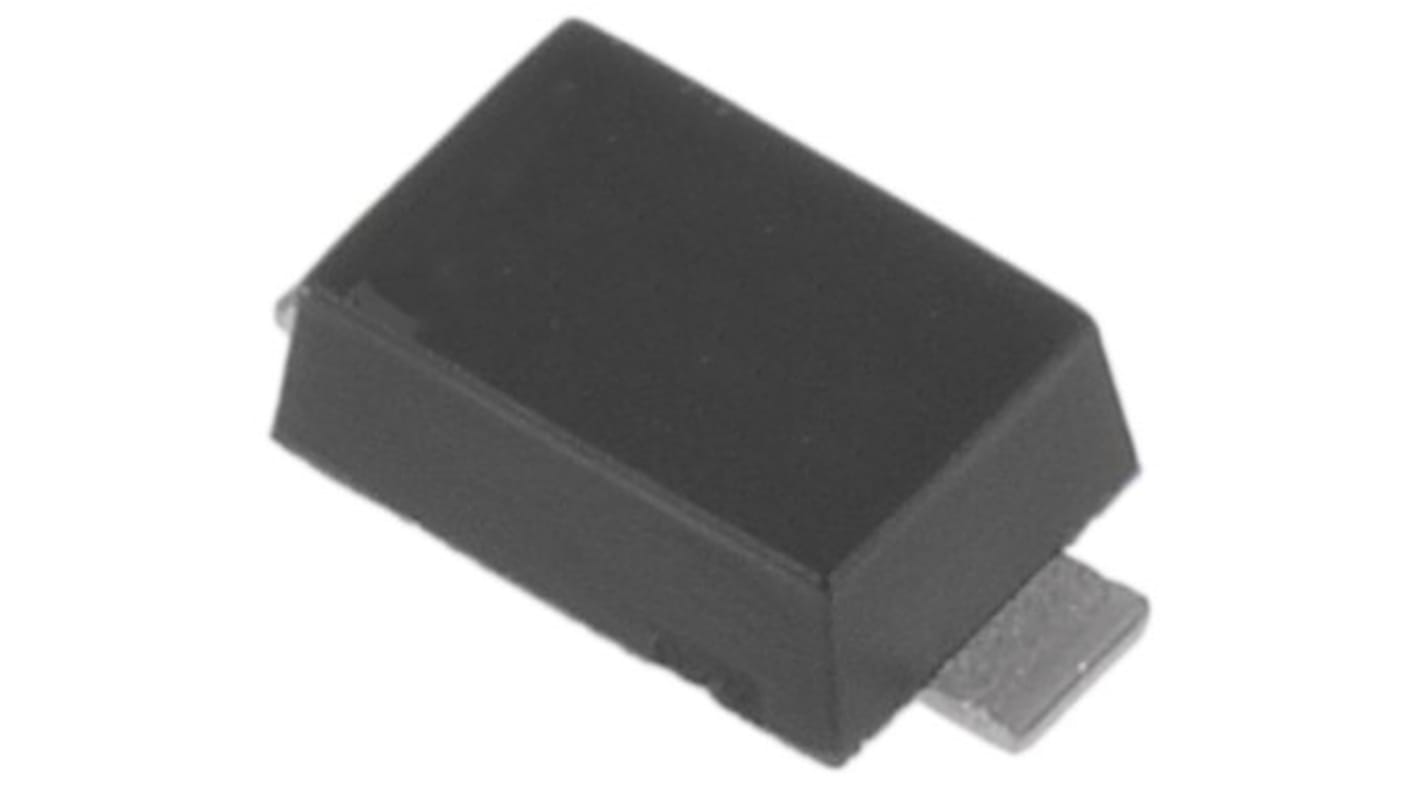

Vishay, 15V Zener Diode ±5% 500 mW SMT 2-Pin SOD-123
- RS Stock No.:
- 180-7222P
- Mfr. Part No.:
- MMSZ5245B-E3-08
- Brand:
- Vishay
Subtotal 100 units (supplied on a continuous strip)*
£2.90
(exc. VAT)
£3.50
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 12,100 unit(s), ready to ship
Units | Per unit |
|---|---|
| 100 + | £0.029 |
*price indicative
- RS Stock No.:
- 180-7222P
- Mfr. Part No.:
- MMSZ5245B-E3-08
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Nominal Zener Voltage | 15V | |
| Diode Configuration | Single | |
| Number of Elements per Chip | 1 | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 500 mW | |
| Package Type | SOD-123 | |
| Zener Type | Small Signal | |
| Zener Voltage Tolerance | ±5% | |
| Pin Count | 2 | |
| Test Current | 8.5mA | |
| Maximum Zener Impedance | 16Ω | |
| Maximum Reverse Leakage Current | 100nA | |
| Dimensions | 2.85 x 0.45 x 1.25mm | |
| Maximum Operating Temperature | +150 °C | |
| Automotive Standard | AEC-Q101 | |
| Minimum Operating Temperature | -55 °C | |
| Typical Voltage Temperature Coefficient | 0.08%/°C | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Nominal Zener Voltage 15V | ||
Diode Configuration Single | ||
Number of Elements per Chip 1 | ||
Mounting Type Surface Mount | ||
Maximum Power Dissipation 500 mW | ||
Package Type SOD-123 | ||
Zener Type Small Signal | ||
Zener Voltage Tolerance ±5% | ||
Pin Count 2 | ||
Test Current 8.5mA | ||
Maximum Zener Impedance 16Ω | ||
Maximum Reverse Leakage Current 100nA | ||
Dimensions 2.85 x 0.45 x 1.25mm | ||
Maximum Operating Temperature +150 °C | ||
Automotive Standard AEC-Q101 | ||
Minimum Operating Temperature -55 °C | ||
Typical Voltage Temperature Coefficient 0.08%/°C | ||
- COO (Country of Origin):
- CN
Silicon planar Zener diodes
Standard Zener voltage tolerance is ± 5 % with a “B” suffix (e.g.: MMSZ5225B), suffix “C” is ± 2 % tolerance
Standard Zener voltage tolerance is ± 5 % with a “B” suffix (e.g.: MMSZ5225B), suffix “C” is ± 2 % tolerance
