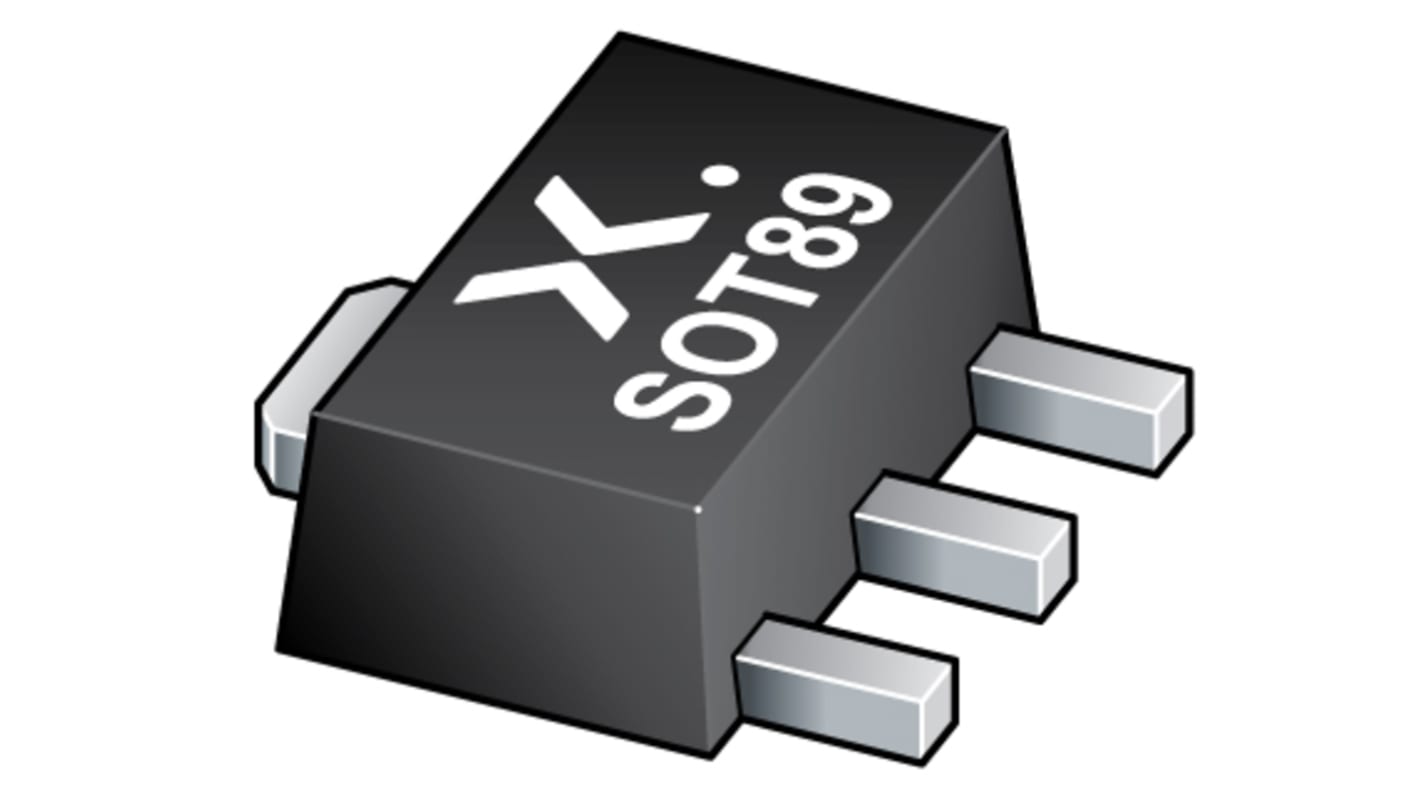

Nexperia, 18V Zener Diode ±5% 1 W SMT 3-Pin SOT-89

View all Zener Diodes
Discontinued
Packaging Options:
RS Stock No.:
170-5363
Mfr. Part No.:
BZV49-C18,115
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Diode Configuration

Single

Nominal Zener Voltage

18V

Mounting Type

Surface Mount

Number of Elements per Chip

1

Maximum Power Dissipation

1 W

Package Type

SOT-89

Zener Type

Voltage Regulator

Zener Voltage Tolerance

±5%

Pin Count

3

Test Current

5mA

Maximum Reverse Leakage Current

50nA

Dimensions

4.6 x 2.6 x 1.6mm

Typical Voltage Temperature Coefficient

14.4mV/K

Maximum Operating Temperature

+150 °C

Forward Voltage

1V

Forward Current

250mA

COO (Country of Origin):
CN
Compact protection for high density circuits. You can use our Zener diodes to provide regulation functions in most of your electronic applications. While offering a cheaper alternative to IC solutions, Zeners give you customized, effective protection in small scale, high density circuit designs.

Medium-power voltage regulator diodes in a SOT89 plastic SMD package. The diodes are available in the normalized E24 approx. +-5pct tolerance range. The series consists of 37 types with nominal working voltages from 2.4 to 75 V (BZV49-C2V4 to BZV49-C75).

Comprehensive range of package and power dissipation options
Realization of customized, effective protection in small scaled, high density circuit designs.
Wide range of working voltages
Narrow working-voltage tolerances
General regulation and voltage reference functions
Over-voltage protection
