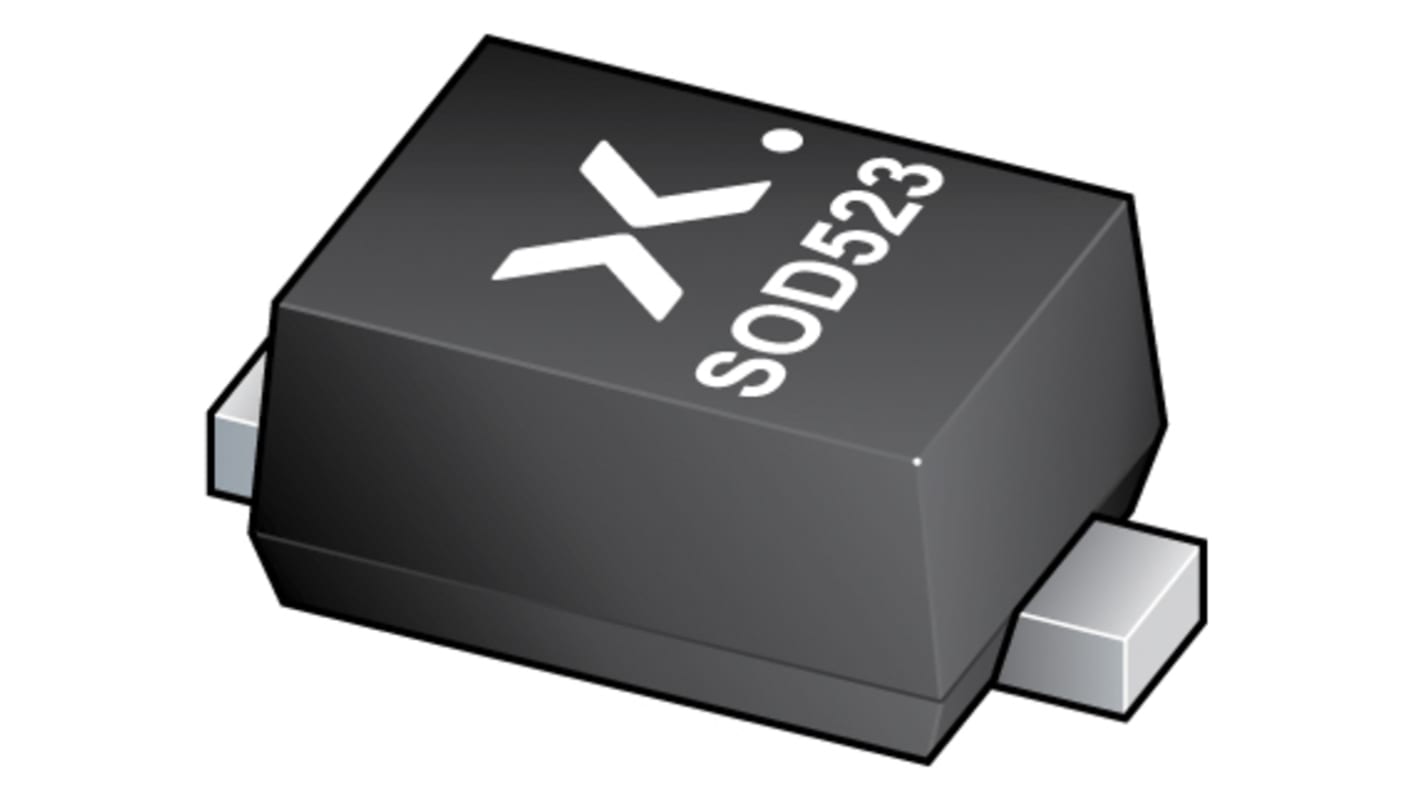

Nexperia, 30V Zener Diode ±5% 300 mW SMT 2-Pin SOD-523
- RS Stock No.:
- 151-2757
- Mfr. Part No.:
- BZX585-C30,115
- Brand:
- Nexperia
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Pack of 250)
£0.125
(exc. VAT)
£0.15
(inc. VAT)
| Units | Per unit | Per Pack* |
| 250 + | £0.125 | £31.25 |
| *price indicative | ||
- RS Stock No.:
- 151-2757
- Mfr. Part No.:
- BZX585-C30,115
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Voltage regulator diodes, Low-power voltage regulator diodes encapsulated in an ultra small SOD523 plastic SMD package. The diodes are available in the normalized E24 +- 2 pct (BZX585-B) and +- 5 pct (BZX585-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Total power dissipation: max. 300 mW
Two tolerance series: +- 2 pct and +- 5 pct
Working voltage range: nominal 2.4 V to 75 V (E24 range)
Non-repetitive peak reverse power dissipation: max. 40 W.
AEC-Q101 qualified
Two tolerance series: +- 2 pct and +- 5 pct
Working voltage range: nominal 2.4 V to 75 V (E24 range)
Non-repetitive peak reverse power dissipation: max. 40 W.
AEC-Q101 qualified
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 30V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 300 mW |
| Package Type | SOD-523 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 2 |
| Test Current | 5mA |
| Dimensions | 1.25 x 0.85 x 0.65mm |
| Maximum Operating Temperature | +150 °C |
| Forward Voltage | 1.1V |
| Forward Current | 200mA |
| Minimum Operating Temperature | -65 °C |
| Typical Voltage Temperature Coefficient | 26.6mV/K |
| Automotive Standard | AEC-Q101 |
