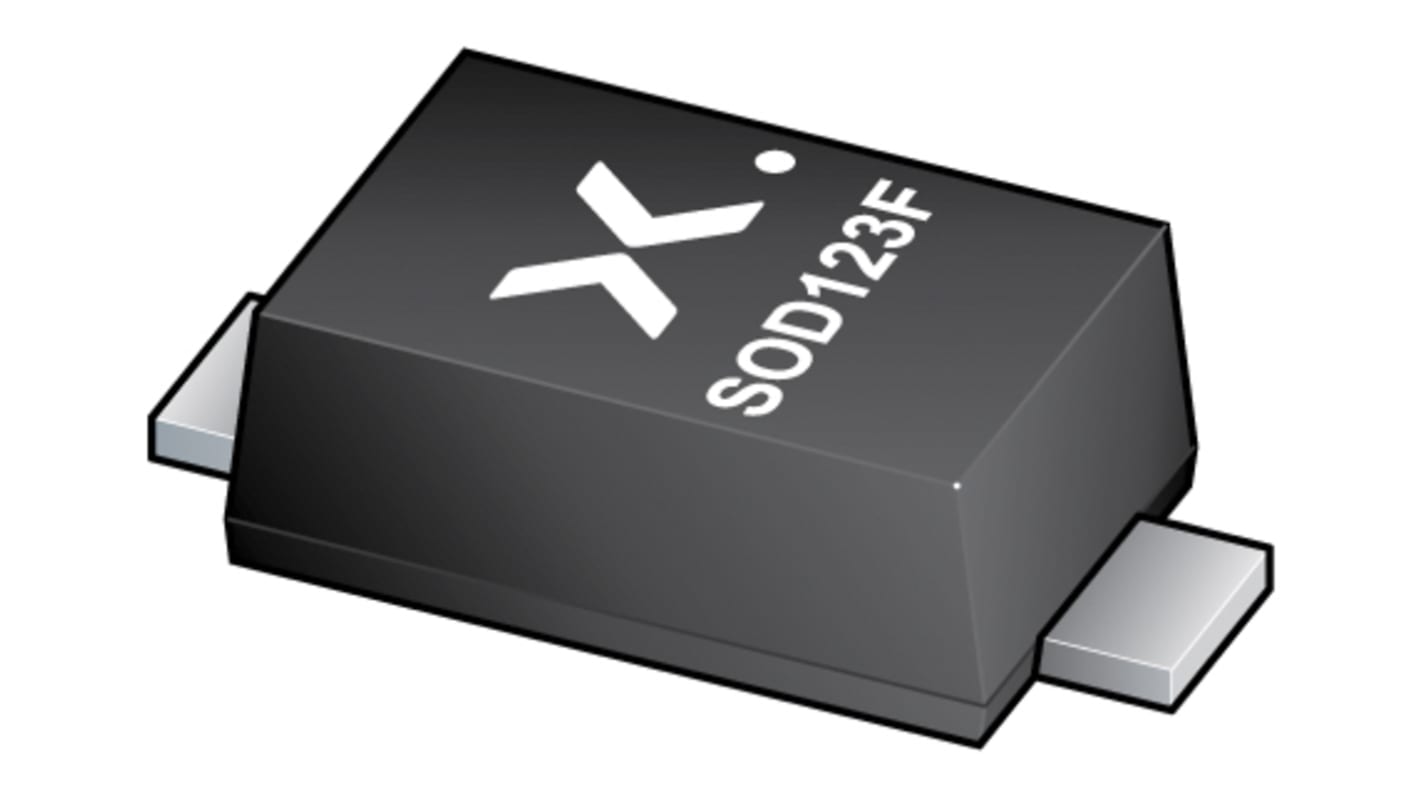

Nexperia, 6V Zener Diode 830 mW SMT 2-Pin SOD-123F
- RS Stock No.:
- 151-2648
- Mfr. Part No.:
- BZT52H-C6V2,115
- Brand:
- Nexperia
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Price Each (On a Reel of 3000)
£0.03
(exc. VAT)
£0.04
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.03 | £90.00 |
*price indicative
- RS Stock No.:
- 151-2648
- Mfr. Part No.:
- BZT52H-C6V2,115
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Single Zener diodes in a SOD123F package, General-purpose Zener diodes in a SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Total power dissipation: ≤ 830 mW
Low differential resistance
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
AEC-Q101 qualified
Small plastic package suitable for surface-mounted design
Low differential resistance
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
AEC-Q101 qualified
Small plastic package suitable for surface-mounted design
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 6V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 830 mW |
| Package Type | SOD-123F |
| Zener Type | General Purpose |
| Pin Count | 2 |
| Test Current | 5mA |
| Dimensions | 2.7 x 1.7 x 1.2mm |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +150 °C |
| Typical Voltage Temperature Coefficient | 3.7mV/K |
| Forward Current | 250mA |
| Forward Voltage | 0.9V |
| Minimum Operating Temperature | -65 °C |
