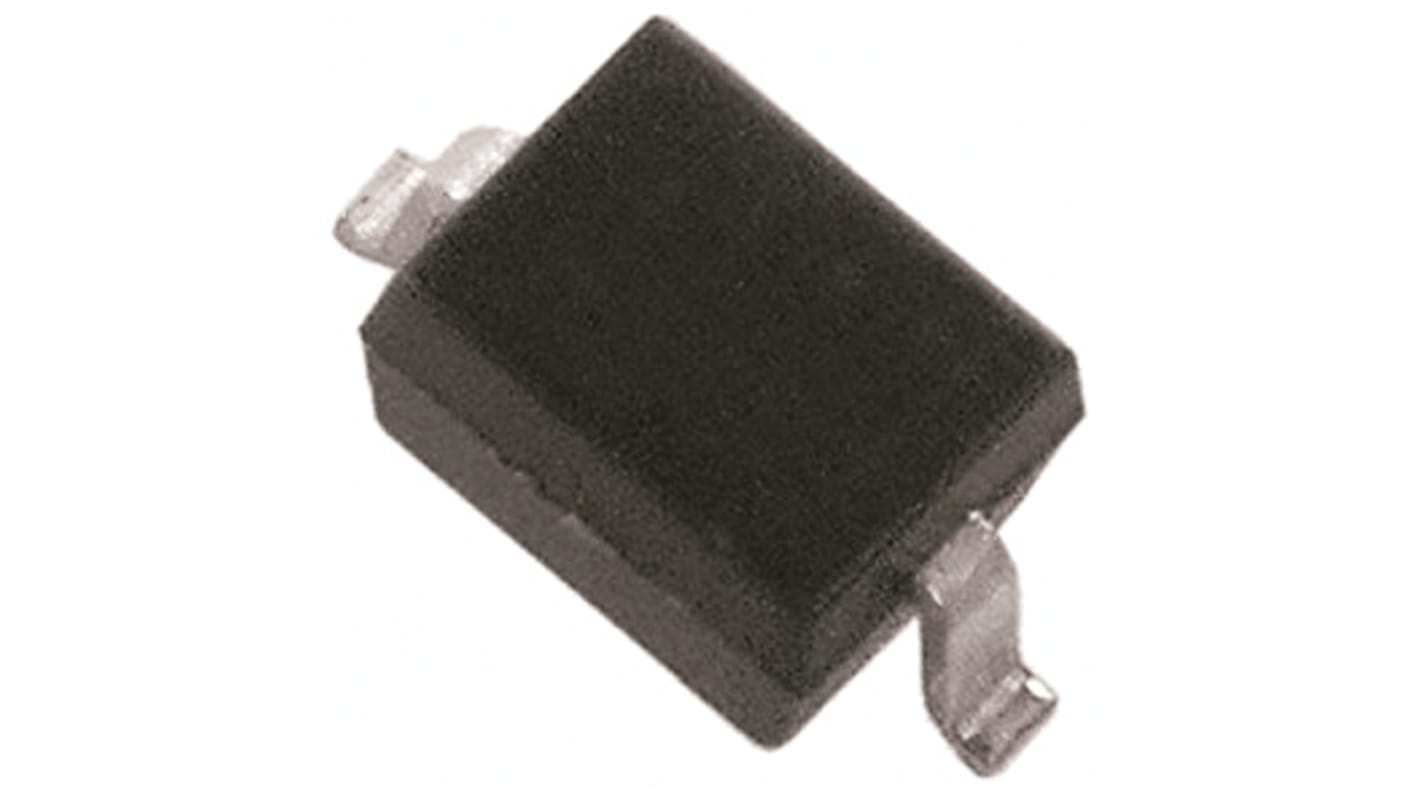

Nexperia, 13V Zener Diode 2% 300 mW SMT 2-Pin SOD-323
- RS Stock No.:
- 146-0900
- Mfr. Part No.:
- BZX384-B13
- Brand:
- Nexperia
Available to back order for despatch 20/11/2024
Added
Price Each (On a Reel of 3000)
£0.016
(exc. VAT)
£0.019
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 + | £0.016 | £48.00 |
| *price indicative | ||
- RS Stock No.:
- 146-0900
- Mfr. Part No.:
- BZX384-B13
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Zener Diodes 300mW, BZX384 Series, Nexperia
Zener Voltage Tolerance of 2% (BZX384-B) and approx. 5% (BZX384-C)
Surface Mount case: SOD-323 (SC-76)
Surface Mount case: SOD-323 (SC-76)
Zener Diodes, Nexperia
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 13V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 300 mW |
| Package Type | SOD-323 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 2% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 30Ω |
| Maximum Reverse Leakage Current | 100nA |
| Dimensions | 1.8 x 1.35 x 1.05mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -65 °C |
| Typical Voltage Temperature Coefficient | 9.4mV/K |
- RS Stock No.:
- 146-0900
- Mfr. Part No.:
- BZX384-B13
- Brand:
- Nexperia
