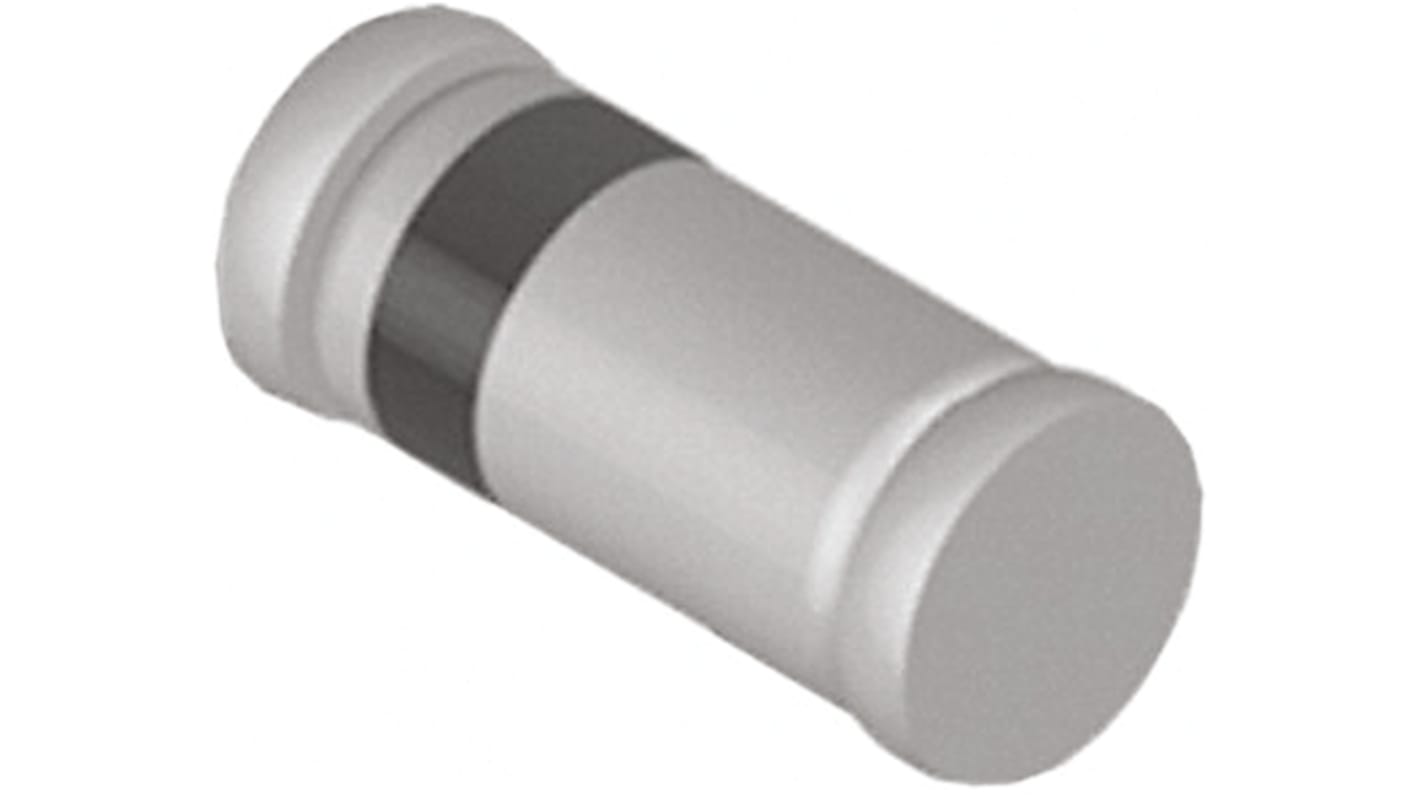

Vishay, 20V Zener Diode 5% 500 mW SMT 2-Pin SOD-80
- RS Stock No.:
- 145-2302
- Mfr. Part No.:
- TZMC20-GS08
- Brand:
- Vishay
Discontinued product
- RS Stock No.:
- 145-2302
- Mfr. Part No.:
- TZMC20-GS08
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Zener Diodes 500mW, TZM Series, Vishay Semiconductor
Surface Mounting (SMT) Zener Diodes rated at 500mW from Vishay covering a range of breakdown voltages from 3.3 to 75V
Zener Diodes, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 20V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD-80 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 5% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 55Ω |
| Maximum Reverse Leakage Current | 2µA |
| Dimensions | 3.7 x 1.6 x 1.6mm |
| Typical Voltage Temperature Coefficient | 0.11%/K |
| Maximum Operating Temperature | +175 °C |
