Nexperia, 2.7V Zener Diode 5% 500 mW Through Hole 2-Pin DO-35
- RS Stock No.:
- 124-2305
- Mfr. Part No.:
- BZX79-C2V7,113
- Brand:
- Nexperia

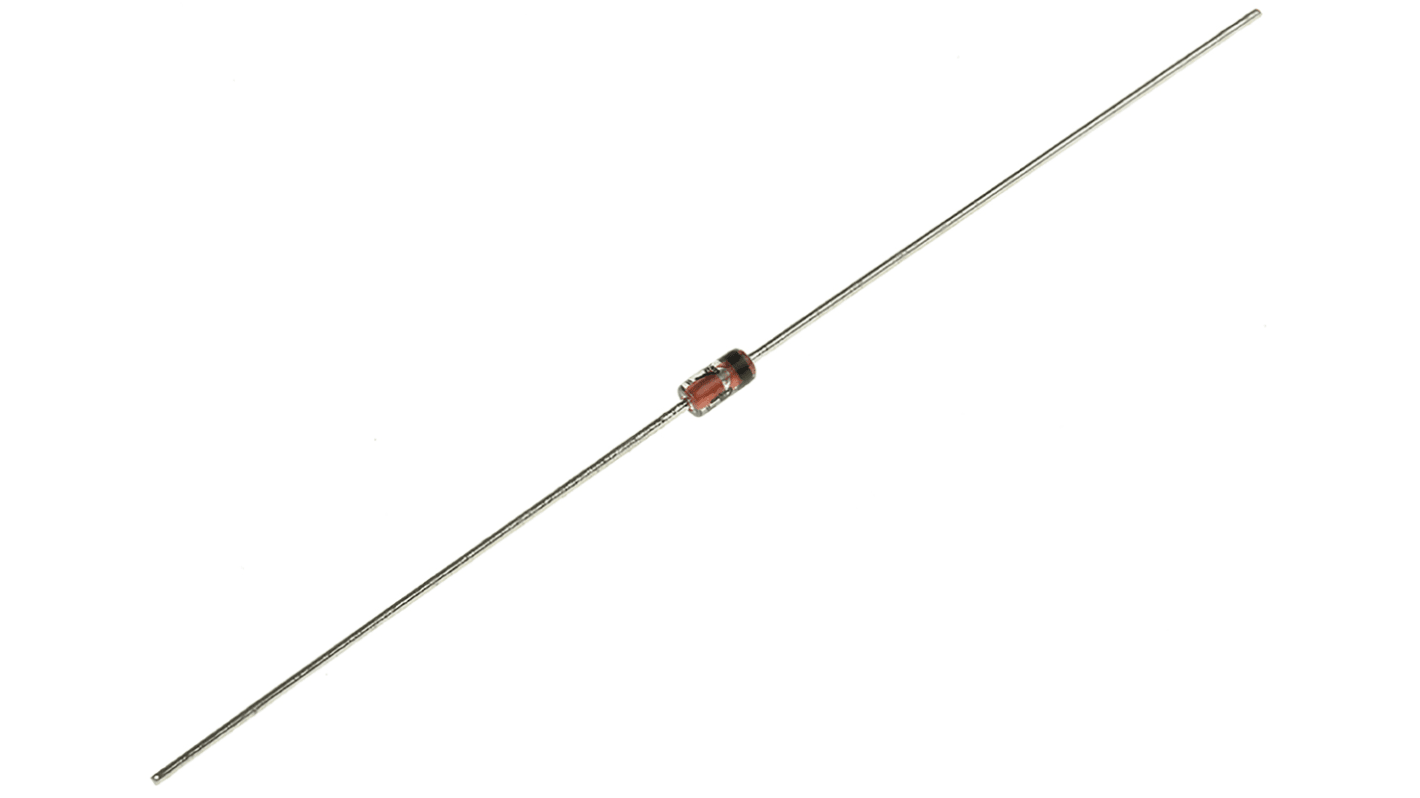

Image representative of range
Bulk discount available
Subtotal (1 reel of 10000 units)*
£170.00
(exc. VAT)
£200.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 10,000 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 10000 - 10000 | £0.017 | £170.00 |
| 20000 - 40000 | £0.017 | £170.00 |
| 50000 - 90000 | £0.016 | £160.00 |
| 100000 - 190000 | £0.016 | £160.00 |
| 200000 + | £0.015 | £150.00 |
*price indicative
- RS Stock No.:
- 124-2305
- Mfr. Part No.:
- BZX79-C2V7,113
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Nominal Zener Voltage | 2.7V | |
| Diode Configuration | Single | |
| Number of Elements per Chip | 1 | |
| Mounting Type | Through Hole | |
| Maximum Power Dissipation | 500 mW | |
| Package Type | DO-35 | |
| Zener Type | Voltage Regulator | |
| Zener Voltage Tolerance | 5% | |
| Pin Count | 2 | |
| Test Current | 5mA | |
| Maximum Zener Impedance | 100Ω | |
| Maximum Reverse Leakage Current | 20µA | |
| Dimensions | 4.25 x 1.85 x 1.85mm | |
| Minimum Operating Temperature | -65 °C | |
| Maximum Operating Temperature | +200 °C | |
| Typical Voltage Temperature Coefficient | -2mV/°C | |
Select all | ||
|---|---|---|
Brand Nexperia | ||
Nominal Zener Voltage 2.7V | ||
Diode Configuration Single | ||
Number of Elements per Chip 1 | ||
Mounting Type Through Hole | ||
Maximum Power Dissipation 500 mW | ||
Package Type DO-35 | ||
Zener Type Voltage Regulator | ||
Zener Voltage Tolerance 5% | ||
Pin Count 2 | ||
Test Current 5mA | ||
Maximum Zener Impedance 100Ω | ||
Maximum Reverse Leakage Current 20µA | ||
Dimensions 4.25 x 1.85 x 1.85mm | ||
Minimum Operating Temperature -65 °C | ||
Maximum Operating Temperature +200 °C | ||
Typical Voltage Temperature Coefficient -2mV/°C | ||
Zener Diodes 500mW, BZX79 Series, Nexperia
Zener Diodes, Nexperia
