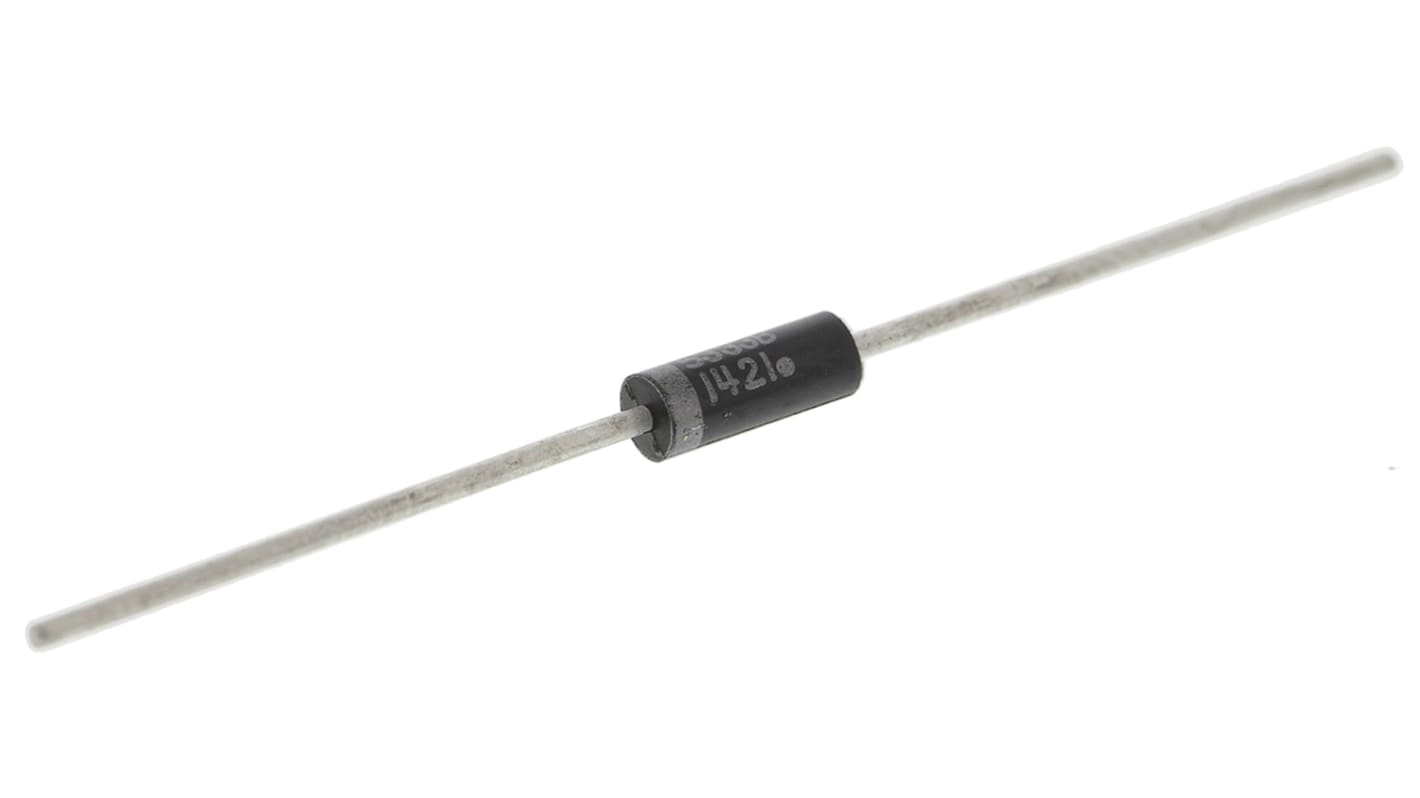

onsemi, 3.3V Zener Diode 5% 5 W Through Hole 2-Pin DO-15
- RS Stock No.:
- 463-379
- Mfr. Part No.:
- 1N5333BG
- Brand:
- onsemi
Available to back order for despatch 08/07/2024
Added
Price Each (In a Pack of 10)
£0.179
(exc. VAT)
£0.215
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 40 | £0.179 | £1.79 |
| 50 - 190 | £0.152 | £1.52 |
| 200 - 490 | £0.135 | £1.35 |
| 500 - 990 | £0.116 | £1.16 |
| 1000 + | £0.113 | £1.13 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 463-379
- Mfr. Part No.:
- 1N5333BG
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
Zener Diodes 5W Surmetic, 1N5333 to 1N5346 Series, ON Semiconductor
N Semiconductor 1N53 series is Surmetic™ 40 axial-leaded 5 Watt zener diode This axial lead device features a molded package which is void-free transfer−molded, thermosetting plastic, offers protection in most common environmental conditions, The voltage regulator has tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. The external surfaces are corrosion resistant and leads are readily solderable.
Applications
Industrial
Zener Diodes, ON Semiconductor
Specifications
sdjkfsjkd | Value |
|---|---|
| Nominal Zener Voltage | 3.3V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 5 W |
| Package Type | DO-15 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 5% |
| Pin Count | 2 |
| Test Current | 380mA |
| Maximum Zener Impedance | 3Ω |
| Maximum Reverse Leakage Current | 300µA |
| Dimensions | 8.89 x 3.68 x 3.68mm |
| Maximum Operating Temperature | +200 °C |
| Minimum Operating Temperature | -65 °C |
- RS Stock No.:
- 463-379
- Mfr. Part No.:
- 1N5333BG
- Brand:
- onsemi
