Neutrik Cable Mount XLR Connector, Male, 50 V, 3 Way, Silver Plating
- RS Stock No.:
- 329-7049
- Mfr. Part No.:
- NC3MXD
- Brand:
- Neutrik
View all XLR Connectors
1300 In stock - FREE next working day delivery available
100 available from Europe for delivery within 1 working day(s).
Price Each (In a Pack of 100)
£3.214
(exc. VAT)
£3.857
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 1400 | £3.214 | £321.40 |
| 1500 - 4900 | £3.118 | £311.80 |
| 5000 - 9900 | £3.025 | £302.50 |
| 10000 + | £2.938 | £293.80 |
| *price indicative | ||
- RS Stock No.:
- 329-7049
- Mfr. Part No.:
- NC3MXD
- Brand:
- Neutrik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
X Series XLR Cable Connector Trays
XLR connectors supplied in convenient, re-sealable trays.
Packs of 25 disassembled XLR's
Warning
Not to be used as mains connectors

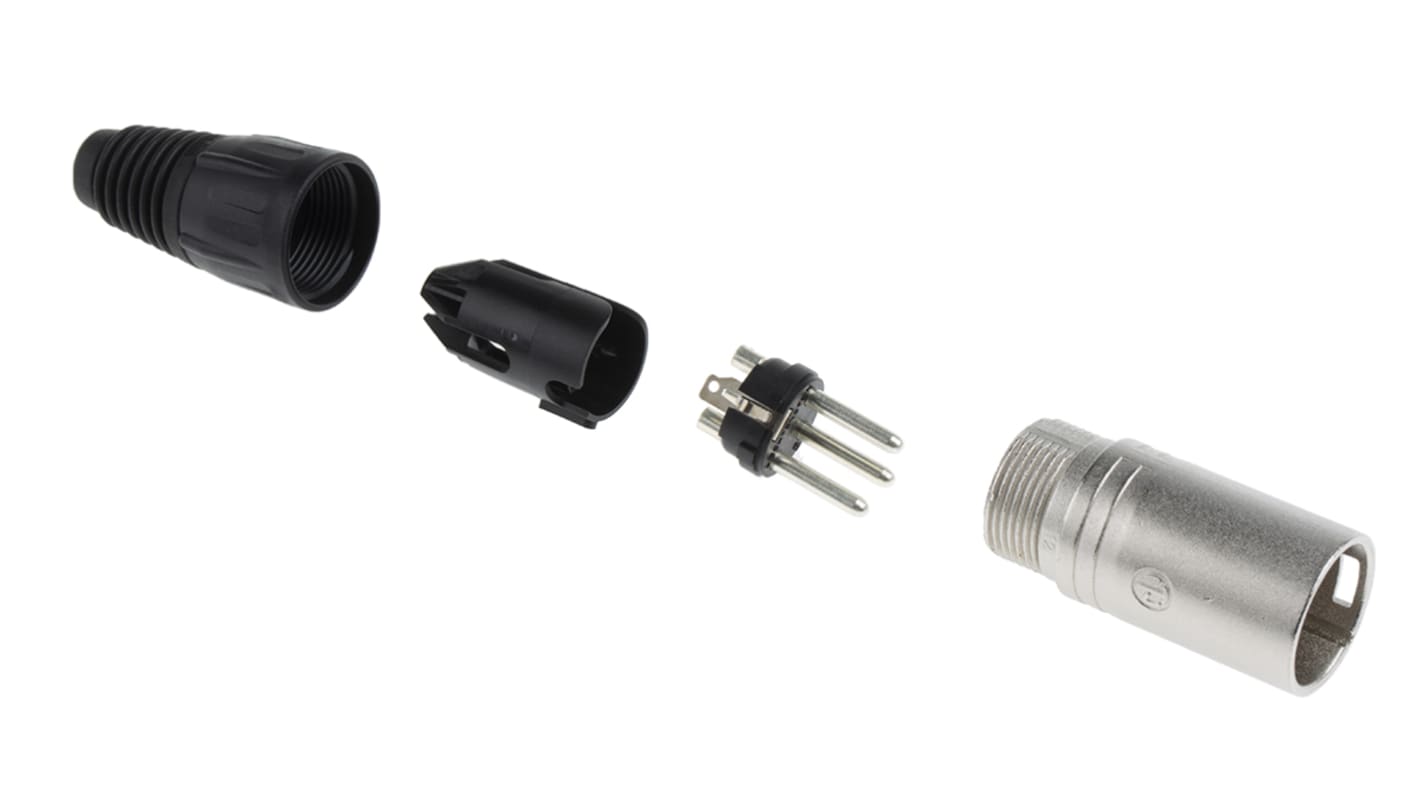

Neutrik XLR Connector
The Neutrik male XLR connector has three contacts with silver over nickel plating. Its has a current rating of 16A and the voltage rating of 50V. It has a compact design with sturdy die-cast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all the cables.
Warning:
Not to be used as mains connectors
Warning:
Not to be used as mains connectors
Features and Benefits
Boot with rubber gland gives high protection against bending stress
Coloured rings and boots available for coding and marking
Parts are polarised and securely fitted, thereby eliminating connector noise
Rugged zinc die-cast shell, long lasting and durable
Connector bodies is diecast zinc/aluminium
Insulator is polyester/nylon
Test voltage: 1500VAC
Contact resistance is ≤3mohm
Insertion force is ≤20N
Withdrawal force is ≤20N
Insulation resistance is ≥109ohm
Operating temperature ranging between -30°C and 80°C
Coloured rings and boots available for coding and marking
Parts are polarised and securely fitted, thereby eliminating connector noise
Rugged zinc die-cast shell, long lasting and durable
Connector bodies is diecast zinc/aluminium
Insulator is polyester/nylon
Test voltage: 1500VAC
Contact resistance is ≤3mohm
Insertion force is ≤20N
Withdrawal force is ≤20N
Insulation resistance is ≥109ohm
Operating temperature ranging between -30°C and 80°C
Certifications
UL approved
UL 94 HB approved
IP40 rated
IEC 61076-2-103
IEC 68-2-20
UL 94 HB approved
IP40 rated
IEC 61076-2-103
IEC 68-2-20
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 3 |
| Gender | Male |
| Mounting Type | Cable Mount |
| Body Orientation | Straight |
| Colour | Natural |
| Contact Plating | Silver |
| Housing Material | Zinc |
| Termination Method | Solder |
| Current Rating | 16A |
| Voltage Rating | 50 V |
| Contact Material | Brass |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +80°C |
