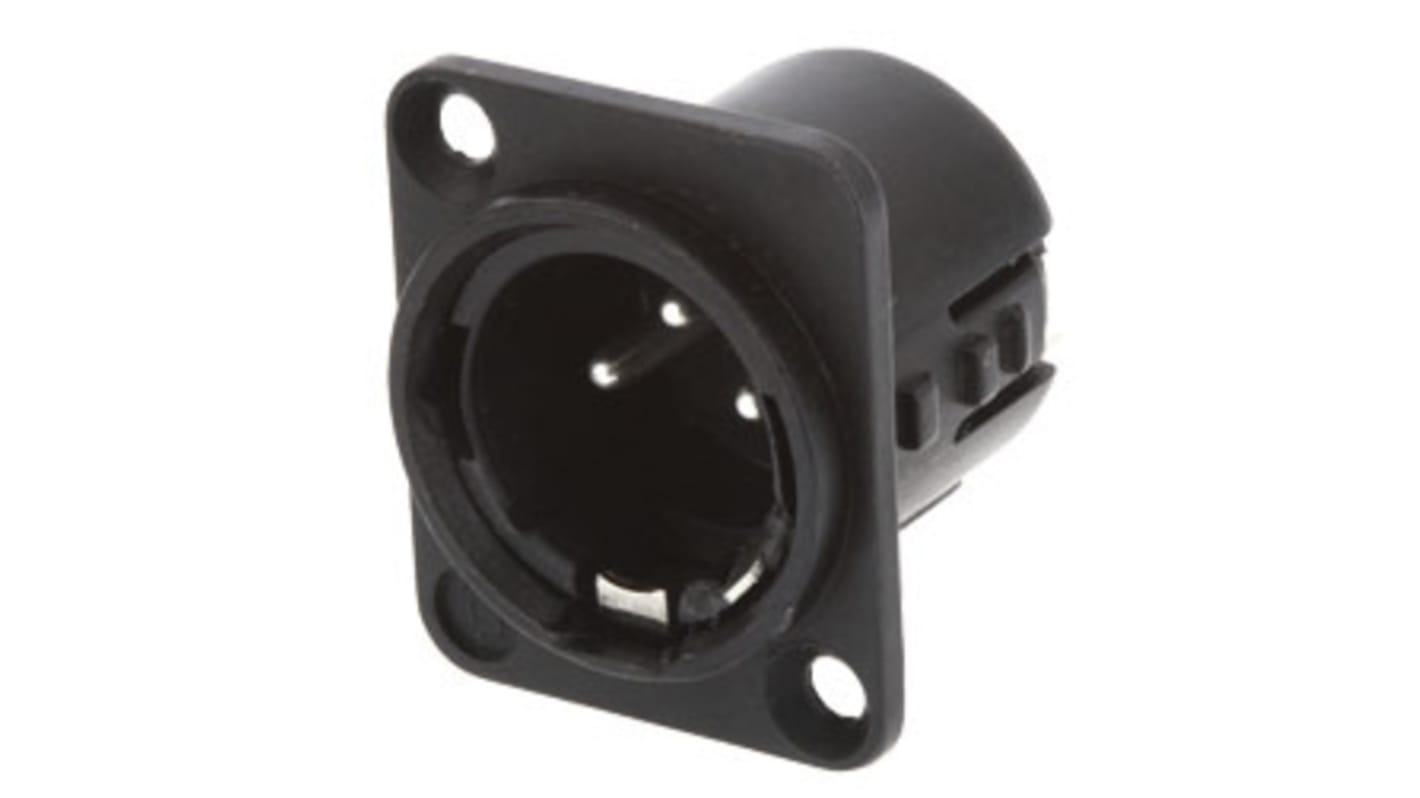

Deltron Panel XLR Connector, Straight, 50V ac Male, 3 Way, Silver Plating
- RS Stock No.:
- 180-6794
- Mfr. Part No.:
- 717-0301
- Brand:
- Deltron
Subtotal (1 unit)*
£4.59
(exc. VAT)
£5.51
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 25 unit(s) shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.59 |
*price indicative
- RS Stock No.:
- 180-6794
- Mfr. Part No.:
- 717-0301
- Brand:
- Deltron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deltron | |
| Product Type | XLR Connector | |
| Number of Contacts | 3 | |
| Current | 15A | |
| Mount Type | Panel | |
| Orientation | Straight | |
| Connector Gender | Male | |
| Colour | Silver | |
| Contact Plating | Silver | |
| Housing Material | Zinc Alloy | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -25°C | |
| Voltage | 50V ac | |
| Contact Gender | Male | |
| Contact Material | Brass | |
| Maximum Operating Temperature | 70°C | |
| Length | 28.6mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Deltron | ||
Product Type XLR Connector | ||
Number of Contacts 3 | ||
Current 15A | ||
Mount Type Panel | ||
Orientation Straight | ||
Connector Gender Male | ||
Colour Silver | ||
Contact Plating Silver | ||
Housing Material Zinc Alloy | ||
Termination Type Solder | ||
Minimum Operating Temperature -25°C | ||
Voltage 50V ac | ||
Contact Gender Male | ||
Contact Material Brass | ||
Maximum Operating Temperature 70°C | ||
Length 28.6mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- GB
THE 7000 UNIVERSAL RANGE OF AUDIO AND VIDEO CONNECTORS EMPLOYS MANY INNOVATIVE FEATURES UNIQUE TO THE DELTRON SERIES.THEY ARE SUITABLE FOR USE IN BOTH COMMERCIAL AND INDUSTRIAL ELECTRONIC APPLICATIONS,WHERE RELIABILITY, SIMPLE OPERATION AND THE ELIMINATION OF RF AND MECHANICAL INTERFERENCE IS NECESSARY. COMMON USES INCLUDED MIXING DESKS, TAPE RECORDERS, VIDEO RECORDERS,DAT RECORDERS AND TEST INSTRUCTIONS.
FEATURES
COMPLETELY INTERCHANGEABLE WITH ALL LEADING MANUFACTURES OF XLRS.
CAN BE MOUNTED FROM EITHER THE FRONT OR REAR FACE HOUSING IS A RUGGED DIE-CASTING OFFERING FULL RF PROTECTION, WITH SMALL INDUSTRIAL STANDARD FLANGE.
INSERT IS THERMOPLASTIC WITH HIGH MECHANICAL, THERMAL AND ELECTRICAL PROPERTIES,EXCELLENT CHEMICAL RESISTANCE AND DIMENSIONAL STABILITY.
CONTACTS ARE PRECISION MACHINED IN BRASS WITH GENEROUS SOLDER BUCKETS TO ACCEPT A WIDE RANGE OF CABLE SIZES.
SHELL TO GROUND TERMINAL IS SILVER PLATED STRAIGHT THROUGH CONNECTION.
