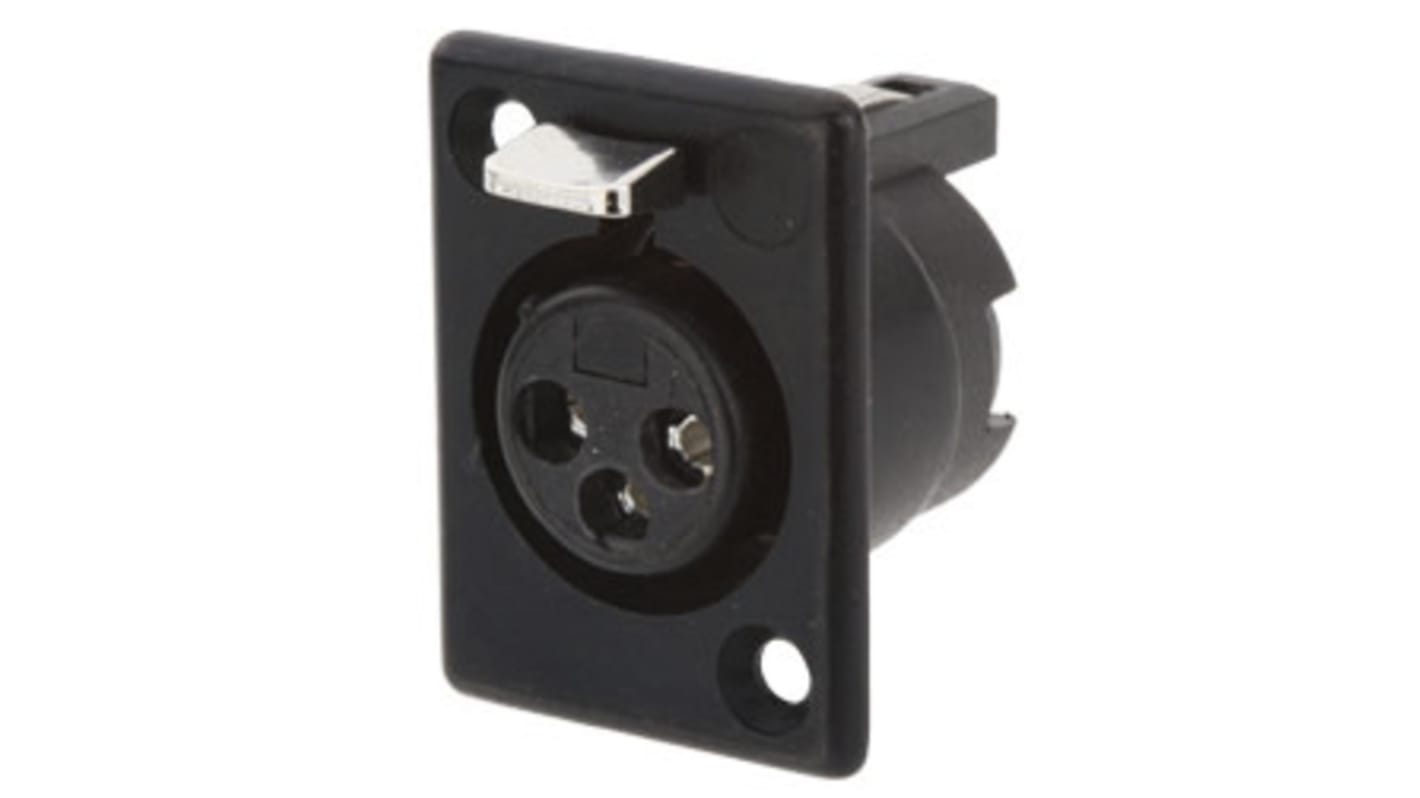

Deltron Panel Mount XLR Connector, Female, 50 V ac, 3 Way, Gold Plating
- RS Stock No.:
- 180-6765
- Mfr. Part No.:
- 706-0300
- Brand:
- Deltron
Available to back order for despatch when stock is available
Added
Price Each
£11.69
(exc. VAT)
£14.03
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £11.69 |
| 10 - 24 | £10.87 |
| 25 - 49 | £9.93 |
| 50 + | £9.23 |
- RS Stock No.:
- 180-6765
- Mfr. Part No.:
- 706-0300
- Brand:
- Deltron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
A range of panel mounting audio and video connectors incorporating many innovative features, compatible with all leading manufactures' cable plugs
Pressed socket contacts which 'float'to assist plug mating,also ensuring a positive 'Wrap round'contact with the pin,Which can 'move'with the pins should any movement occur between mating connectors.
A simple press down,squeeze clip release mechanism makes it particularly easy to use.
Generous solder buckets enable easier cable assembly as well as catering for larger conductive sizes.
Available in satin nickel or black chrome finish.
A simple press down,squeeze clip release mechanism makes it particularly easy to use.
Generous solder buckets enable easier cable assembly as well as catering for larger conductive sizes.
Available in satin nickel or black chrome finish.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 3 |
| Gender | Female |
| Mounting Type | Panel Mount |
| Contact Plating | Gold |
| Housing Material | Zinc Alloy |
| Termination Method | Screw |
| Current Rating | 15A |
| Voltage Rating | 50 V ac |
| Contact Material | Phosphor Bronze |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
