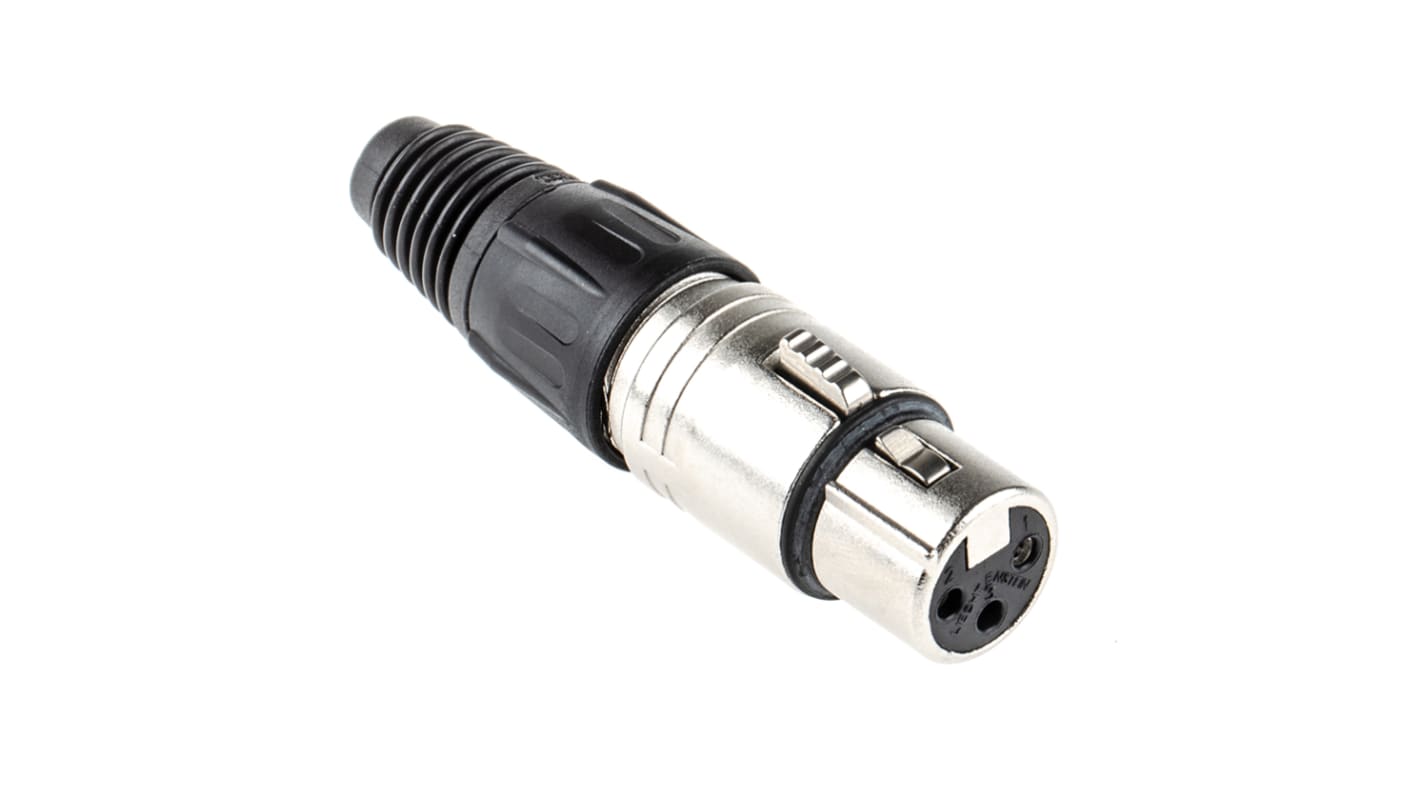

Neutrik Cable Mount XLR Connector, Female, 50 V, 3 Way, Silver over Nickel Plating
- RS Stock No.:
- 405-590
- Mfr. Part No.:
- NC3FX
- Brand:
- Neutrik
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£5.35
(exc. VAT)
£6.42
(inc. VAT)
- RS Stock No.:
- 405-590
- Mfr. Part No.:
- NC3FX
- Brand:
- Neutrik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Neutrik | |
| Number of Contacts | 3 | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Body Orientation | Straight | |
| Contact Plating | Silver over Nickel | |
| Housing Material | Zinc | |
| Termination Method | Solder | |
| Current Rating | 16A | |
| Voltage Rating | 50 V | |
| Contact Material | Bronze | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Neutrik | ||
Number of Contacts 3 | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Body Orientation Straight | ||
Contact Plating Silver over Nickel | ||
Housing Material Zinc | ||
Termination Method Solder | ||
Current Rating 16A | ||
Voltage Rating 50 V | ||
Contact Material Bronze | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- LI
X Series XLR Cable Connector Trays
XLR connectors supplied in convenient, re-sealable trays.
Packs of 25 disassembled XLR's
Warning
Not to be used as mains connectors
Neutrik XLR Connector
The Neutrik X series female XLR connector has three contacts with silver over nickel plating. It has a current rating is 16A and a voltage rating is 50V. It has a compact design with sturdy die-cast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.
Warning:
Not to be used as mains connectors
Warning:
Not to be used as mains connectors
Features and Benefits
Boot with rubber gland gives high protection against bending stress
Coloured rings and boots available for coding and marking
Parts are polarised and securely fitted, thereby eliminating connector noise
Rugged zinc die-cast shell, long lasting and durable
Connector bodies is die-cast zinc/aluminium
Insulator is polyester/nylon
Test voltage: 1500VAC
Contact resistance is ≤3mohm
Insertion force is ≤20N
Withdrawal force is ≤20N
Insulation resistance is ≥109ohm
Operating temperature ranging between -30°C and 80°C
Coloured rings and boots available for coding and marking
Parts are polarised and securely fitted, thereby eliminating connector noise
Rugged zinc die-cast shell, long lasting and durable
Connector bodies is die-cast zinc/aluminium
Insulator is polyester/nylon
Test voltage: 1500VAC
Contact resistance is ≤3mohm
Insertion force is ≤20N
Withdrawal force is ≤20N
Insulation resistance is ≥109ohm
Operating temperature ranging between -30°C and 80°C
Certifications
UL approved
UL 94 HB approved
IP40 rated
IEC 61076-2-103
IEC 68-2-20
UL 94 HB approved
IP40 rated
IEC 61076-2-103
IEC 68-2-20
Alternative product: 166-254
