- RS Stock No.:
- 166-456
- Mfr. Part No.:
- NC5MXX
- Brand:
- Neutrik
366 In stock - FREE next working day delivery available
7 available from Europe for delivery within 1 working day(s).
Added
Price Each
£5.65
(exc. VAT)
£6.78
(inc. VAT)
Units | Per unit |
1 - 4 | £5.65 |
5 - 9 | £5.49 |
10 - 24 | £5.31 |
25 - 49 | £5.15 |
50 + | £5.01 |
- RS Stock No.:
- 166-456
- Mfr. Part No.:
- NC5MXX
- Brand:
- Neutrik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- LI
Product Details

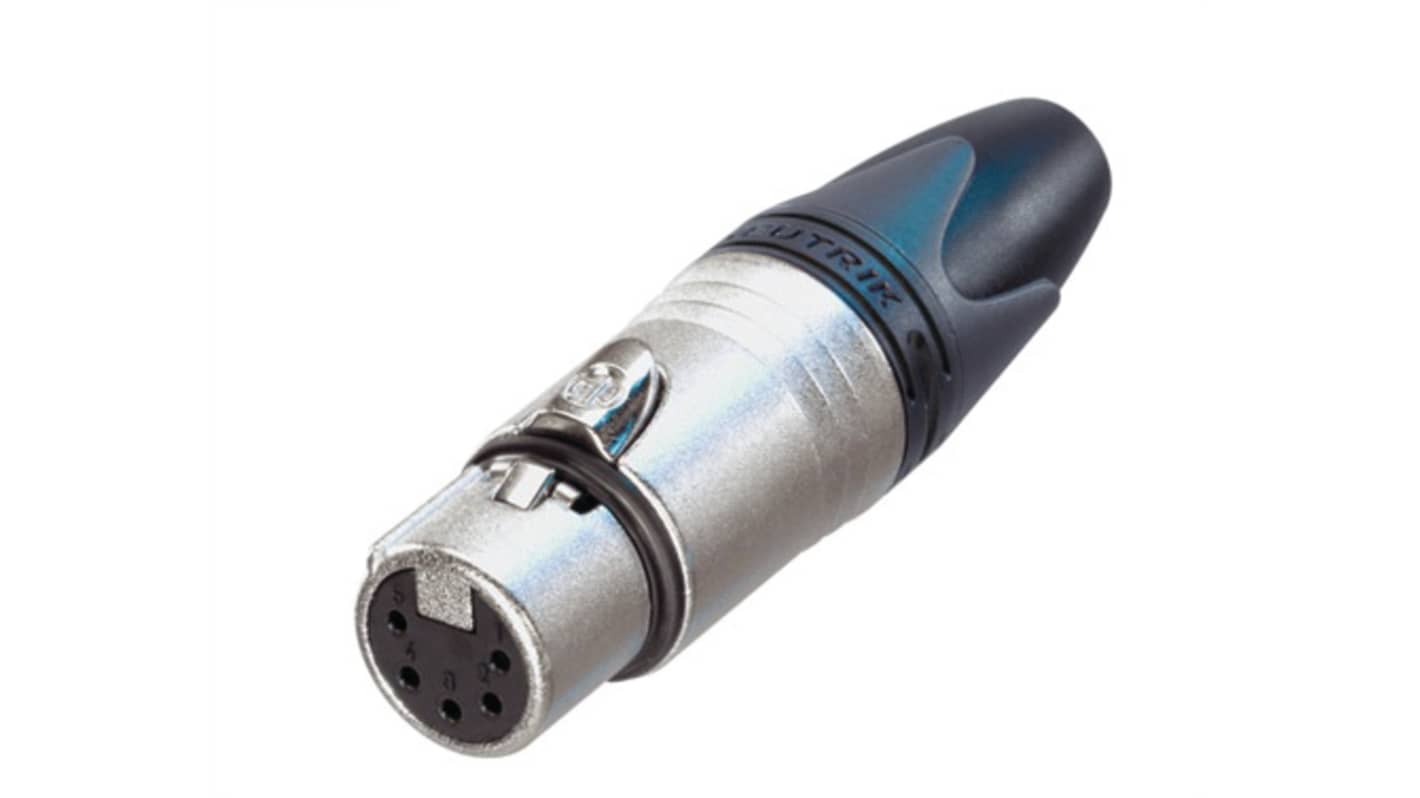

XX Series XLR Nickel Cable Connectors
From Neutrik, these XX series XLR connectors feature recessed locking, resulting in a secure connection and more stringent housing. With a chuck type strain relief and a polyurethane cable gland, these connectors have increased pull out force and are resistant to cable bending stress. Featuring a sturdy diecast construction, these XLR connectors are both easy to assemble and highly durable, with a mechanical lifetime of over 1000 mating cycles
The many advantages of the XX Series connectors result in a reliable and ergonomic XLR with excellent contact integrity.
The many advantages of the XX Series connectors result in a reliable and ergonomic XLR with excellent contact integrity.
Features & Benefits
Low contact resistance through the cage design of the female contact
Female contact with a solder barrier to prevent solder running into the contact mating area
Female connector with solid metal latch
Strain relief provides a high pull-out force making assembly easier and faster
Female contact with a solder barrier to prevent solder running into the contact mating area
Female connector with solid metal latch
Strain relief provides a high pull-out force making assembly easier and faster
Product Application Information
Whether in the studio or on the stage, XLR connectors are a recognised standard for microphone and PA connections. They also have further applications in video and lighting systems. An XLR connector is expected to provide a dependable connection in busy environments. The durability and quality of a connector is a top priority for people in professional audio and stage management roles.
Warning
Not to be used as mains connectors
Specifications
Attribute | Value |
---|---|
Number of Contacts | 5 |
Gender | Male |
Mounting Type | Cable Mount |
Body Orientation | Straight |
Contact Plating | Silver over Nickel |
Housing Material | Nylon |
Termination Method | Solder |
Current Rating | 7.5A |
Voltage Rating | 50 V |
Contact Material | Brass |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +80°C |
- RS Stock No.:
- 166-456
- Mfr. Part No.:
- NC5MXX
- Brand:
- Neutrik
