Digi International Xbee ZigBee Module, +18dBm, API, UART, USB Pan, RS232, RS485
- RS Stock No.:
- 771-6358
- Mfr. Part No.:
- XBP24-Z7PIT-004J
- Brand:
- Digi International
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 771-6358
- Mfr. Part No.:
- XBP24-Z7PIT-004J
- Brand:
- Digi International
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Digi International | |
| Receiver Sensitivity | -102dBm | |
| Maximum Output Power | +18dBm | |
| Supported Bus Interfaces | API, UART, USB | |
| Protocol Type | Xbee | |
| Supported Network Interfaces | Pan, RS232, RS485 | |
| Supply Voltage | 3 → 3.4V | |
| Dimensions | 32.94 x 24.38 x 2.79mm | |
| Height | 2.79mm | |
| Length | 24.38mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 32.94mm | |
Select all | ||
|---|---|---|
Brand Digi International | ||
Receiver Sensitivity -102dBm | ||
Maximum Output Power +18dBm | ||
Supported Bus Interfaces API, UART, USB | ||
Protocol Type Xbee | ||
Supported Network Interfaces Pan, RS232, RS485 | ||
Supply Voltage 3 → 3.4V | ||
Dimensions 32.94 x 24.38 x 2.79mm | ||
Height 2.79mm | ||
Length 24.38mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 32.94mm | ||

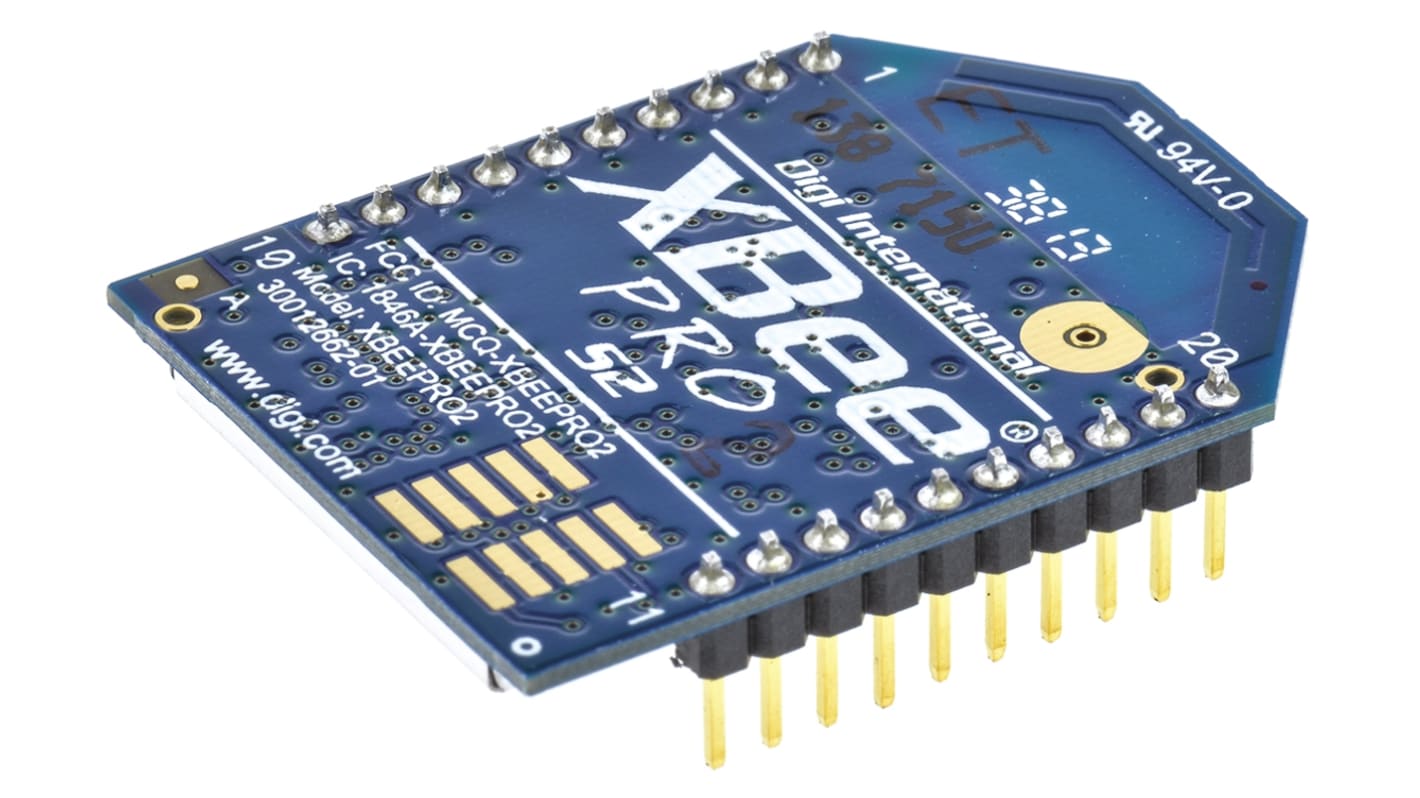

XBee-PRO ZB ZigBee RF Module
The XBee-PRO ZB ZigBee RF module operates in the 2.4GHz ISM Band and allows the formation of a mesh network. With its high receiver sensitivity it can provide line-of-sight communication for up to 750m.
Carrier frequency: 2.4GHz ISM band with 14 channels
RF Power Output: +10dBm
Receiver Sensitivity: -102dBm @ 1% PER
Interference control: Direct Sequence Spread Spectrum (DSSS), Packet Retry/Acknowledgement
OTA Date Rate: up to 250kbps
Host communication: serial UART with RTS/CTS flow control
Supported network topologies: Point-to-Point, Point-to-Multipoint, Peer-to-Peer & Mesh
Self-routing, self-healing and fault-tolerant mesh networking
AES-128 encryption
Antenna: Whip ( RS 667-2991), External via U.FL (RS 667-2998), PCB (RS 771-6358), RPSMA (RS 667-2989)
4 channel 10-bit ADC
16 x GPIO pins
Power supply: +3.0V to +3.4Vdc
Operating temperature range: -40 to +85°C
Dimensions: 24.4 x 33 x 3mm DIP
Applications: Wireless sensor networks, communication for the Internet of Things (IoT)
RF Power Output: +10dBm
Receiver Sensitivity: -102dBm @ 1% PER
Interference control: Direct Sequence Spread Spectrum (DSSS), Packet Retry/Acknowledgement
OTA Date Rate: up to 250kbps
Host communication: serial UART with RTS/CTS flow control
Supported network topologies: Point-to-Point, Point-to-Multipoint, Peer-to-Peer & Mesh
Self-routing, self-healing and fault-tolerant mesh networking
AES-128 encryption
Antenna: Whip ( RS 667-2991), External via U.FL (RS 667-2998), PCB (RS 771-6358), RPSMA (RS 667-2989)
4 channel 10-bit ADC
16 x GPIO pins
Power supply: +3.0V to +3.4Vdc
Operating temperature range: -40 to +85°C
Dimensions: 24.4 x 33 x 3mm DIP
Applications: Wireless sensor networks, communication for the Internet of Things (IoT)
Note
ZB and ZNet 2.5 firmware are similar in nature, but not over-the-air compatible. Devices running ZNet 2.5 firmware cannot communicate with devices running ZB firmware.
Approvals
FCC, IC, ETSI, C-TICK, Japan
