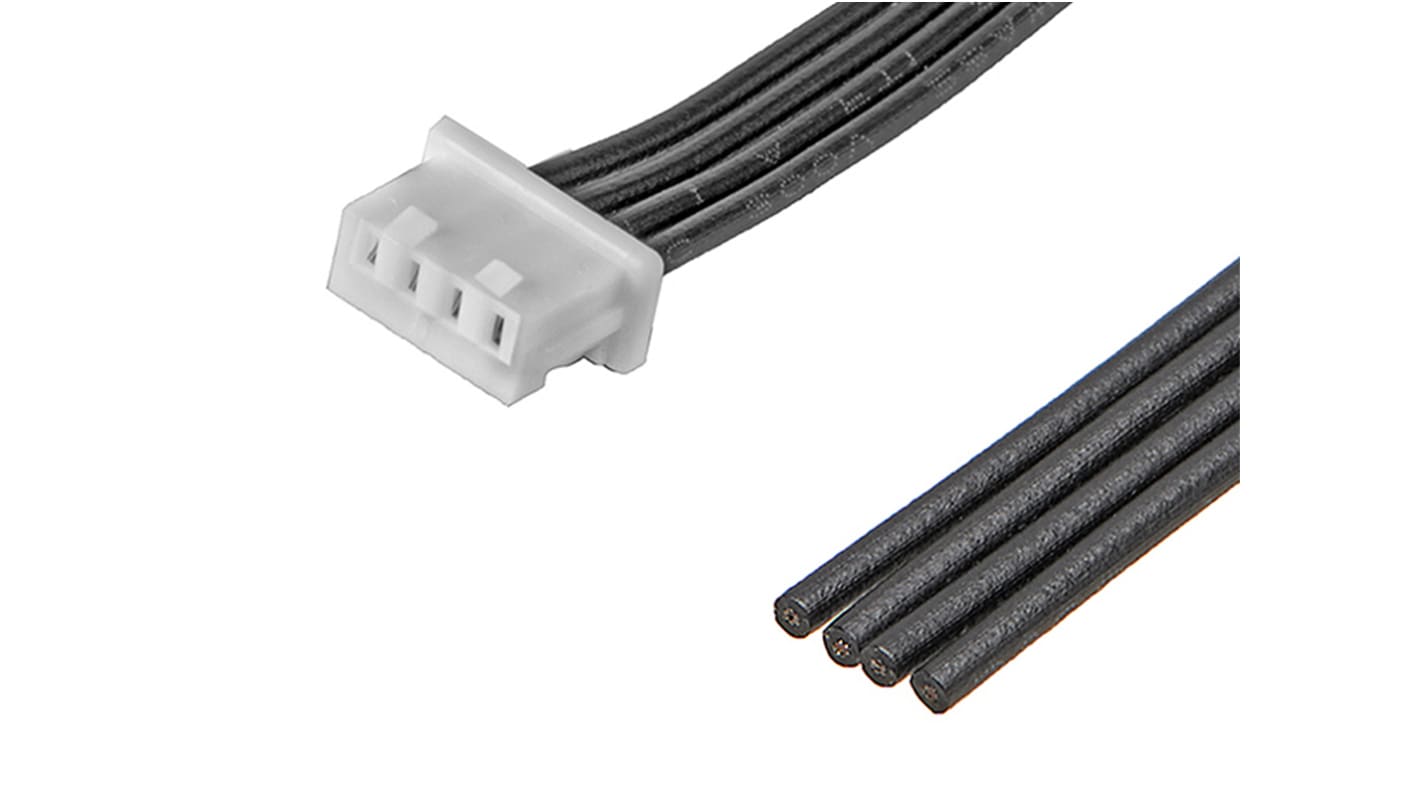

Molex 4 Way Female PicoBlade Unterminated Wire to Board Cable, 225mm
- RS Stock No.:
- 224-8605
- Mfr. Part No.:
- 2181120402
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 50 units)*
£120.55
(exc. VAT)
£144.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 550 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
50 - 200 | £2.411 | £120.55 |
250 - 450 | £2.233 | £111.65 |
500 + | £2.153 | £107.65 |
*price indicative
- RS Stock No.:
- 224-8605
- Mfr. Part No.:
- 2181120402
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Connector 1 | PicoBlade | |
Series | PicoBlade | |
Series Number | 218112 | |
Connector 2 | Unterminated | |
Connector 1 Gender | Female | |
Connector 1 Number of Contacts | 4 | |
Pitch | 1.25mm | |
Cable Length | 225mm | |
Select all | ||
---|---|---|
Brand Molex | ||
Connector 1 PicoBlade | ||
Series PicoBlade | ||
Series Number 218112 | ||
Connector 2 Unterminated | ||
Connector 1 Gender Female | ||
Connector 1 Number of Contacts 4 | ||
Pitch 1.25mm | ||
Cable Length 225mm | ||
Molex PicoBlade Series Wire to Board Cable, 1.25mm Pitch, PicoBlade Connector 1 - 2181120402
This wire-to-board cable provides a reliable solution for connecting electronic components. It features a PicoBlade female connector paired with a pigtail end, facilitating efficient signal and power transfers. Its robust construction serves various electronic applications, making it valuable in automation, electrical, and mechanical industries.
Features & Benefits
• Utilises a 1.25mm pitch design for compact connections
• Supports up to 4 circuits for versatile applications
• Female connector cable enhances accessibility during installations
• Ensures effective signal integrity across connections
• Made from high-quality materials for durability
• Compatible with various PicoBlade connectors for seamless integration
• Supports up to 4 circuits for versatile applications
• Female connector cable enhances accessibility during installations
• Ensures effective signal integrity across connections
• Made from high-quality materials for durability
• Compatible with various PicoBlade connectors for seamless integration
Applications
• Connects PCB components securely
• Suitable for requiring single-ended connections
• Ideal for signal transmission in compact devices
• Used in custom cable solutions for specific connectivity needs
• Employed in creating electronics wiring harnesses for efficiency
• Suitable for requiring single-ended connections
• Ideal for signal transmission in compact devices
• Used in custom cable solutions for specific connectivity needs
• Employed in creating electronics wiring harnesses for efficiency
How many circuits does it support?
It supports up to four circuits, allowing flexible connections in your projects.
What materials are used in its construction?
It comprises phosphor bronze for the metal components and polyester for the insulation, ensuring reliability.
Can it be used with different types of connectors?
Yes, it is compatible with several PicoBlade connector types for versatile usage.
What is the maximum wire size it accommodates?
It accommodates wire sizes up to 28AWG, catering to various installation needs.
