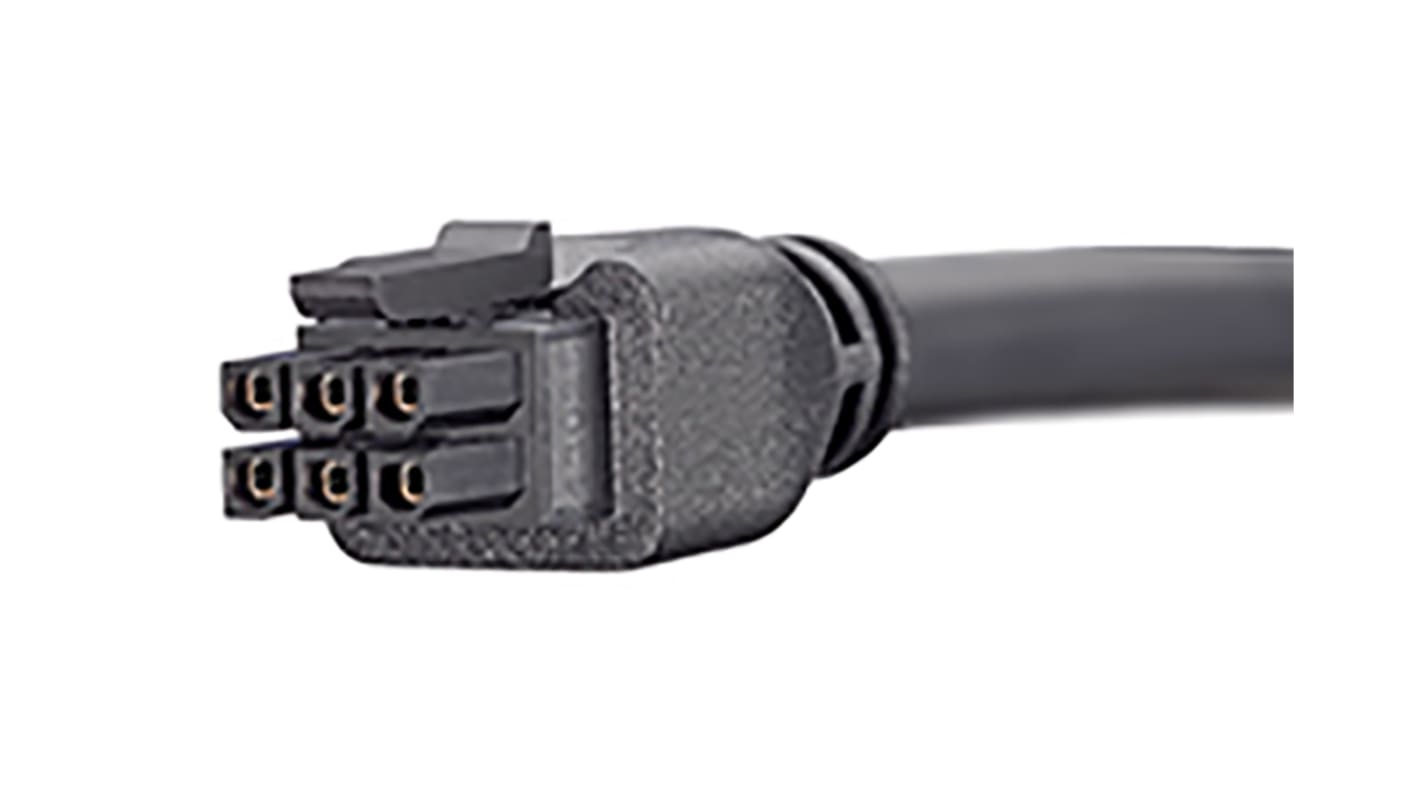

Molex 6 Way Female Micro-Fit 3.0 to 6 Way Female Micro-Fit 3.0 Wire to Board Cable, 2m
- RS Stock No.:
- 189-1444
- Mfr. Part No.:
- 245132-0620
- Brand:
- Molex
Bulk discount available
Subtotal (1 box of 50 units)*
£751.00
(exc. VAT)
£901.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
50 - 50 | £15.02 | £751.00 |
100 - 100 | £14.603 | £730.15 |
150 - 150 | £14.209 | £710.45 |
200 - 200 | £13.835 | £691.75 |
250 + | £13.48 | £674.00 |
*price indicative
- RS Stock No.:
- 189-1444
- Mfr. Part No.:
- 245132-0620
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Connector 1 | Micro-Fit 3.0 | |
Series | Micro-Fit 3.0 | |
Series Number | 245132 | |
Connector 2 | Micro-Fit 3.0 | |
Connector 1 Gender | Female | |
Connector 2 Gender | Female | |
Connector 1 Number of Contacts | 6 | |
Connector 2 Number of Contacts | 6 | |
Connector 1 Housing Gender | Male | |
Connector 2 Housing Gender | Male | |
Pitch | 3mm | |
Sheath Colour | Black | |
Cable Length | 2m | |
Voltage Rating | 300 V ac | |
Current Rating | 5.6 A | |
Contact Plating | Tin | |
Operating Temperature Range | -20 → +80 °C | |
Select all | ||
---|---|---|
Brand Molex | ||
Connector 1 Micro-Fit 3.0 | ||
Series Micro-Fit 3.0 | ||
Series Number 245132 | ||
Connector 2 Micro-Fit 3.0 | ||
Connector 1 Gender Female | ||
Connector 2 Gender Female | ||
Connector 1 Number of Contacts 6 | ||
Connector 2 Number of Contacts 6 | ||
Connector 1 Housing Gender Male | ||
Connector 2 Housing Gender Male | ||
Pitch 3mm | ||
Sheath Colour Black | ||
Cable Length 2m | ||
Voltage Rating 300 V ac | ||
Current Rating 5.6 A | ||
Contact Plating Tin | ||
Operating Temperature Range -20 → +80 °C | ||
- COO (Country of Origin):
- CN
Micro-fit 3.0-to-Micro-Fit 3.0 Off-the-Shelf (OTS) Overmolded Cable Assembly, Dual Row, 2.0m Length, 6 Circuits, Black
Provides quick availability for development and production programs
Overmolded strain relief
Reduces mechanical stress on wires and terminals
Positive latching
Ensures secure retention when receptacle and header or receptacle and plug are mated. Prevents accidental unmating
Capable of carrying 5.0A of current
Ideal for many signal and power applications
Locking tang on terminals
Secures terminals in housings
Polarized mating geometry
Prevents accidental mis-mating
Applications
Consumer
Office equipment
Fan tray assemblies
Gaming and vending
Data/Computing
Personal computers
Computers, work stations and servers
Work Stations
Office Equipment
Vending Machines
Overmolded strain relief
Reduces mechanical stress on wires and terminals
Positive latching
Ensures secure retention when receptacle and header or receptacle and plug are mated. Prevents accidental unmating
Capable of carrying 5.0A of current
Ideal for many signal and power applications
Locking tang on terminals
Secures terminals in housings
Polarized mating geometry
Prevents accidental mis-mating
Applications
Consumer
Office equipment
Fan tray assemblies
Gaming and vending
Data/Computing
Personal computers
Computers, work stations and servers
Work Stations
Office Equipment
Vending Machines
