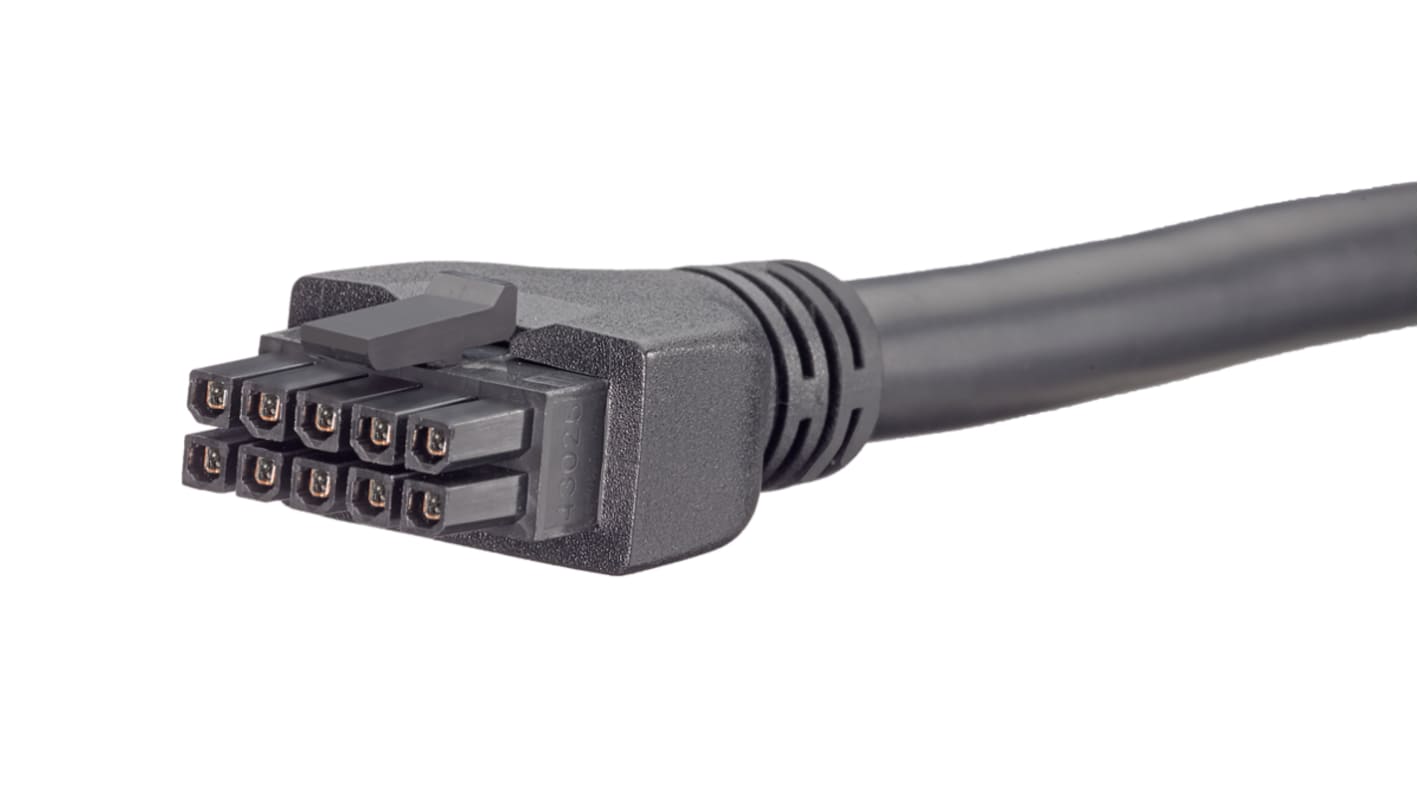

Molex 10 Way Female Micro-Fit 3.0 to 10 Way Female Micro-Fit 3.0 Wire to Board Cable, 2 m

View all Wire to Board Cables
Unavailable
RS will no longer stock this product.
RS Stock No.:
125-1624
Distrelec Article No.:
301-22-938
Mfr. Part No.:
245132-1020
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Connector Type A

Micro-Fit 3.0

Product Type

Wire to Board Cable

Series

245132

Connector Type B

Micro-Fit 3.0

Connector Gender A

Female

Number of Rows A

2

Number of Rows B

2

Connector Gender B

Female

Number of Contacts A

10

Number of Contacts B

10

Jacket Colour

Black

Cable Length

2m

Jacket Material

Polyvinyl Chloride

Voltage

300 V

Standards/Approvals

RoHS, REACH, UL

COO (Country of Origin):
CN

Molex 245132 Series Wire to Board Cable, 2m Cable Length, 300V Voltage Rating - 245132-1020


This wire to board cable is engineered for robust power connectivity, featuring Micro-Fit 3.0 connectors on both ends. With a total cable length of 2m, this component is designed to meet diverse electrical demands. Its dual female connectors and a reliable operating temperature range of -40 to +105 °C make it suitable for various applications in the electrical, automation, and mechanical industries.

Features & Benefits


• Dual Micro-Fit 3.0 connectors ensure a secure connection

• Female connector configuration supports versatile installations

• 300V voltage rating for safe power delivery

• 3A current rating accommodates substantial loads

• Phosphor bronze contacts enhance conductivity and durability

• Black sheath colour aids in identifying and organising wiring

Applications


• Used for connecting power supplies to PCBs in automation systems

• Ideal for powering devices in electrical networking

• Suitable for requiring reliable connections in mechanical systems

• Commonly employed in robotics and industrial machinery setups

What wire gauge is suitable for connections with this cable?


Using wire gauges that support a current rating of up to 3A is recommended for optimal performance, ensuring minimal voltage drop and maximum efficiency.

How does the operating temperature range affect the cable's performance?


The wide operating temperature range of -40 to +105 °C ensures this cable maintains performance in extreme environmental conditions, making it reliable for varied applications.

What kind of insulation is used in this cable?


The cable features a high-quality insulation that safeguards against electrical interference and enhances the lifespan of the product while ensuring safe operation.

Is this cable compatible with other connector types?


While the cable features Micro-Fit 3.0 connectors, it is essential to ensure compatibility with corresponding connector types to guarantee secure and efficient connectivity.
