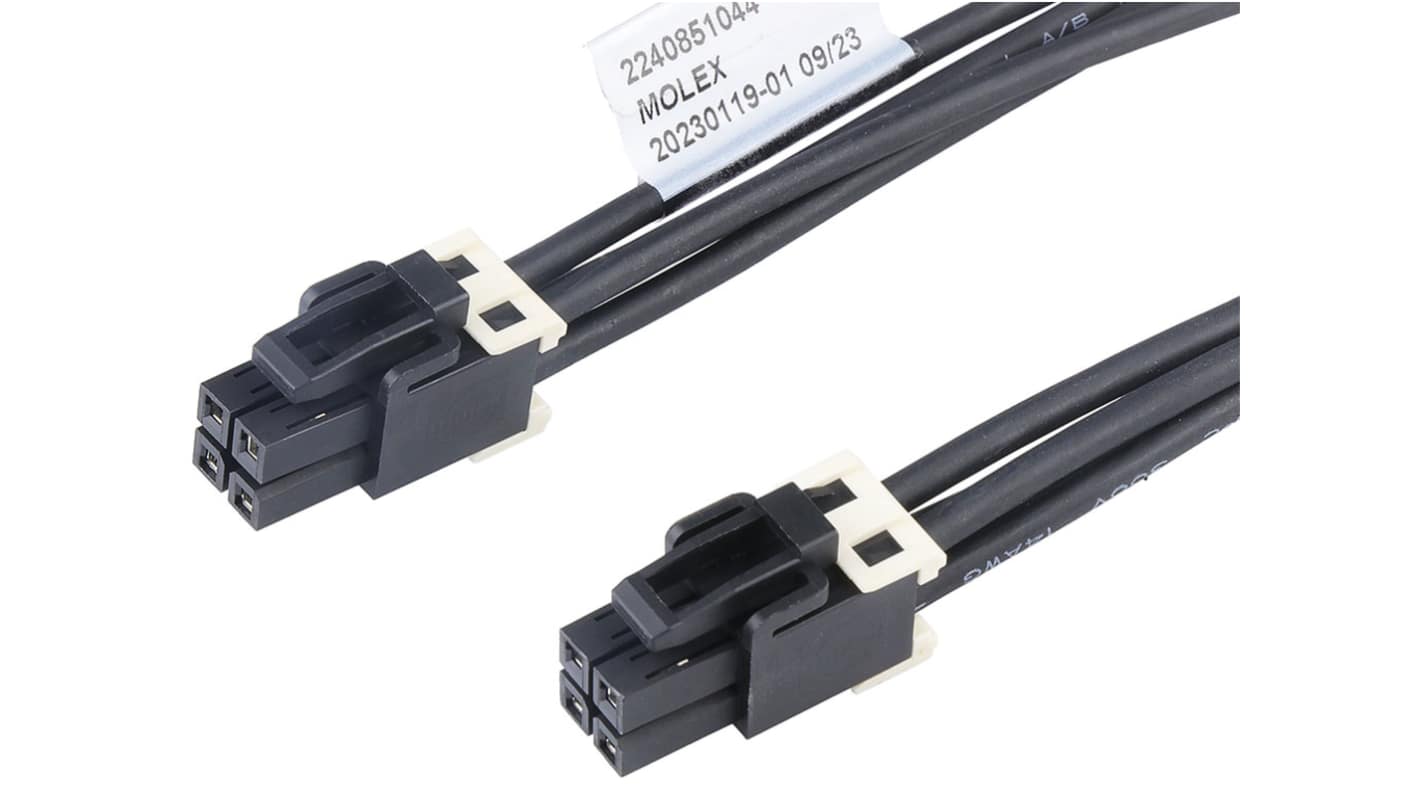

Molex 4 Way Female Crimped Terminal to 4 Way Female Crimped Terminal Wire to Board Cable Assembly, 150mm
- RS Stock No.:
- 536-569
- Mfr. Part No.:
- 2240851042
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£5.82
(exc. VAT)
£6.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
| Units | Per unit |
|---|---|
| 1 - 9 | £5.82 |
| 10 - 24 | £5.36 |
| 25 + | £4.83 |
*price indicative
- RS Stock No.:
- 536-569
- Mfr. Part No.:
- 2240851042
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
| Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 224085 | |
| Connector 1 | Crimped Terminal | |
| Connector 2 | Crimped Terminal | |
| Series Number | 224085 | |
| Connector 1 Gender | Female | |
| Connector 2 Gender | Female | |
| Connector 1 Number of Contacts | 4 | |
| Connector 2 Number of Contacts | 4 | |
| Cable Length | 150mm | |
| Select all | ||
|---|---|---|
| Brand Molex | ||
| Series 224085 | ||
| Connector 1 Crimped Terminal | ||
| Connector 2 Crimped Terminal | ||
| Series Number 224085 | ||
| Connector 1 Gender Female | ||
| Connector 2 Gender Female | ||
| Connector 1 Number of Contacts 4 | ||
| Connector 2 Number of Contacts 4 | ||
| Cable Length 150mm | ||
- COO (Country of Origin):
- IN
The Molex Off-the-Shelf (OTS) Cable Assembly features a dual-row design with tin (Sn) plating, tailored for power and wire-to-board applications. It has a dual-ended connector configuration, connecting Mini-Fit Max to Mini-Fit Max. The assembly supports up to 20A per contact and a maximum voltage of 600V AC (RMS). It uses high conductivity copper for metal components, with tin plating on both mating and termination areas. The connectors are female-to-female and include a locking mechanism for secure mating.
Eu RoHS compliant
Low halogen
IEC-62474 compliant
Made of Nylon
Low halogen
IEC-62474 compliant
Made of Nylon
