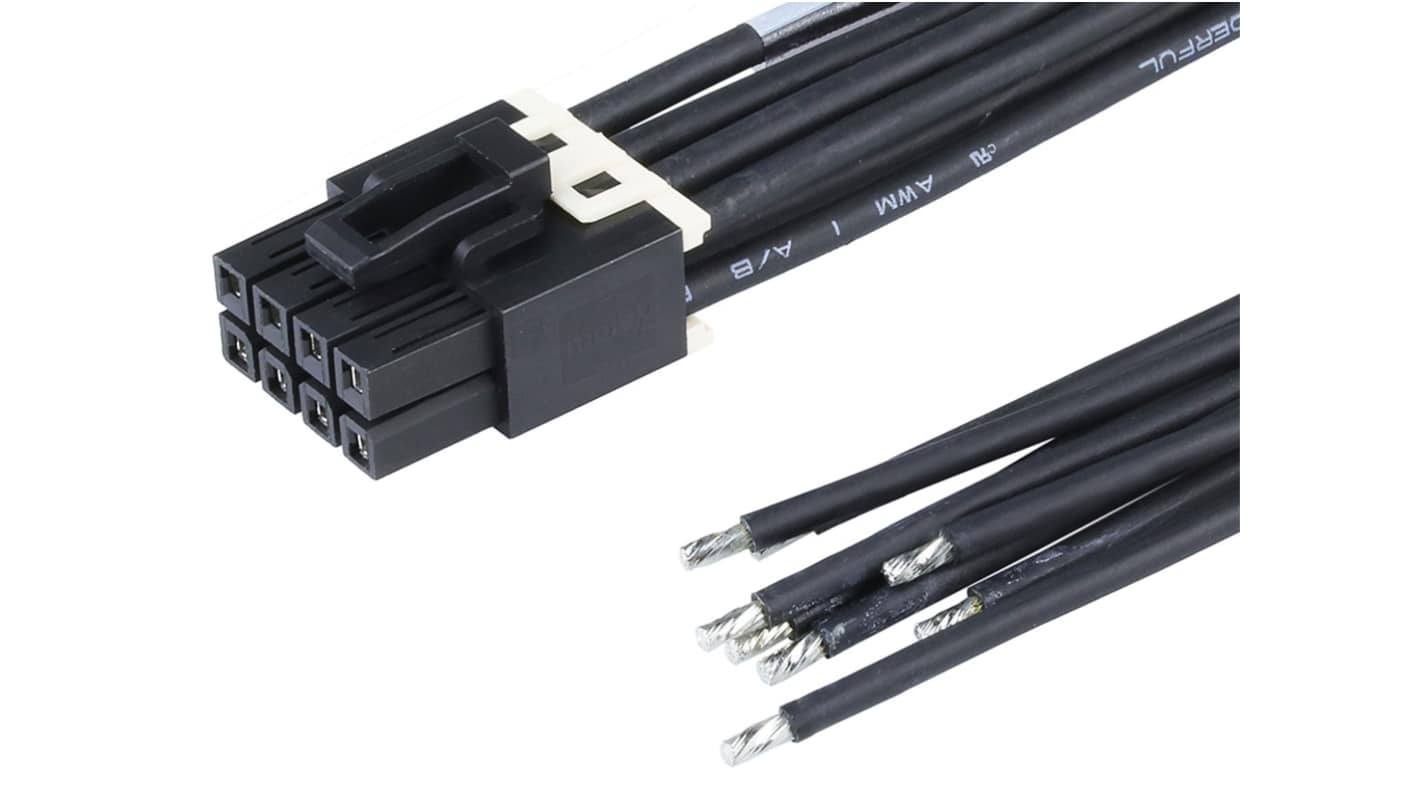

Molex 8 Way Female Crimped Terminal to 8 Way Male Pigtail Wire to Board Cable Assembly, 600mm

View all Wire to Board Cables
Bulk discount available

Subtotal (1 unit)*

£19.98

(exc. VAT)

£23.98

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£19.98
10 +£18.39

*price indicative

RS Stock No.:
536-386
Mfr. Part No.:
2240861084
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Connector 1

Crimped Terminal

Series

224086

Series Number

224086

Connector 2

Pigtail

Connector 1 Gender

Female

Connector 2 Gender

Male

Connector 1 Number of Contacts

8

Connector 2 Number of Contacts

8

Cable Length

600mm

COO (Country of Origin):
IN
The Molex Off-the-Shelf Cable Assembly features a dual-row design with tin (Sn) plating, designed for power applications in both wire-to-board and wire-to-wire configurations. It has a single-ended connector setup, connecting a Mini-Fit Max connector to a pigtail. Supporting up to 20A per contact and a maximum voltage of 600V AC (RMS), this assembly ensures robust performance. It uses high conductivity copper for metal components, with tin plating on both mating and termination areas. The gender is female-to-pigtail, and it includes a locking mechanism for secure mating.

Eu RoHS compliant
Low halogen
IEC-62474 compliant
Made of Nylon
