RS PRO Steel 3mm Diameter Wire Rope Clamp

Subtotal (1 bag of 6 units)*

£6.38

(exc. VAT)

£7.66

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 370 unit(s) shipping from 06 October 2025
  • Plus 149 unit(s) shipping from 06 October 2025
  • Plus 135 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 +£6.38£1.063

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Each

£5.52

(exc. VAT)

£6.62

(inc. VAT)

RS Stock No.:
491-5388
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Specification

DIN 1142

Wire Rope Diameter

3mm

Material

Steel

RoHS Status: Exempt

COO (Country of Origin):
CN

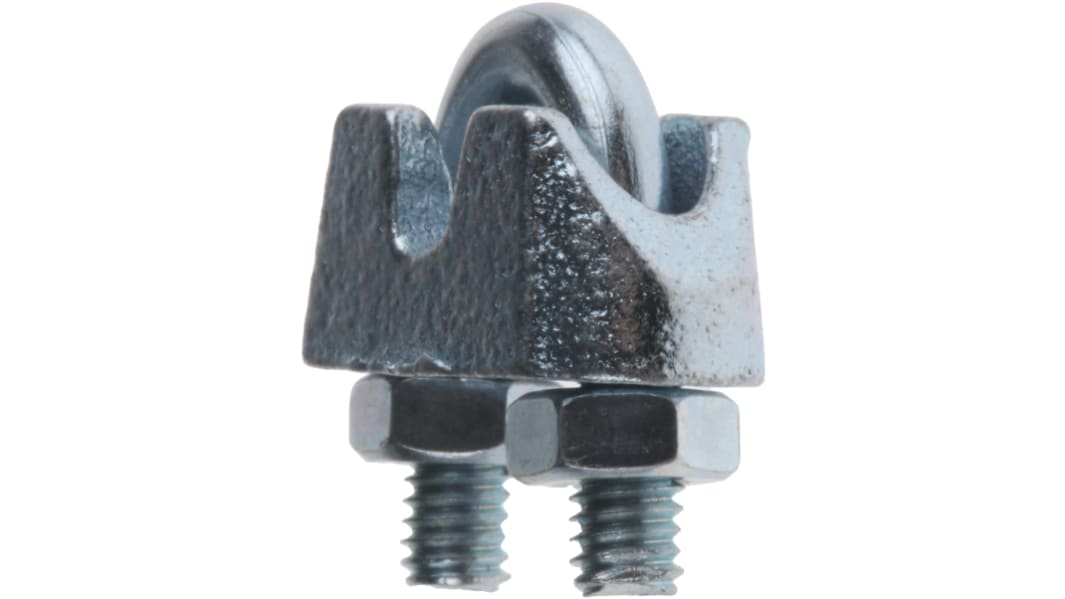

RS PRO Steel Wire Rope Clamp, DIN 1142


This RS PRO steel wire rope clamp consists of a U-shaped bolt and a saddle secured by two nuts. It's used to clamp the loose end of a wire rope and loop it back to form an eye so that two wire rope ends can be joined together safely.

The rope clamp is made with zinc-plated steel, which has been treated with a galvanised coating finish. The zinc-plating and the galvanisation process protect the rope clamp from atmospheric conditions and corrosive agents. The galvanised coating has an adhesive strength of up to seven times that of organic paint coatings.

As an RS PRO quality product, this rope clamp has been tested for safety. It meets the European standard EN 13411-5:203 for minimum safety requirements for U-bolt wire rope grips on steel wire ropes. It's designed for fencing applications and isn't suitable for lifting.

Features and Benefits


• Diameter of 3 mm
• Made from steel
• Zinc-plated wire
• Galvanised coating finish
• Complies with DIN 1142 safety specifications
• Meets EU standard EN 13411-5:203 for minimum safety requirements for U-bolt wire rope grips
• Do NOT alternate in position on the rope
• Do NOT use to join two lengths of rope unless via two eyes

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

This is not for lifting applications.
