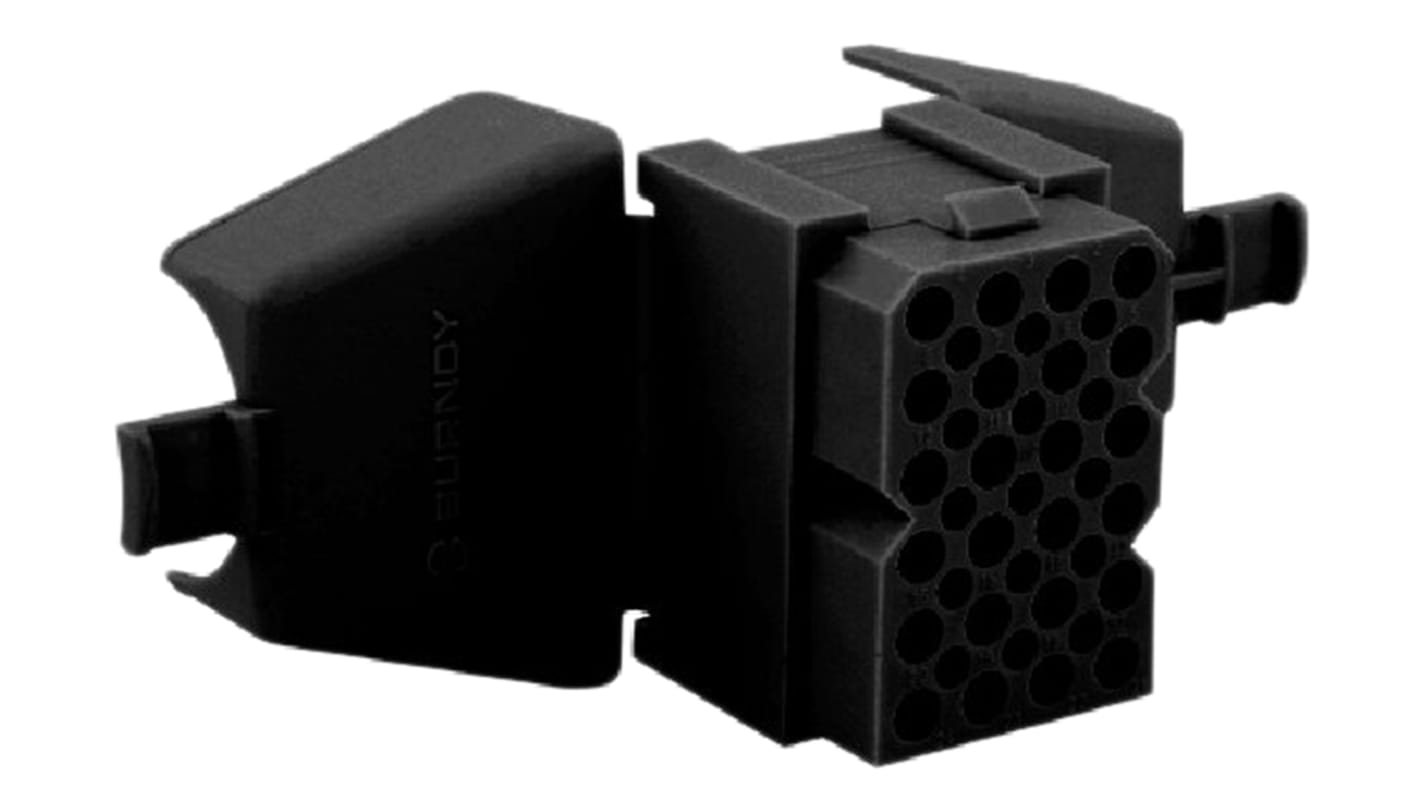

Souriau Sunbank by Eaton, SMS Female Connector Housing, 24 Way, 6 Row
- RS Stock No.:
- 908-3405
- Mfr. Part No.:
- SMS24RDH1
- Brand:
- Souriau Sunbank by Eaton
Bulk discount available
Subtotal (1 pack of 5 units)*
£32.63
(exc. VAT)
£39.155
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 550 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £6.526 | £32.63 |
| 50 - 245 | £6.01 | £30.05 |
| 250 - 495 | £5.436 | £27.18 |
| 500 - 745 | £4.856 | £24.28 |
| 750 + | £4.568 | £22.84 |
*price indicative
- RS Stock No.:
- 908-3405
- Mfr. Part No.:
- SMS24RDH1
- Brand:
- Souriau Sunbank by Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Souriau Sunbank by Eaton | |
| Number of Contacts | 24 | |
| Number of Rows | 6 | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | SMS | |
| For Use With | Quick Mating PCB Connector | |
| Body Orientation | Straight | |
| Length | 90.4mm | |
| Width | 57.2mm | |
| Housing Material | Polyamide | |
Select all | ||
|---|---|---|
Brand Souriau Sunbank by Eaton | ||
Number of Contacts 24 | ||
Number of Rows 6 | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series SMS | ||
For Use With Quick Mating PCB Connector | ||
Body Orientation Straight | ||
Length 90.4mm | ||
Width 57.2mm | ||
Housing Material Polyamide | ||
- COO (Country of Origin):
- BE
Souriau SMS Series Quick Mating Cable Mount Receptacle Housings
SMS series quick mating cable mount receptacle housings with a compact design and 'push to mate' and 'press & release to unmate' interconnection system that enables quick assembly and installation without the need for any additional hardware. These SMS series quick mating cable mount receptacle connectors also feature positive polarization keys to prevent mismating, discrimination cavities in beween the contact cavities and integrated strain relief hoods that can accept a wide range of cables.
Available from 2 position to 36 position, these SMS series quick mating cable connectors use size 16 TRIM TRIO 1.6mm diameter snap-lock pin and socket contacts which need to be purchased separately (see stock number 687-6364 typically)
For mating connectors see SMS series quick mating cable mount plug housings
Available from 2 position to 36 position, these SMS series quick mating cable connectors use size 16 TRIM TRIO 1.6mm diameter snap-lock pin and socket contacts which need to be purchased separately (see stock number 687-6364 typically)
For mating connectors see SMS series quick mating cable mount plug housings
Souriau SMS Series Quick Mating Wire to Board Connectors
