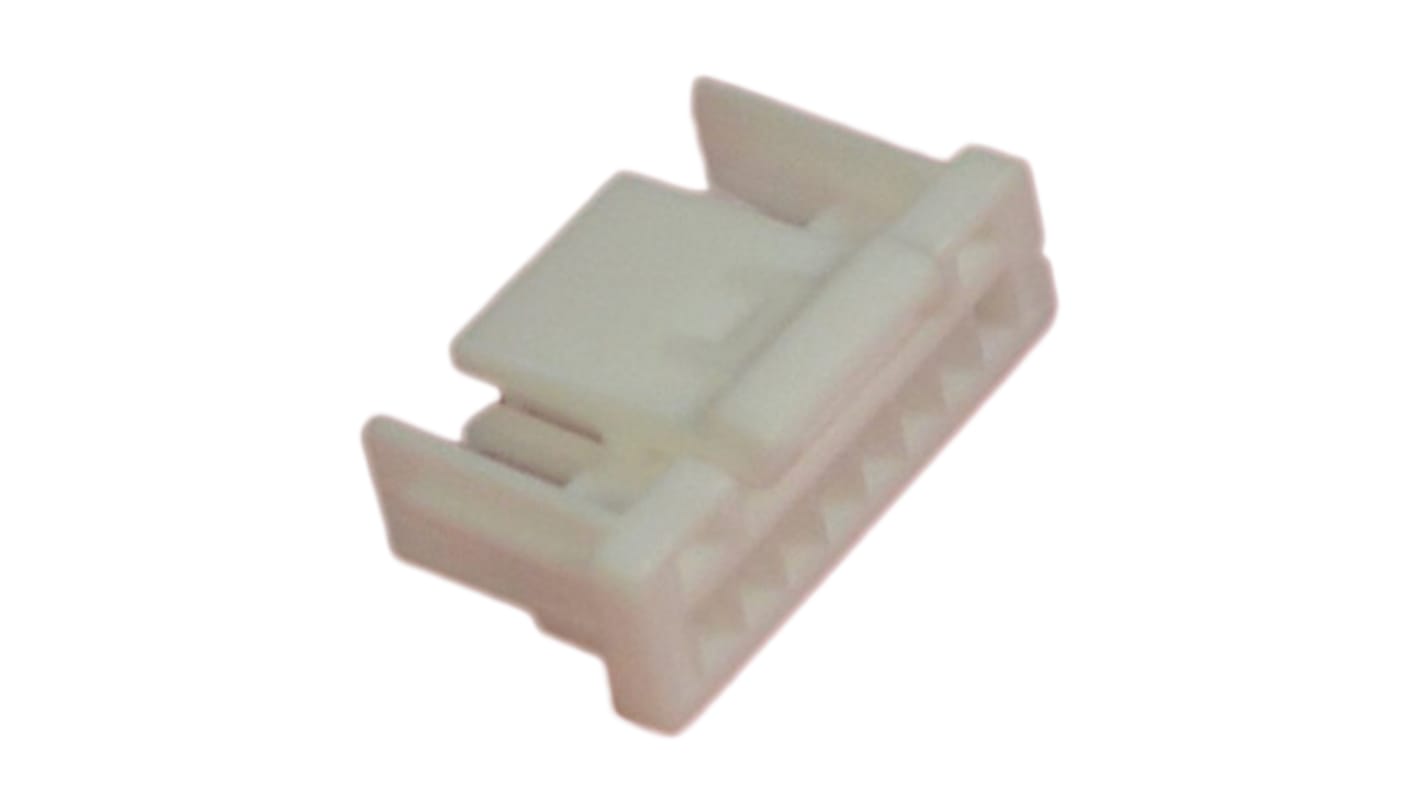

JST, NSH Female Connector Housing, 1mm Pitch, 8 Way, 1 Row
- RS Stock No.:
- 906-0051
- Distrelec Article No.:
- 304-09-581
- Mfr. Part No.:
- NSHR-08V-S
- Brand:
- JST
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.03
(exc. VAT)
£2.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 30 unit(s) shipping from 30 October 2025
- Plus 2,200 unit(s) shipping from 31 December 2025
- Plus 1,500 unit(s) shipping from 11 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.203 | £2.03 |
| 50 - 190 | £0.148 | £1.48 |
| 200 - 340 | £0.137 | £1.37 |
| 350 - 590 | £0.127 | £1.27 |
| 600 + | £0.109 | £1.09 |
*price indicative
- RS Stock No.:
- 906-0051
- Distrelec Article No.:
- 304-09-581
- Mfr. Part No.:
- NSHR-08V-S
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Number of Contacts | 8 | |
| Number of Rows | 1 | |
| Pitch | 1mm | |
| Gender | Female | |
| Mounting Type | PCB Mount | |
| Series | NSH | |
| For Use With | NSH Series Connector | |
| Body Orientation | Straight | |
| Length | 10mm | |
| Width | 4.2mm | |
| Housing Material | PBT | |
Select all | ||
|---|---|---|
Brand JST | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Pitch 1mm | ||
Gender Female | ||
Mounting Type PCB Mount | ||
Series NSH | ||
For Use With NSH Series Connector | ||
Body Orientation Straight | ||
Length 10mm | ||
Width 4.2mm | ||
Housing Material PBT | ||
- COO (Country of Origin):
- JP
JST 1.0mm NSH Wire to Board Header and Socket Connectors
NSH Series 1.0mm pitch wire-to-board PCB SMT header and cable mount socket connectors with a space saving subminiature design and a low insertion force which is achieved through the use of a specially constructed spring feature. The NSH 1.0mm connectors feature a latch locking mechanism which produces an audible click when the header and socket are mated. The NSH SMT headers have solder retention and are available with a vertical or right angle mounting configuration. The NSH crimp socket housings accept SLEH crimp socket contacts.
JST 1.0mm NSH Series Wire to Board Connectors
