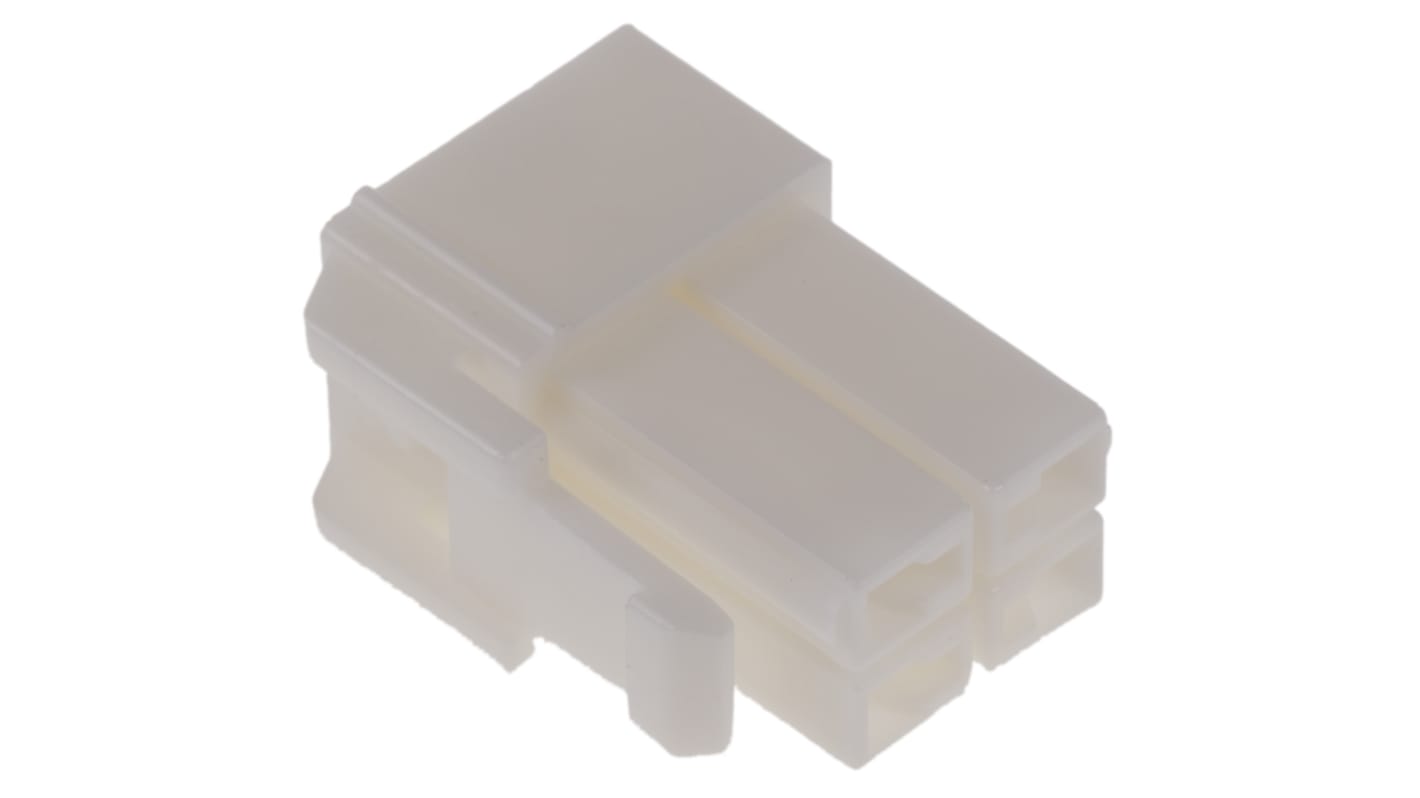

JST, HLP Male Connector Housing, 3.96mm Pitch, 4 Way, 2 Row
- RS Stock No.:
- 820-1040
- Mfr. Part No.:
- HLP-04V
- Brand:
- JST
Save 60% when you buy 2500 units
Subtotal (1 pack of 5 units)*
£1.09
(exc. VAT)
£1.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 705 unit(s) ready to ship
- Plus 135 unit(s) shipping from 08 October 2025
- Plus 500 unit(s) shipping from 21 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £0.218 | £1.09 |
| 125 - 495 | £0.108 | £0.54 |
| 500 - 1245 | £0.098 | £0.49 |
| 1250 - 2495 | £0.092 | £0.46 |
| 2500 + | £0.086 | £0.43 |
*price indicative
- RS Stock No.:
- 820-1040
- Mfr. Part No.:
- HLP-04V
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Number of Contacts | 4 | |
| Number of Rows | 2 | |
| Pitch | 3.96mm | |
| Gender | Male | |
| Mounting Type | Cable Mount | |
| Series | HLP | |
| For Use With | HL Series Crimp Style Wire-to-Wire Connector | |
| Body Orientation | Straight | |
| Length | 9.16mm | |
| Width | 14.2mm | |
| Housing Material | Polyamide | |
Select all | ||
|---|---|---|
Brand JST | ||
Number of Contacts 4 | ||
Number of Rows 2 | ||
Pitch 3.96mm | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Series HLP | ||
For Use With HL Series Crimp Style Wire-to-Wire Connector | ||
Body Orientation Straight | ||
Length 9.16mm | ||
Width 14.2mm | ||
Housing Material Polyamide | ||
HL Series Connector Housings and Retainers
3.96mm JST HL Series
The HL Wire-to-Wire and Wire-to-Board Connector range from JST features: a contact with a low insertion force , housing lance, inner-housing lock, secondary retainers and a panel lock construction.
