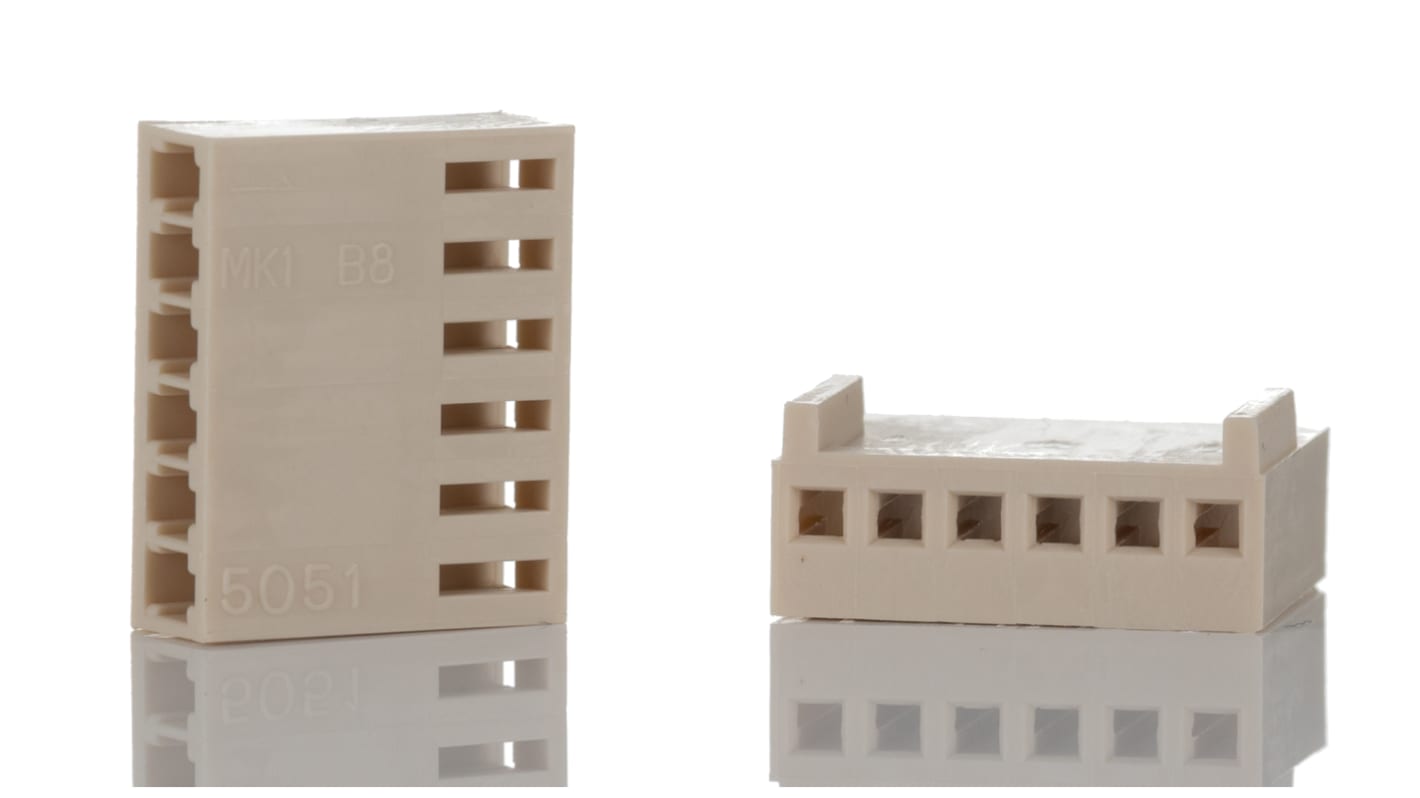

Molex, 5051 Female Connector Housing, 2.5mm Pitch, 6 Way, 1 Row
- RS Stock No.:
- 687-7910
- Mfr. Part No.:
- 22-01-1062
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 10 units)*
£3.59
(exc. VAT)
£4.31
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 2,430 left, ready to ship
- Final 960 unit(s) shipping from 30 October 2025
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 240 | £0.359 | £3.59 |
| 250 - 990 | £0.274 | £2.74 |
| 1000 - 4990 | £0.225 | £2.25 |
| 5000 - 9990 | £0.217 | £2.17 |
| 10000 + | £0.208 | £2.08 |
*price indicative
- RS Stock No.:
- 687-7910
- Mfr. Part No.:
- 22-01-1062
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 6 | |
| Number of Rows | 1 | |
| Pitch | 2.5mm | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | 5051 | |
| For Use With | KK Wire-to-Board Connector | |
| Body Orientation | Straight | |
| Length | 15.5mm | |
| Width | 6.6mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Pitch 2.5mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series 5051 | ||
For Use With KK Wire-to-Board Connector | ||
Body Orientation Straight | ||
Length 15.5mm | ||
Width 6.6mm | ||
Housing Material Nylon | ||
KK Housings, 5051 Series for 2759 Series Terminals
Molex Connector Housing, 20mΩ Maximum Contact Resistance, 250V AC/DC Rated Voltage - 5051 Series - 22-01-1062
Need a nifty way to make multiple connections on your circuit board? Choose this connector housing from Molex. It has six contacts that accept crimped terminals or a 6-way header to make wiring a breeze. With compact dimensions of 12.7 (D) x 15.5 (L) x 6.6mm (H), the unit's a handy choice for tight spots. You can solder it directly onto a PCB to keep connections strong and stable.
Features & Benefits
• Nylon body resists corrosion in humid conditions
• Low 775.1mg weight adds minimal strain to a PCB
• Withstands heat up to +105°C for up to 96 hours to suit high-temperature applications
• Pitch of 2.5mm to save space
• Low 775.1mg weight adds minimal strain to a PCB
• Withstands heat up to +105°C for up to 96 hours to suit high-temperature applications
• Pitch of 2.5mm to save space
Applications
• Electronic device design
• Research and development labs
• Signalling systems
• Research and development labs
• Signalling systems
What header does this unit mate with?
This housing mates securely with a 6-way 5045-series straight header from Molex (687-7229).
