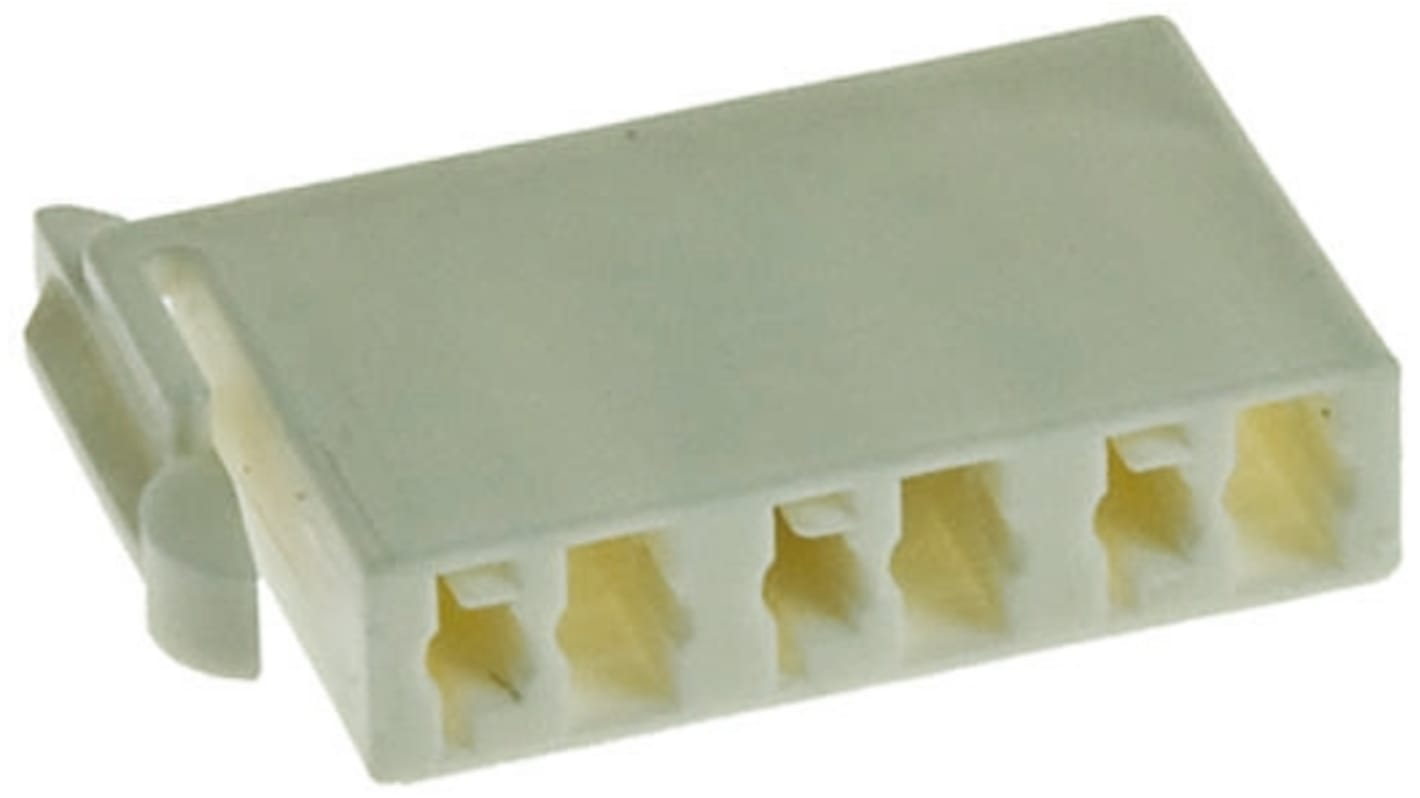

TE Connectivity, Hermaphroditic Female Connector Housing, 4mm Pitch, 6 Way, 1 Row

View all Wire Housings & Plugs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Packaging Options:
RS Stock No.:
686-0902
Mfr. Part No.:
2058299-3
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Number of Contacts

6

Number of Rows

1

Pitch

4mm

Gender

Female

Series

Hermaphroditic

For Use With

Wire-to-Board Hermaphroditic Blade & Receptacle

Body Orientation

Straight

Length

28.4mm

Width

6.35mm

Housing Material

Polyamide

COO (Country of Origin):
US

Housings


For suitable blade contact see stock no. 686-0921, for socket contact see stock no. 686-0928


TE Connectivity Hermaphroditic Blade and Receptacle Connectors


The Hermaphoroditic Blade and Receptacle Connector is an SMT connector, intended for use with in-line board-to-board applications. Applications include: LED lighting controls, LED lighting strips, channel lettering


Connector mates to itself
Single part to be stocked and placed onto PCB per position
Connector mates and unmates horizontally and vertically
Connector can be articulated from 90° to 180°
Low profile flat surface is compatible with SMT and reflow processing
Rounded corners to minimize shadowing
Redundant SMT pads
Solder pad footprint compatible with Tyco Electronics SMT Poke-In LED connector
