JST, XA Female Connector Housing, 2.5mm Pitch, 10 Way, 1 Row
- RS Stock No.:
- 602-8559
- Mfr. Part No.:
- XAP-10V-1
- Brand:
- JST
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.51
(exc. VAT)
£3.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 390 unit(s) ready to ship
- Plus 120 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 240 | £0.251 | £2.51 |
| 250 - 990 | £0.129 | £1.29 |
| 1000 - 4990 | £0.122 | £1.22 |
| 5000 - 9990 | £0.118 | £1.18 |
| 10000 + | £0.114 | £1.14 |
*price indicative
- RS Stock No.:
- 602-8559
- Mfr. Part No.:
- XAP-10V-1
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Number of Contacts | 10 | |
| Number of Rows | 1 | |
| Pitch | 2.5mm | |
| Gender | Female | |
| Series | XA | |
| For Use With | Disconnectable Crimp Connector | |
| Body Orientation | Straight | |
| Length | 27.3mm | |
| Width | 6.9mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand JST | ||
Number of Contacts 10 | ||
Number of Rows 1 | ||
Pitch 2.5mm | ||
Gender Female | ||
Series XA | ||
For Use With Disconnectable Crimp Connector | ||
Body Orientation Straight | ||
Length 27.3mm | ||
Width 6.9mm | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- JP
XA Series Crimp Connector Housing, Standard Type
Standard type housings for the JST XA series of 2.5mm pitch wire-to-board connectors. The housings are available in 2 to 20 way formats. For suitable crimp contacts see 123-5951.
Features & Benefits
• Secure locking device prevents accidental disconnection
• Housing material glass-filled PA66 nylon
• Housing material glass-filled PA66 nylon
2.5mm Wire-to-Board Connector, JST XA Series

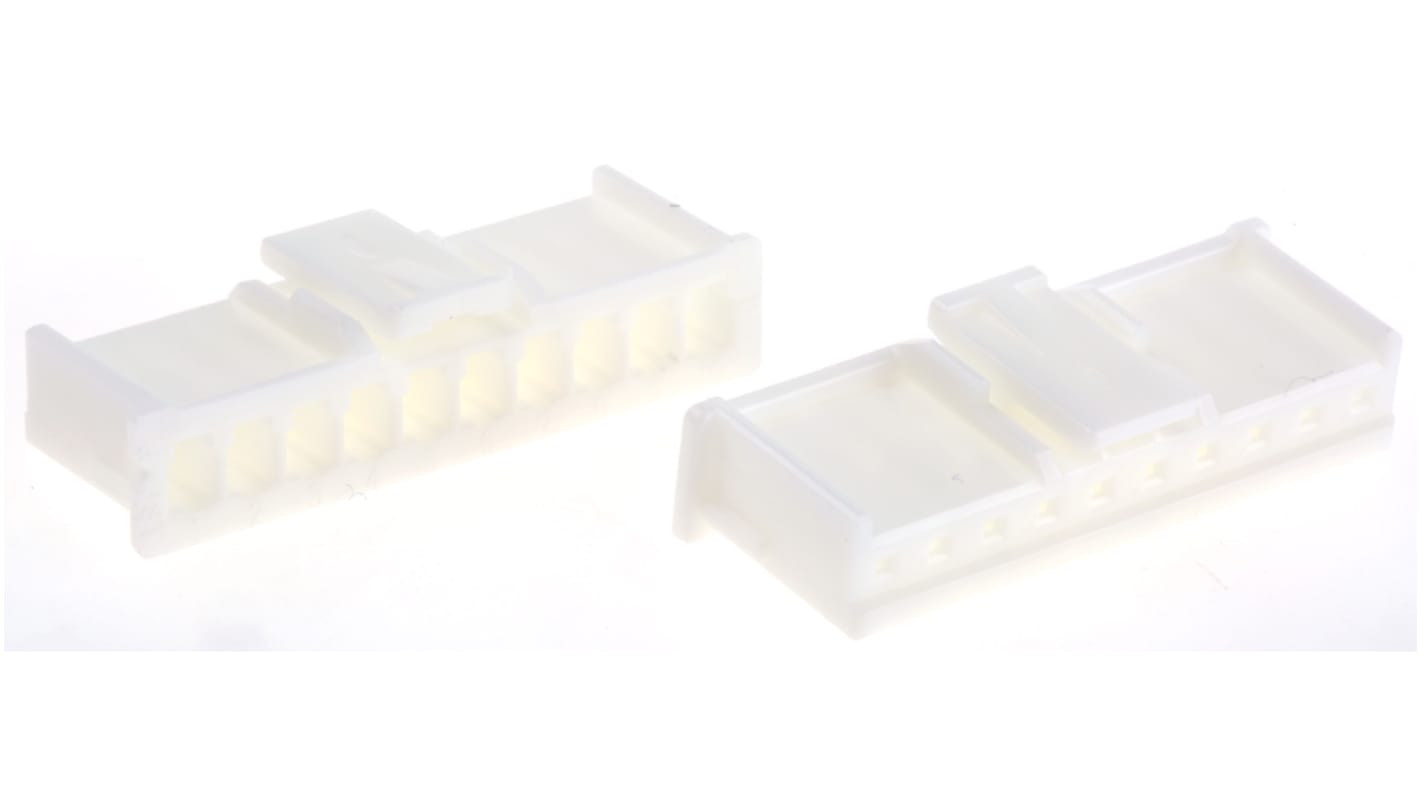

Please note- the colour of the picture displayed above is for reference only.
