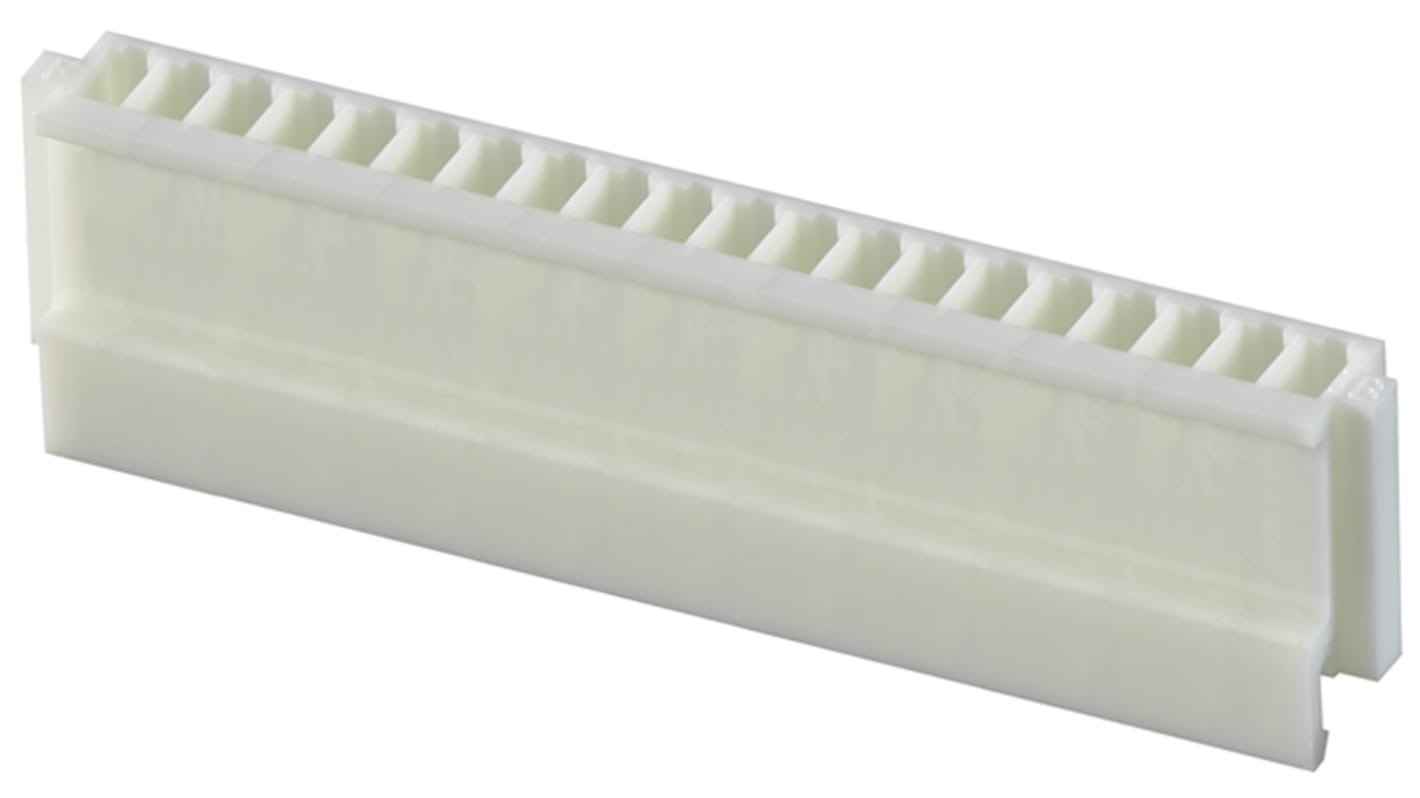

JST, NH Female Connector Housing, 2.5mm Pitch, 20 Way, 1 Row
- RS Stock No.:
- 490-5707
- Mfr. Part No.:
- H20P-SHF-AA
- Brand:
- JST
Bulk discount available
Subtotal (1 pack of 10 units)*
£6.74
(exc. VAT)
£8.09
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.674 | £6.74 |
| 100 - 490 | £0.588 | £5.88 |
| 500 - 2490 | £0.574 | £5.74 |
| 2500 - 4990 | £0.532 | £5.32 |
| 5000 + | £0.52 | £5.20 |
*price indicative
- RS Stock No.:
- 490-5707
- Mfr. Part No.:
- H20P-SHF-AA
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Number of Contacts | 20 | |
| Number of Rows | 1 | |
| Pitch | 2.5mm | |
| Gender | Female | |
| Series | NH | |
| For Use With | Disconnectable Crimp Connector | |
| Body Orientation | Straight | |
| Length | 53.7mm | |
| Width | 6.4mm | |
| Housing Material | Nylon | |
| Select all | ||
|---|---|---|
Brand JST | ||
Number of Contacts 20 | ||
Number of Rows 1 | ||
Pitch 2.5mm | ||
Gender Female | ||
Series NH | ||
For Use With Disconnectable Crimp Connector | ||
Body Orientation Straight | ||
Length 53.7mm | ||
Width 6.4mm | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- JP
JST NH Series Socket Housing
The NH Series of 2.5mm pitch socket housing from JST is used to connect wires to printed boards. Three different header configurations are available: top, side and bottom entry depending upon your requirements.
Features and Benefits
• 2.5mm pitch
• Natural (white) colour
• Wire to board configurations and fittings
• Highly reliable
• Double sided contact to protect against mismating
• Superior folded beam construction
• Natural (white) colour
• Wire to board configurations and fittings
• Highly reliable
• Double sided contact to protect against mismating
• Superior folded beam construction
2.5mm Wire to Board, JST NH Series
